5-24
ArmadaStation Removal and Replacement Procedures
5. Place the drive cage over the half-height MultiBay adapter. Align the front of the
adapter with the tab on the front of the drive cage (Figure 5-23).

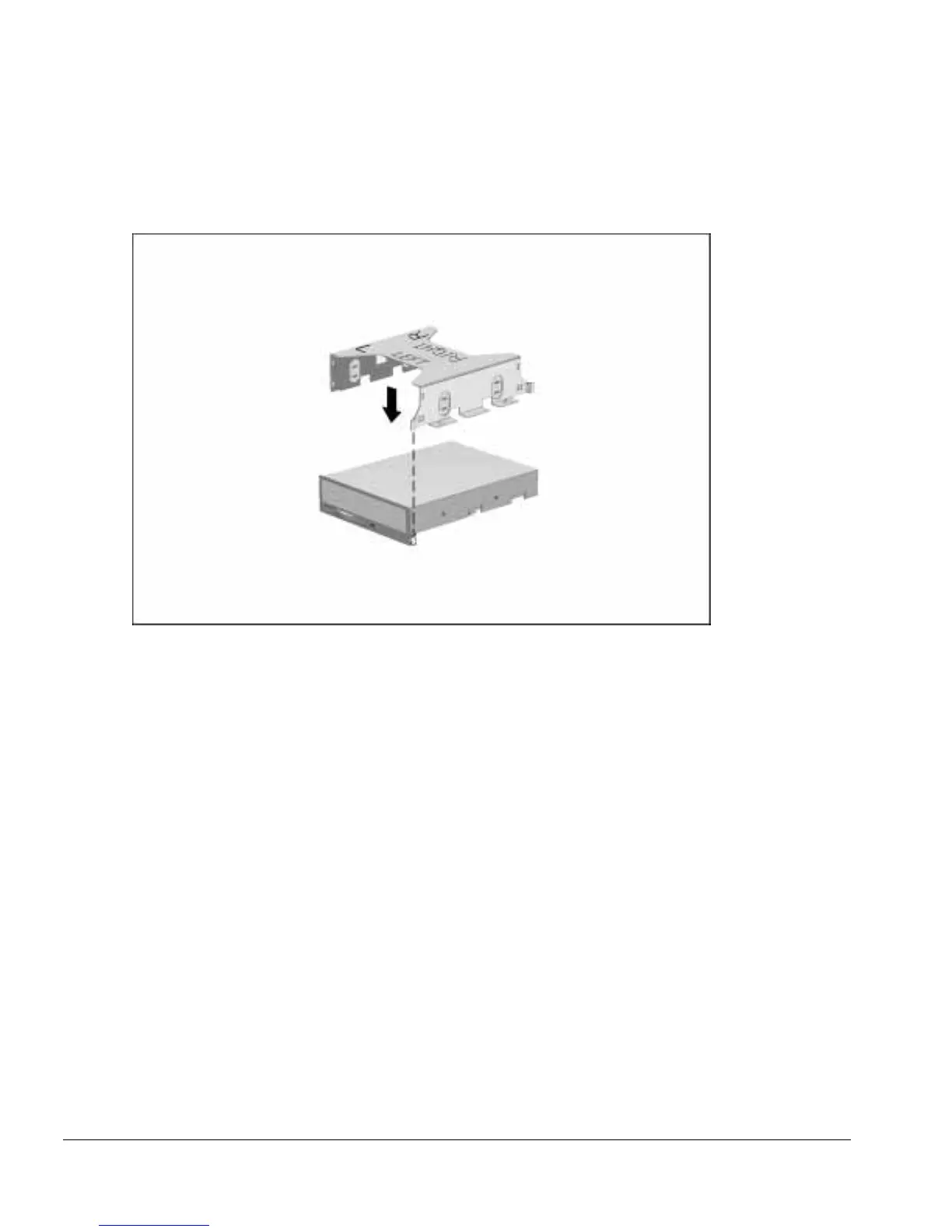

Figure 5-23.
Aligning the Half-Height MultiBay Adapter with the Drive Cage
