Rack-Mountable Server Installation
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Preparing the Mounting Brackets
and Slide Rail Assemblies
Each pair of mounting brackets, with attached slide rail assemblies, supports
one rack-mountable server.

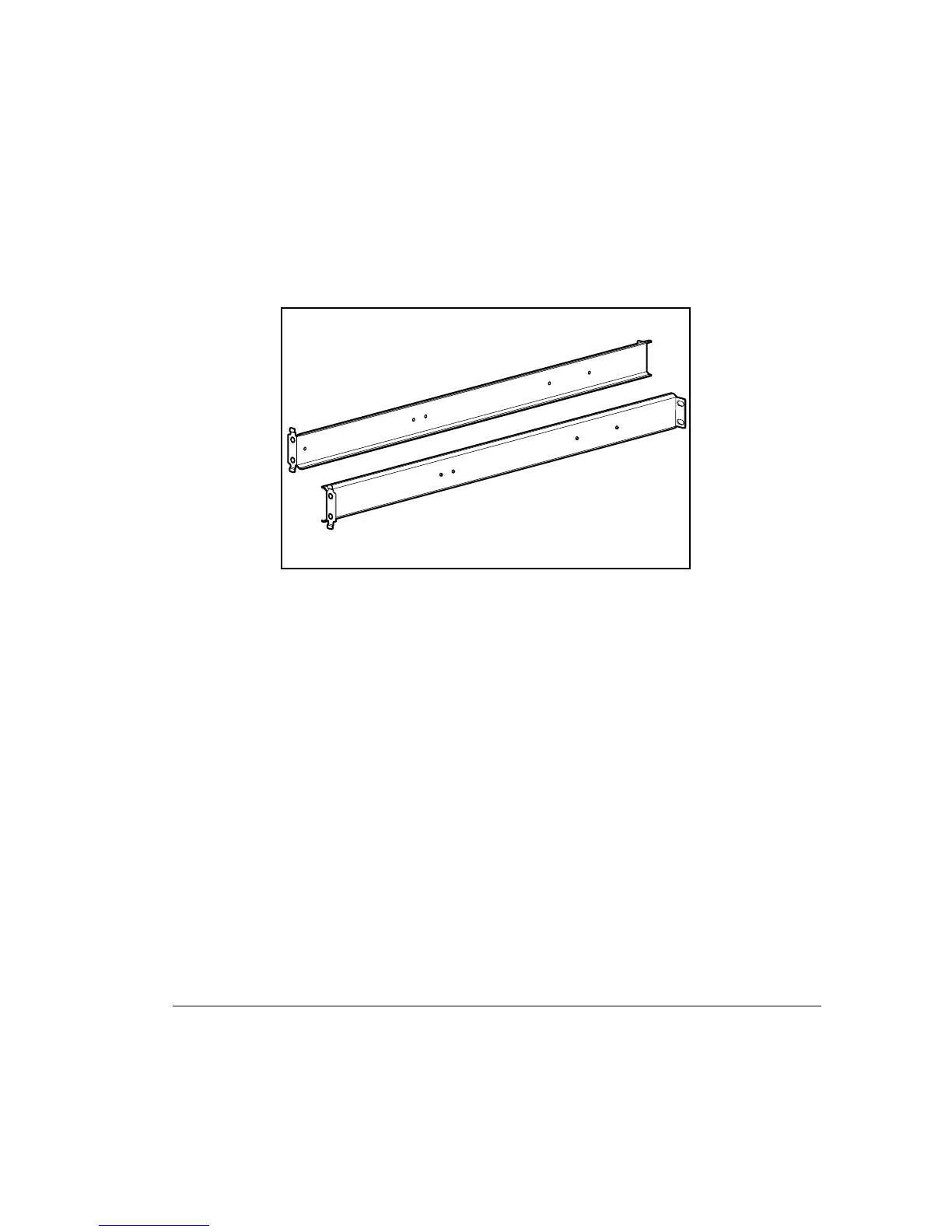

Figure 3-2. Rack mounting brackets; alignment tabs identify the front flanges
Each slide rail assembly consists of an outer bracket rail and an inner
component rail (see Figure 3-3). These pieces can be separated; the bracket rails
attach to the rack mounting brackets (shown in Figure 3-2), and the component
rails attach to the sides of the server chassis.
