Installing DIMM Memory
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Install DIMMs as shown in Figure 4-5. For information on populating
memory sockets, see the following section titled “Memory Sockets.”

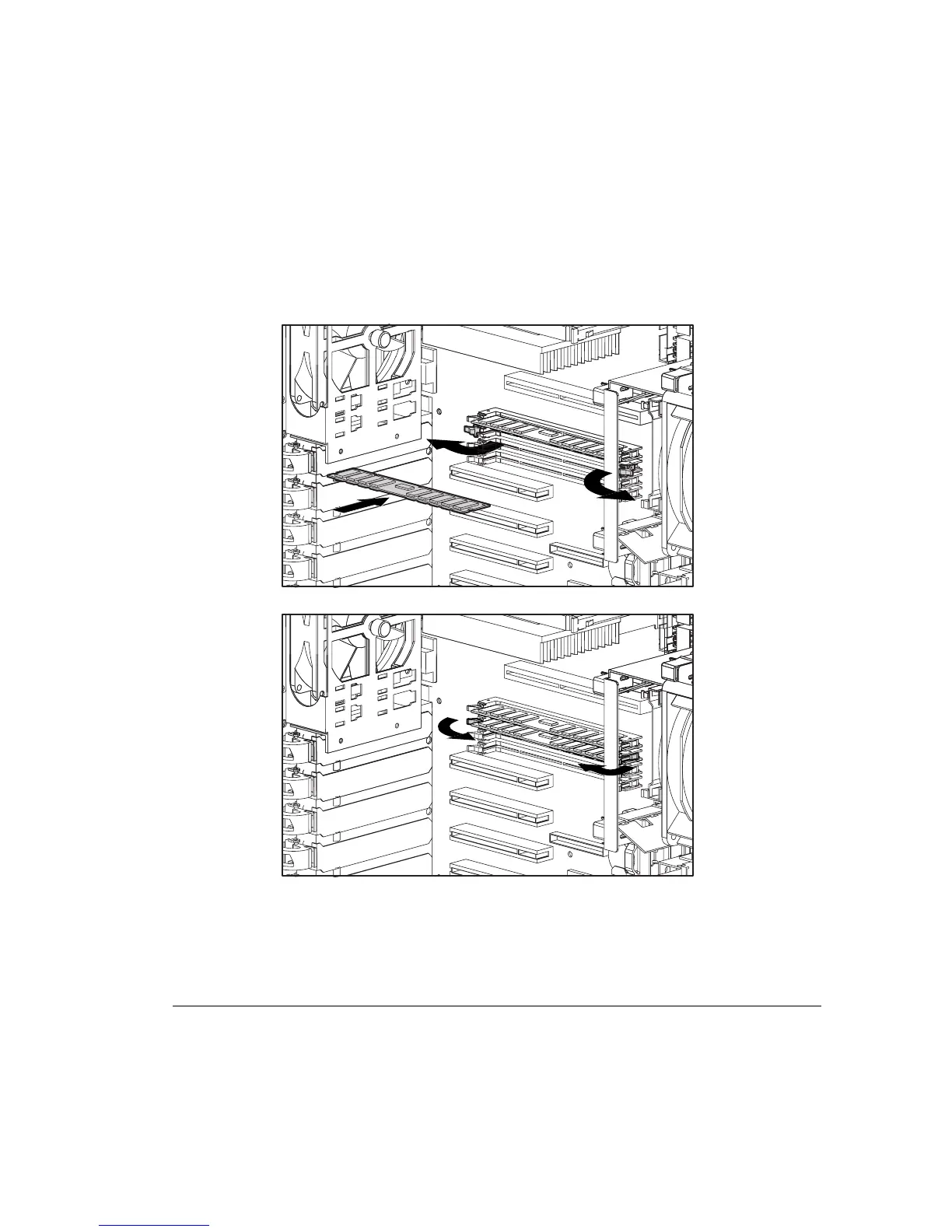

Figure 4-5. Latching DIMMs
3. Restore server to normal operation. Reverse steps in section, "Preparing
the Server."
