Installing Fans
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Install fan as shown in Figure 4-8. Refer to Figures 4-9 and 4-10 for fan
slot location and fan header location.
1

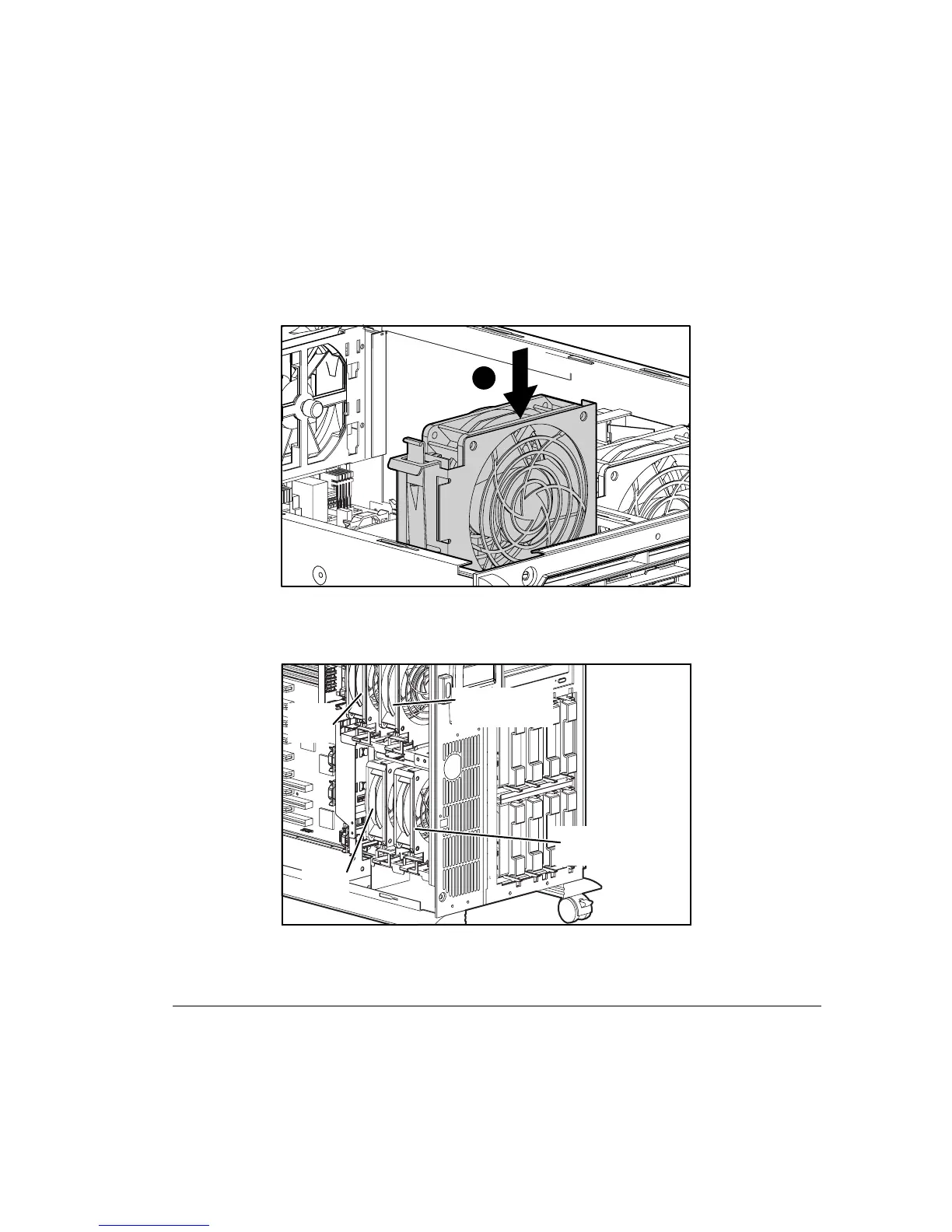

Figure 4-8. Installing fan
3. Restore server to normal operation. Reverse steps in section "Preparing
the Server."
Fan 2
(CPU Redundant)
Fan 4
(I/O Redundant)
Fan 1
(CPU)
Fan 3
(I/O)
Figure 4-9. Fan slot location
