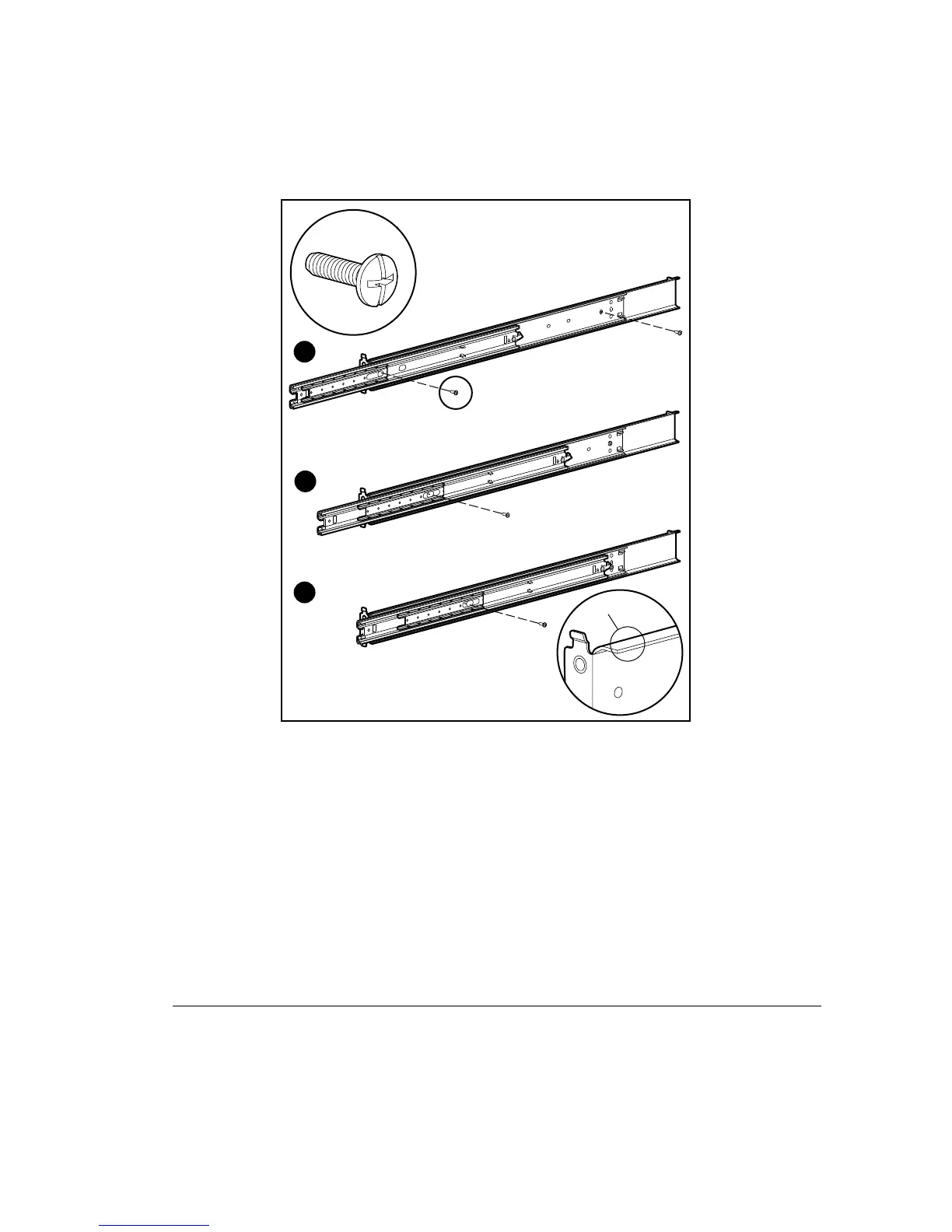

Figure 3-7. Attaching the bracket rail to the mounting bracket
You will use a total of four 8-32 x 1/4-inch slotted screws to fasten the
bracket rail to the mounting bracket. When all five screws are fastened,
the mounting bracket and bracket rail form a mounting bracket slide
assembly that you will attach to the rack.
8. Repeat steps 4 through 7 with the other bracket rail and mounting
bracket. You now have a pair of mounting bracket slide assemblies to be
attached to the rack.
