4. Insert the Simplex Enable board.

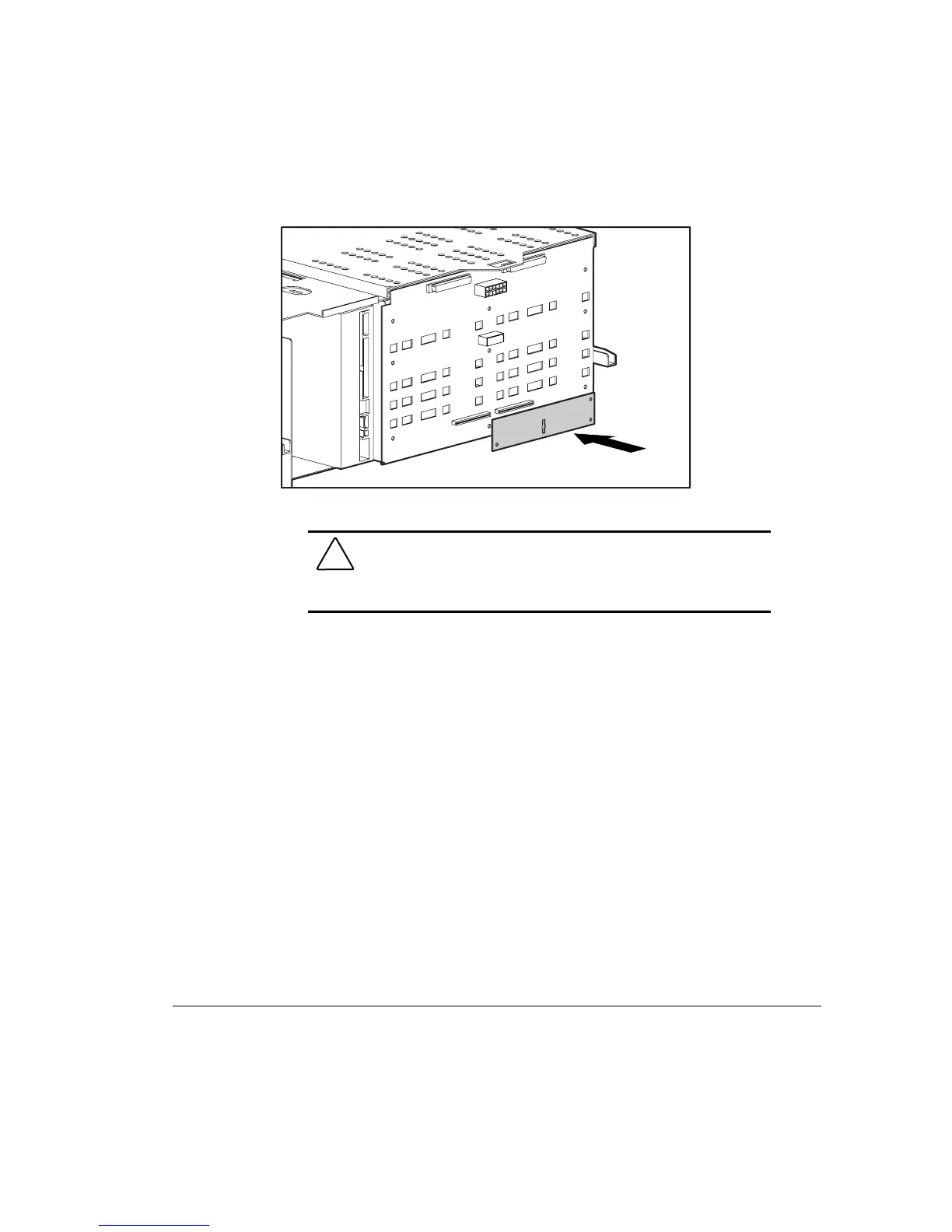

Figure 4-14. Installing the Simplex Enable board
CAUTION:
The SCSI backplane board must have either a Duplex
Enable board or a Simplex Enable board installed in order for the
SCSI bus to be terminated properly. If neither of these boards is
installed, the service LEDs of all drives will light as a warning.
5. Install drive cage. See section “Installing Drive Cage.”
