Conair Carousel Plus D Series - Installing the Regeneration Exhaust Cover; P O S I T I O N I N G T H E D R y E R O N T H E F L O O R; Positioning the Dryer on the Floor; R E M O V I N G T H E C a B L E T I E F R O M T H E D E S I C C a N T W H E E L

To Next Page

To Previous Page

3-4 l Installation

Positioning the Dryer on the Floor

1 Lift the dryer from the shipping container using a fork truck.

2 Position the dryer on the floor near the hopper or ResinWorks sled. Make sure the loca-

tion allows for the connection of all hoses, keeping hose lengths as short as possible.

Removing the Cable Tie from the Des-

iccant Wheel

(D600-1000 models)

1 Open the dryer side panels and remove the cable tie(s) securing the desiccant wheel,

if it was not done while unpacking the dryer. Depending upon which size dryer you have,

there may be several cable ties.

Installing the Regeneration Exhaust

Cover

The Carousel Plus D Series Dryer’s regeneration exhaust cover must be installed.

To install the regeneration exhaust cover:

1 Remove the exhaust cover that is attached to the dryer’s shipping pallet.

2 Locate the bolt pattern at the top of the dryer, on top of the regeneration exhaust out-

let.

3 Position the regeneration exhaust cover on top of the regeneration exhaust outlet,

aligning both bolt patterns.

4 Secure the regeneration exhaust cover with supplied hardware, using an appropri-

ately sized wrench.

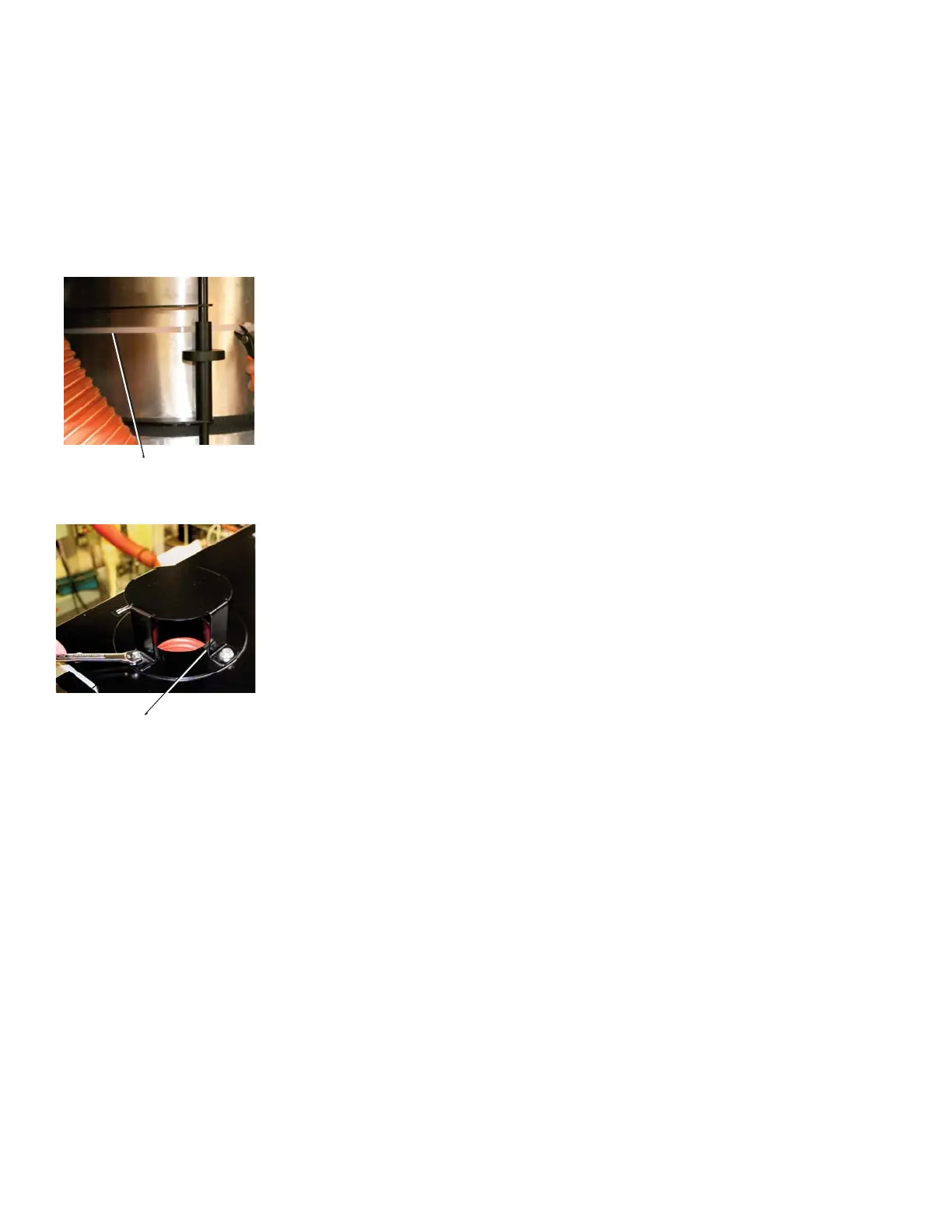

Desiccant Cable Tie

Regeneration Exhaust

Cover
