Installation
Connecting the Main Power
CAUTION: Always disconnect and lock out the main power sources before making electrical
connections. Electrical connections should be made only by qualified personnel.
1 Open the dryer’s electrical enclosure. Turn the disconnect dial on the dryer door to the
Off or “O” position. Lock out the main power. See Introduction: How to Use the Lockout
Device for complete lock out information. Turn the captive screw, and swing the door
open.
2
Insert the main power
wire through the knockout in the side of the enclosure. Secure
the wire with an appropriate strain relief.
IMPORTANT: Always refer to the
wiring diagrams that came with your
dryer before making electrical con-
nections.
3

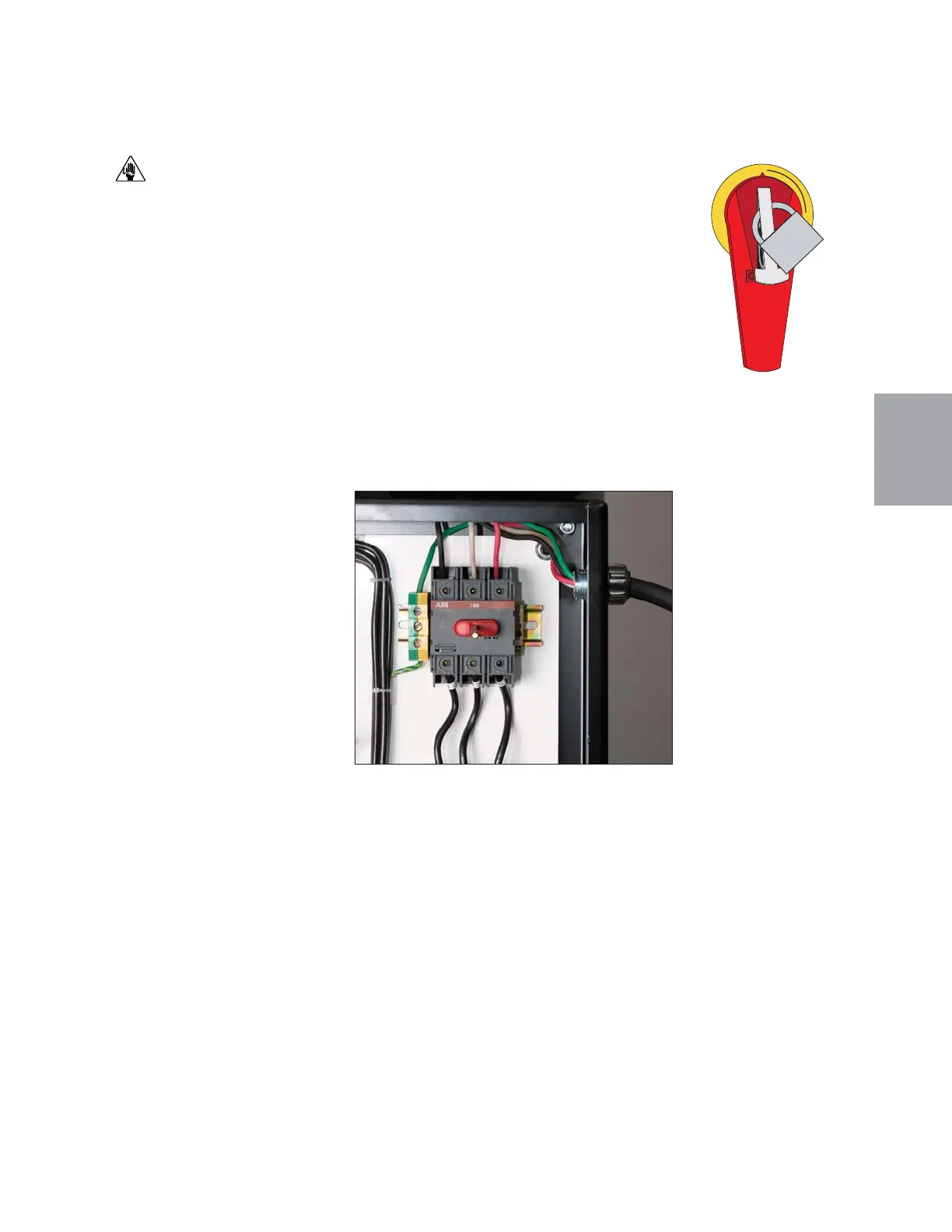

Connect the power wires
to the three terminals at the top of the power disconnect holder.
4 Connect the ground wire to the ground lug as shown in the photo.
0
NOTE: Models D600-5000
configured with process
heat and a Heater Pack at
the hopper will require
conduit from the control
panel to the Heater Pack.
See the Appendix, in this
User Guide for more in-
formation about proper
conduit and cable size for
your application.
Installation l 3-7
0
NOTE: Wiring between
process air heater, Heater
Pack, and dryer where con-
trol for this heater is lo-
cated is not included.
Maximum working distance
is 100 feet {30 meters}.
Consult Conair or a quali-
fied electrician to deter-
mine gauge of wire
required for distance.
