Conair Carousel Plus D Series - Connecting the Air Hoses to Resinworks

3-10 l Installation
Connecting the Air Hoses to a Resin-
Works
Using the two flexible hoses provided, connect the delivery air and return air manifolds
of the ResinWorks to the dryer. Make sure the dryer is located as close as possible to the
sleds (10 ft {3.05 m} of hose supplied).

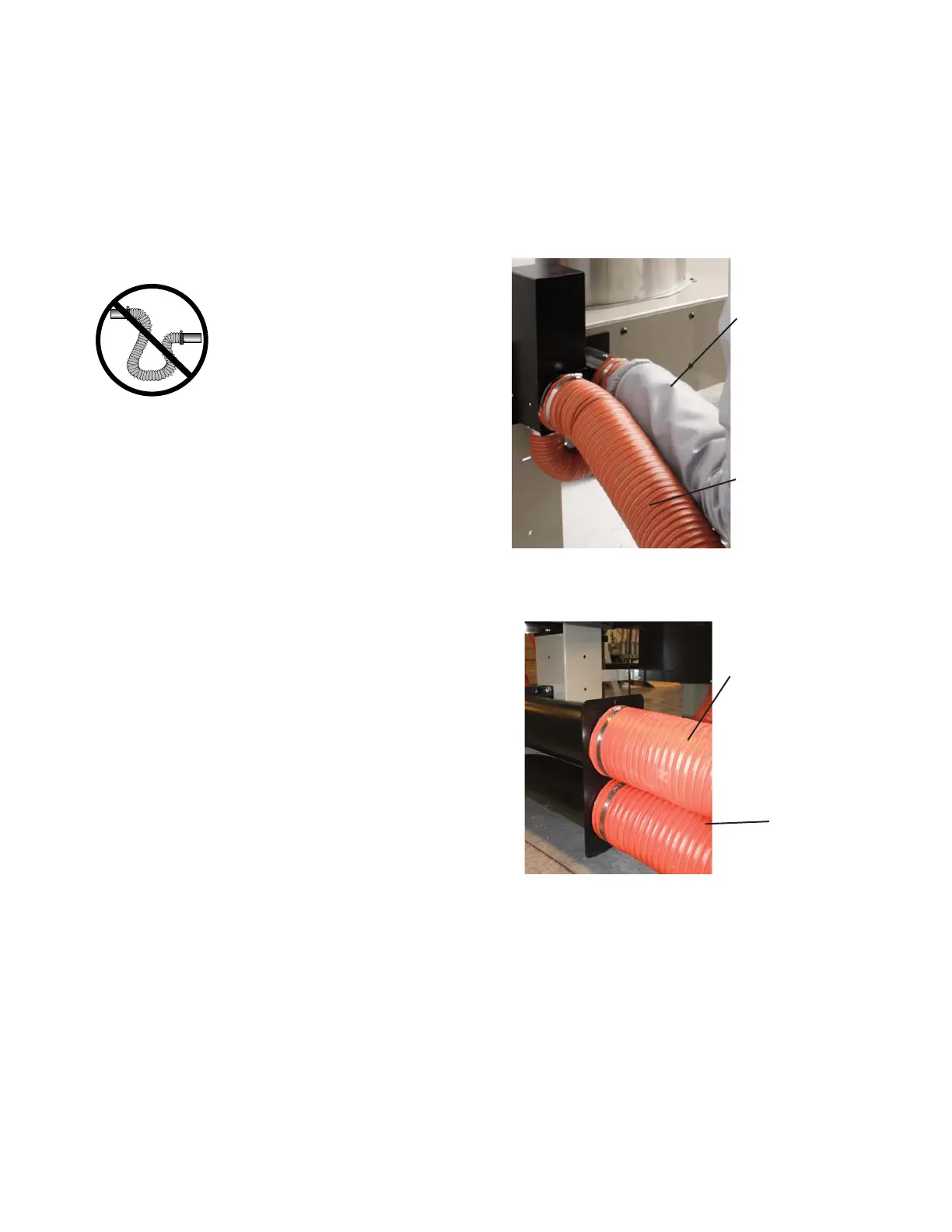

1 Attach one hose from the
return air inlet of the dryer to
the return air manifold of the
ResinWorks.
2 Attach one hose from the
delivery air outlet of the dryer
to the delivery air manifold of
the ResinWorks.
3 Secure hoses with clamps. The
hose clamp should be secured at
least 1/4 in. {0.64 cm} from the
end of the inlet or outlet tube.
Insulated hose shown not standard.
Return
Air
Dry
Delivery
Air
Return
Air
Dry
Delivery
Air
NOTE: Do not allow the
flexible hoses to kink or
crimp.
