3-12 l Installation
Connecting Air Hose Adapters
Depending on the hopper you purchased you may need to install an air hose adapter to con-
nect the hopper to your dryer.

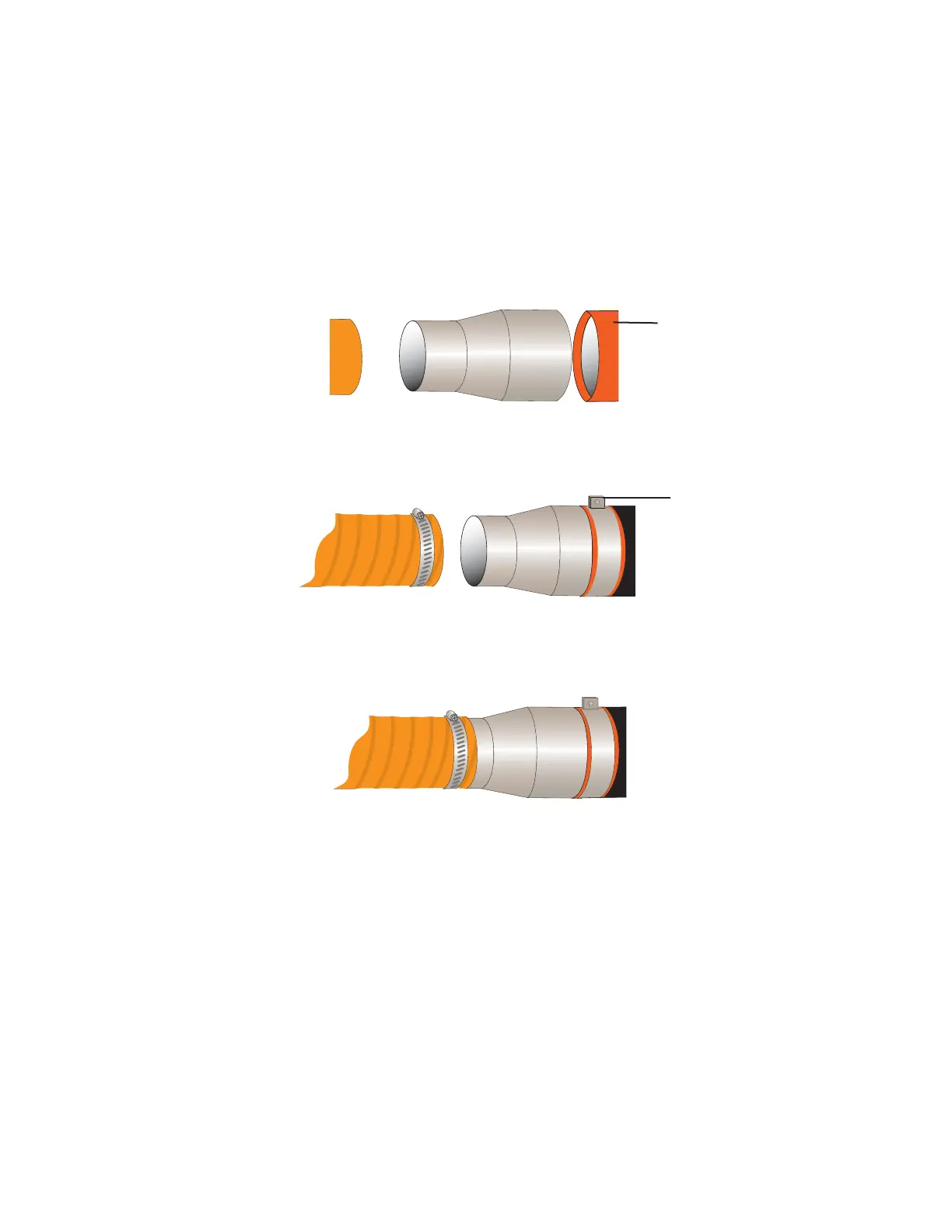

To connect the air hose adapter:
1 Place a high temperature gasket approximately half way down from the
end of the dry air delivery outlet.
2 Place hose adapter inside high temperature gasket flush to the dryer outlet, secure
with pressure clamp.
3 Attach the hopper inlet hose over the adapter, secure with clamp.
Dryer Inlet/Outlet
Connection
Pressure Clamp
NOTE: Adapters should be
located as close to the hop-
per as possible, and main-
tain the largest line size
possible for the longest dis-
tance.
