3-14 l Installation
Connecting the Aftercooler and
Optional Precooler
(D1300 - 5000)
The aftercooler and/or optional precooler require a source of city, tower, or chiller water
and a discharge or return line. You can use water at temperatures of 45 to 85°F {7 to
29°C}.

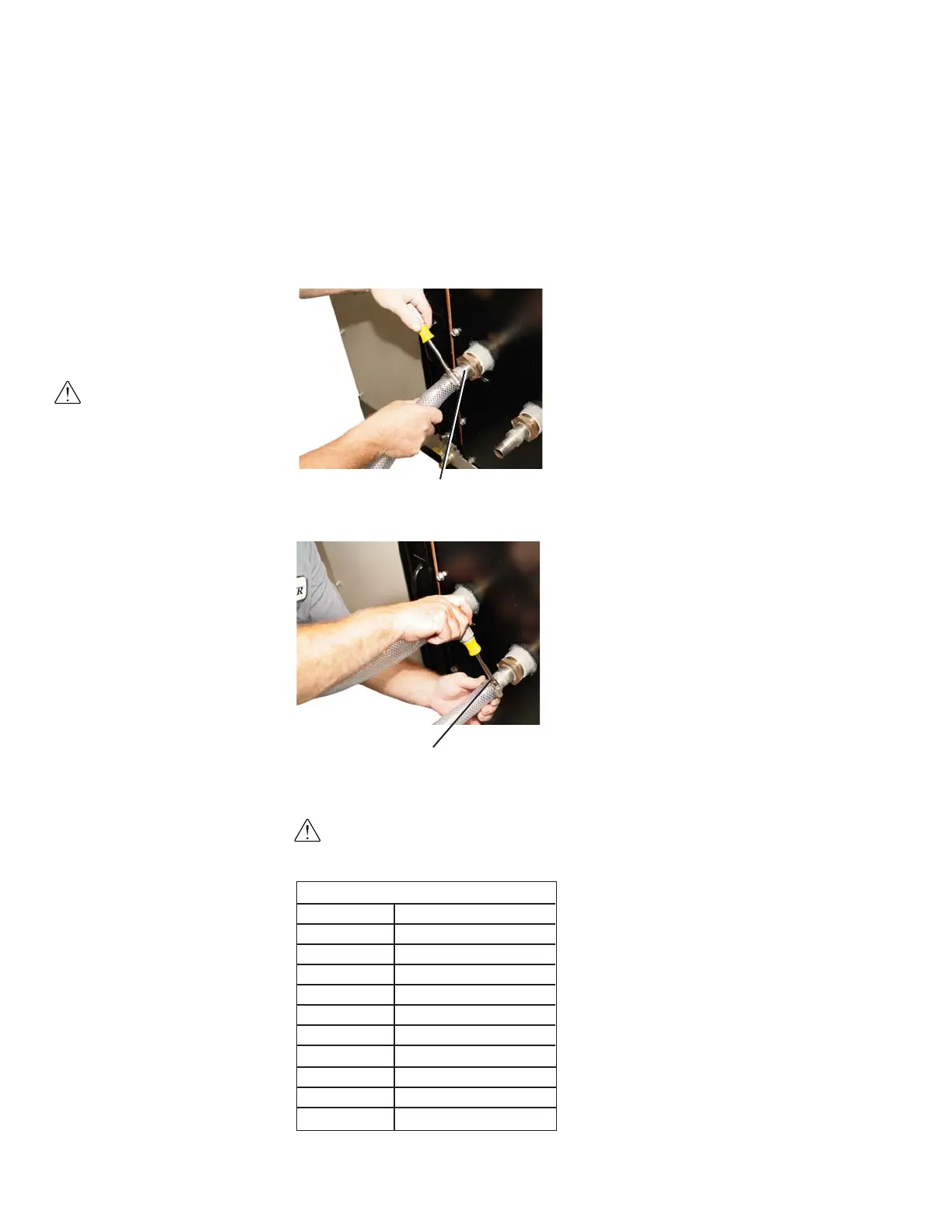

1 Connect the water supply line to
the aftercooler or precooler inlet.
If a manual shut off valve is used,
it should be mounted on the inlet
line. Conair recommends that a
manual shut off valve be used on both
the supply and return lines.
2 Connect the water discharge or
return line to the aftercooler
or precooler outlet.
IMPORTANT: Turn the water off when the dryer is not in use to prevent condensation.
aftercooler inlet
aftercooler outlet
2
TIP: Make the water supply and
discharge / return connections
with flexible hoses at least 24 in.
(61 cm) long. This allows you to
easily remove the aftercooler as-
sembly for cleaning.
Recommended Water Flow Rates
Dryer Model gal./min. {liters/min.}
600 15 {56.8}
800 15 {56.8}
1000 20 {75.7}
1300 25 {94.6}
1600 25 {94.6}
2000 25 {94.6}
2400 25 {94.6}
3200 30 {113.6}
4000 30 {113.6}
5000 30 {113.6}
IMPORTANT: If an optional flow con-
trol is also being installed with the
aftercooler, the manual shut off
valve should be installed on the
inlet line for the flow control.
