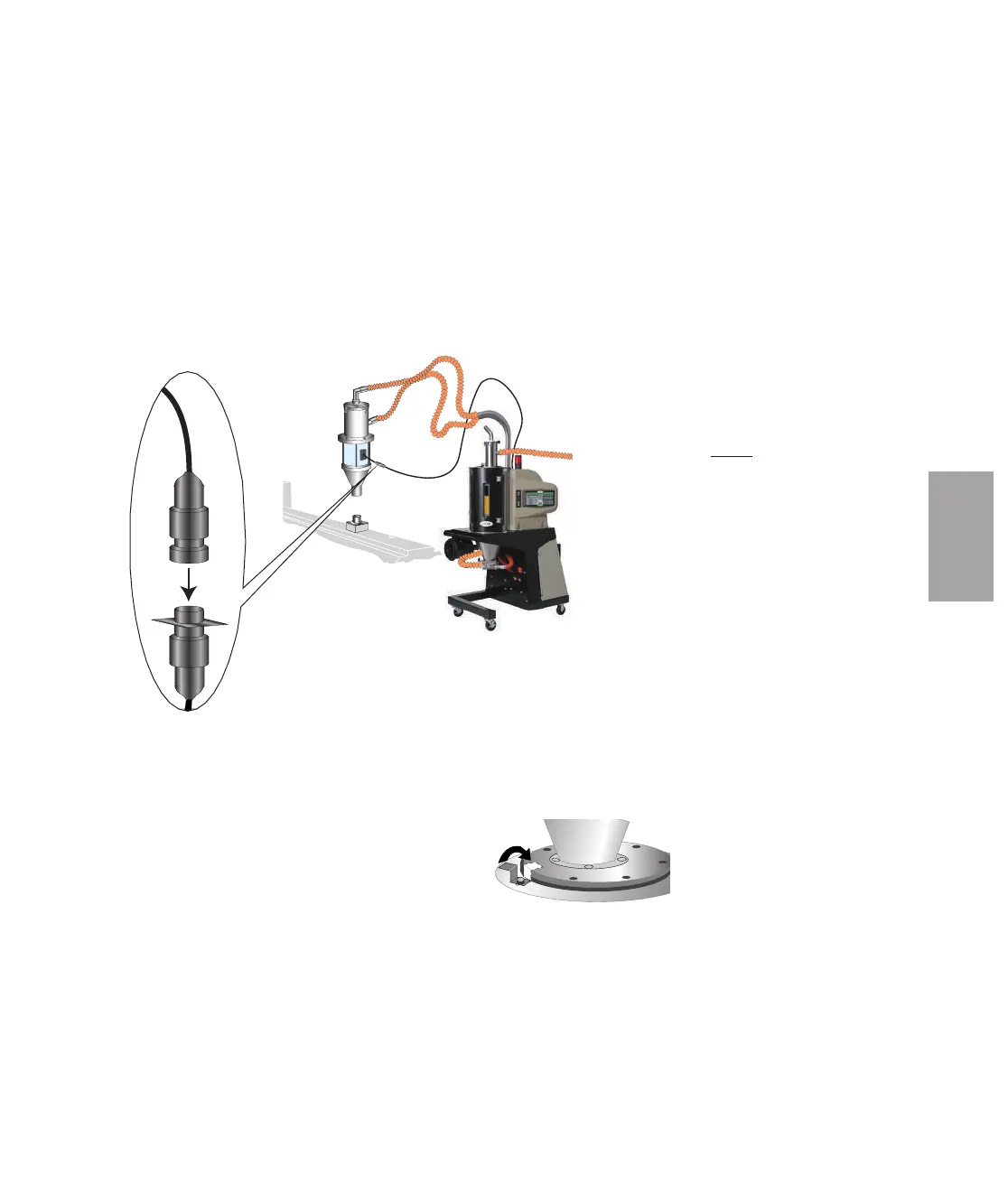

Connecting the Demand Sensor
The capacitive demand sensor monitors the level of material in the viewing cham-
ber of the vacuum receiver when the MDCW is conveying. The sensor signals the
MDCW control to start the conveying blower whenever the level of material drops
below the amount that you want to maintain at the feed throat.
1 Plug the sensor cable into the multi-pin connector on the side of the MDCW
frame.
Mounting a Loader on the Hopper
If you have a Conair loader or vacuum receiver, you can
use the flange and mounting clips provided on the top of
the hopper. Refer to the manuals that came with your
receiver or loader for detailed installation instructions.
✒
TIP: Prevent damage to the
demand sensor cable by
attaching it to the return air
conveying line with a wire tie.
Do not
tie the cable to the
smaller-diameter material
conveying line. Material
passing through the line will
generate static electricity and
noise in nearby electrical
cables.
3
Installa tion
IMPORTANT: Check to ensure that all
material conveying hoses are placed
away from the control panel. Static elec-
tricity can damage the control circuit.
