6-30 l Trou ble sh oo ti ng
Replacing the Heaters
Regeneration Heater Tube
NOTE: It is not necessary to remove the plastic cover to perform this procedure.

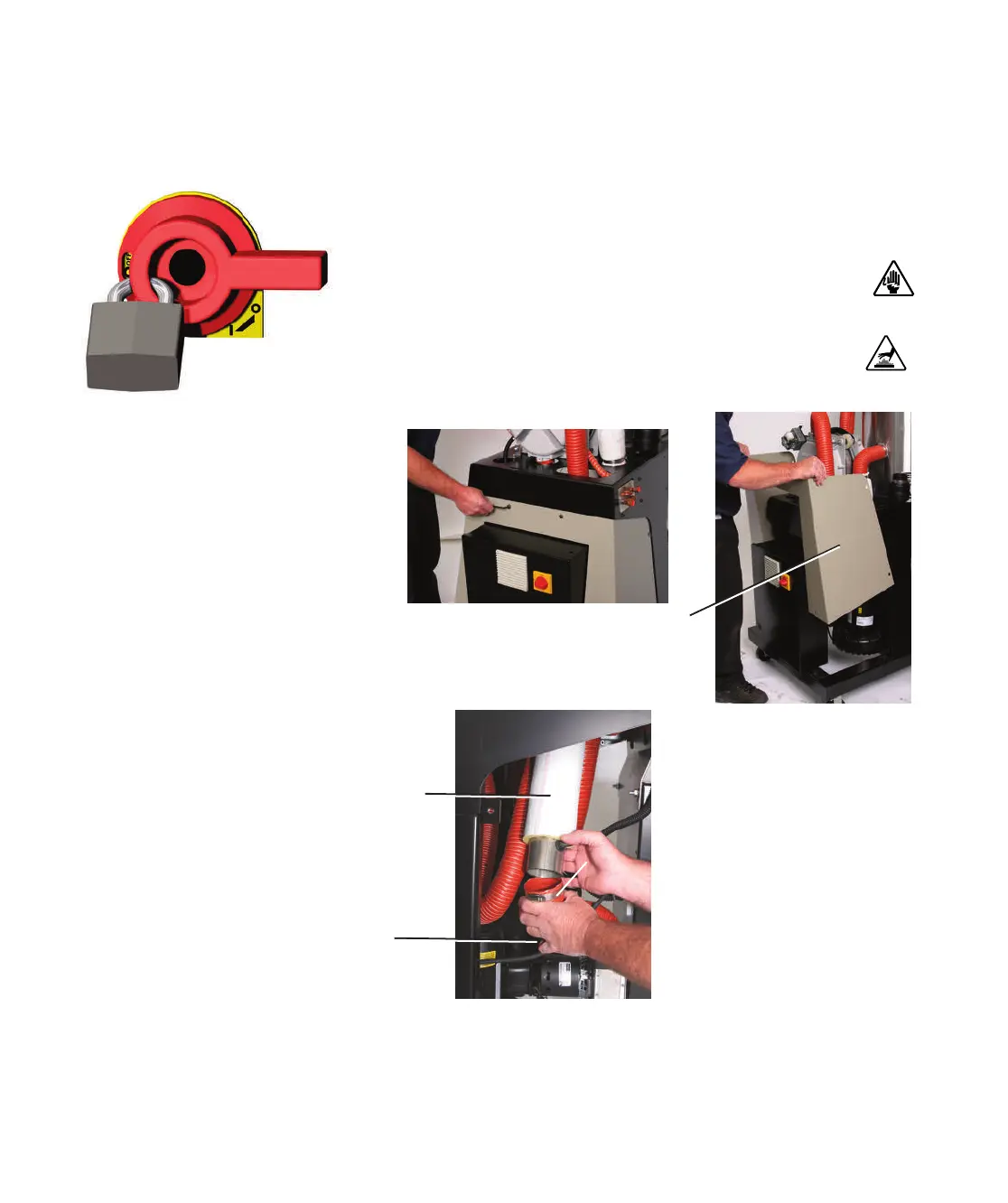

1 Stop the dryer, disconnect the power, and follow proper lockout
procedures.
2 Remove the hardware securing the metal cover that surrounds
the control cabinet. Remove the control cabinet cover.
3 Working from the front of the
machine, locate the regenera-
tion heater tube.
4 Disconnect the heater wiring
harnesses at the quick discon-
nects.
5 Loosen the hose clamps at the
top and bottom of the heater
tube and remove the heater tube
from the dryer.
Control Cabinet
Cover
Insulation
Wires
Clamp
(continued)
✐
To Next Page
