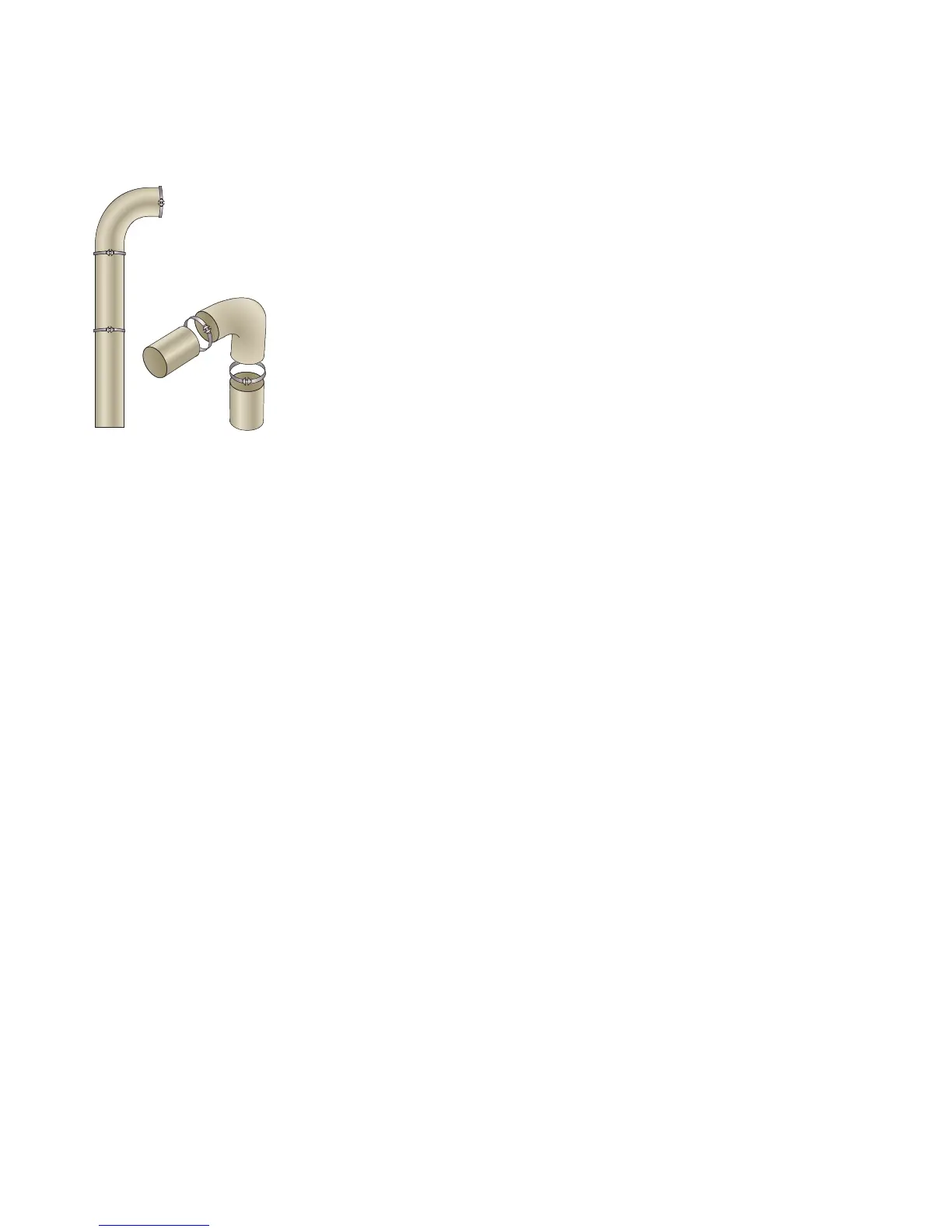

U np a ck i ng t he bo x es
Your hard piping kit components will vary depending on which kit you ordered. Kits are
often customized for each customer.
If your hard pipe kit was ordered as one of the standard kits, below is what you should
expect to find when you unpack the boxes.
Conair Part #18090001: 8 inch Hard Pipe Basic Kit
❒ Seven (7) 8 inch 1D 90, 16 GA, coated CS (PN 2671310201)
❒ Two (2) welded tube, 8 inch x 78 inch, coated CS, 19 GA (PN 2671291001)
❒ Five (5) welded tube, 8 inch x 39 inch, coated CS, 19 GA (PN 2671290901)
❒ Five (5) welded tube, 8 inch x 20 inch, coated CS, 19 GA (PN 2671290801)
❒ Four (4) welded slip tube, 8 inch x 20 inch, coated CS, 19 GA (PN 2671330501)
❒ Two (2) welded slip tube, 8 inch x 8 inch, coated CS, 19 GA (PN 2671330401)
❒ Six (6) 8 inch slip tube ring seal (PN 26713202)
❒ Six (6) Conair flange adaptors (PN 18477901)
❒ Twenty-six (26) 8 inch bolted pull ring, galvanized (PN 2671350201)
❒ Twenty (20) 8 inch U-shaped gasket, 19 GA (PN 2671360201)
❒ Six (6) 8 inch Conair hard pipe gasket (PN 185107930)
❒ Six (6) 8 inch ceiling mount clamp, Galvanized, high-temp. (PN 2671390201)
❒ Forty-eight (48) 5/16-18NC x 1 inch hex head wiz lock cap screw (PN 21202504)
❒ Forty-eight (48) 516-18 hex head wiz lock nut (PN (22300804)
❒ Six (6) threaded rod, 3/8-16 x 10 feet long (60 feet total length) (PN 2190091004)
❒ Six (6) threaded rod adapter (PN 18598074)
❒ Six (6) hex head bolt, M10 x 1.5 x 15MM, plated (PN 21247302)
❒ Eighteen (18) washer, flat, 3/8 inch, plated (PN 22500302)
Conair Part #18090002: 12 inch Hard Pipe Basic Kit
❒ Two (2) 8 inch Conair hard pipe gasket (PN 185107930)
❒ Two (2) 8 inch hard pipe flange x 12 inch tubing adaptor (PN 18477910)
❒ Seven (7) 12 inch 1D 90, 16 GA, coated CS
❒ Three (3) welded tube, 12 inch x 78 inch, coated CS, 19 GA (PN 2671291501)
❒ Six (6) welded tube, 12 inch x 39 inch, coated CS, 19 GA (PN 2671291401)
❒ Six (6) welded tube, 12 inch x 20 inch, coated CS, 19 GA (PN 2671291301)
❒ Four (4) welded slip tube, 12 inch x 20 inch, coated CS, 19 GA (PN 2671330901)
❒ Two (2) welded slip tube, 12 inch x 8 inch, coated CS, 19 GA (PN 2561330701)
❒ Six (6) 12 inch slip tube ring seal (PN 26713203)
❒ Six (6) 12 inch Conair flange to 12 inch adapter (PN 18477902)
❒ Twenty-nine (29) 12 inch bolted pull ring, galvanized (PN 2671350301)
❒ Twenty-three (23) 12 inch U-shaped gasket, 19 GA (PN 2671360301)
❒ Six (6) 12 inch Conair hard pipe gasket (PN 185107916)
❒ Six (6) 12 inch ceiling mount clamp, galvanized, high-temp (PN 2671390301)
❒ Sixty-four (64) 5/16-18NC x 1 inch hex head wiz lock cap screw (PN 21202504)
❒ Sixty-four (64) 516-18 hex head wiz lock nut (PN (22300804)
❒ Six (6) threaded rod, 3/8-16 x 10 feet long (60 feet total length) (PN 2190091004)
❒ Six (6) threaded rod adapter (PN 18598074)
❒ Six (6) hex head bolt, M10 x 1.5 x 15MM, plated (PN 21247302)
❒ Eighteen (18) washer, flat, 3/8 inch, plated (PN 22500302)
( C o n t i n u e d )
To Next Page
