3-12 l Install ation
Connecting the Air Hoses to a
Single Hopper (W600 - 1000)
Using the two flexible hoses provided, connect the inlet of the HTC and outlet
of the drying hopper to the dryer. Make sure the dryer is located as close as
possible to the hopper (10 ft {3.05 m} of hose supplied).

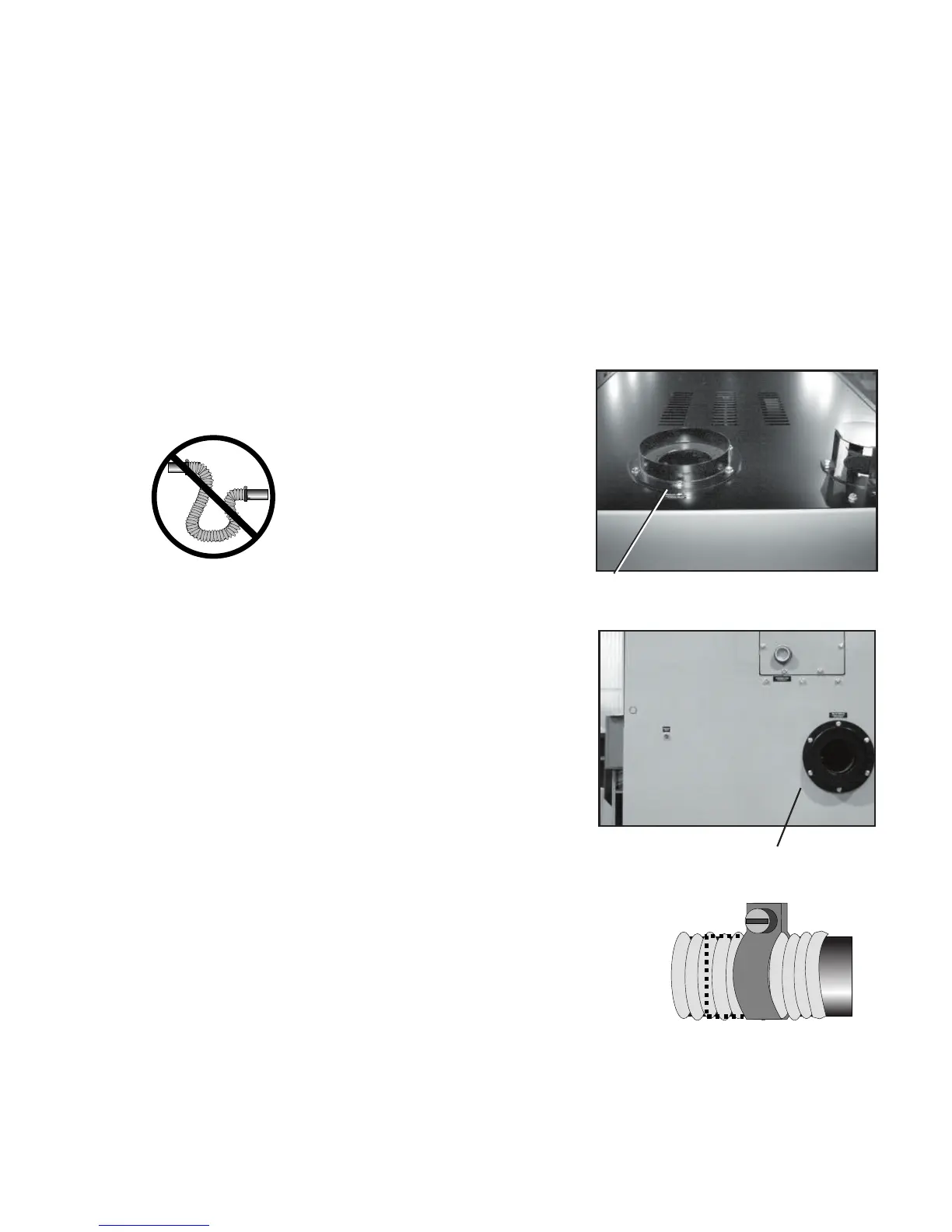

1 Attach one hose from the return
air inlet, located on top of the
dryer, to the outlet of the hopper.
2 Attach one hose from the delivery
air outlet to the inlet of the HTC.
3 Secure hoses with clamps. The hose clamp
should be secured at least 1/4 in. {0.64 cm}
from the end of the inlet or outlet tube.
NOTE: Do not allow the
flexible hoses to kink or
crimp.
✐
Return
Air Inlet
Dry Delivery Air
✐
NOTE: Models W600-1000
dryer aftercooler and dry
air delivery configuration
shown. Location on larger
models are different.
Refer to the labeling on
your dryer.
✐
NOTE: All air hose connec-
tions will be appropriately
labeled.
To Next Page
