Installa tion l 3-13
3
Installa tion
Connecting the Air Hoses to a
Single Hopper (W1600 - 5000)

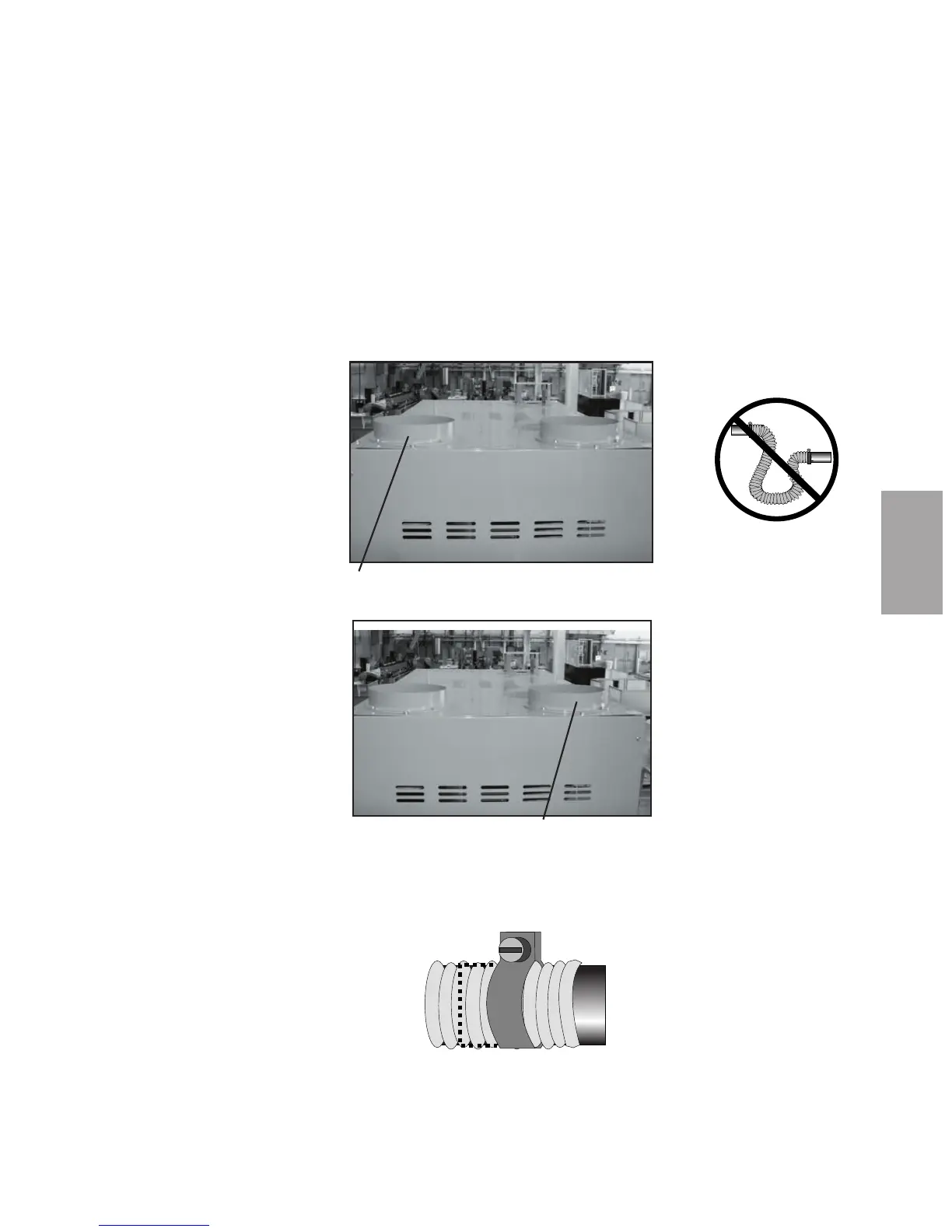

Using the two flexible hoses provided, connect the inlet of the HTC and outlet
of the drying hopper to the dryer. Make sure the dryer is located as close as
possible to the hopper (10 ft {3.05 m} of hose supplied).
1 Attach one hose from the return
air inlet, located on top of the
dryer, to the outlet of the hopper.
2 Attach one hose from the delivery
air outlet, located on top of the
dryer, to the inlet of the HTC.
3 Secure hoses with clamps. The hose clamp should be secured
at least 1/4 in. {0.64 cm} from the end of the inlet or outlet tube.
NOTE: Do not allow the
flexible hoses to kink or
crimp.
✐
Return Air
Inlet
Delivery Air
Outlet
To Next Page
