6. Software Utilities
PC-686BX(NLX)-LV, PC-686BX(NLX)-LVV
51

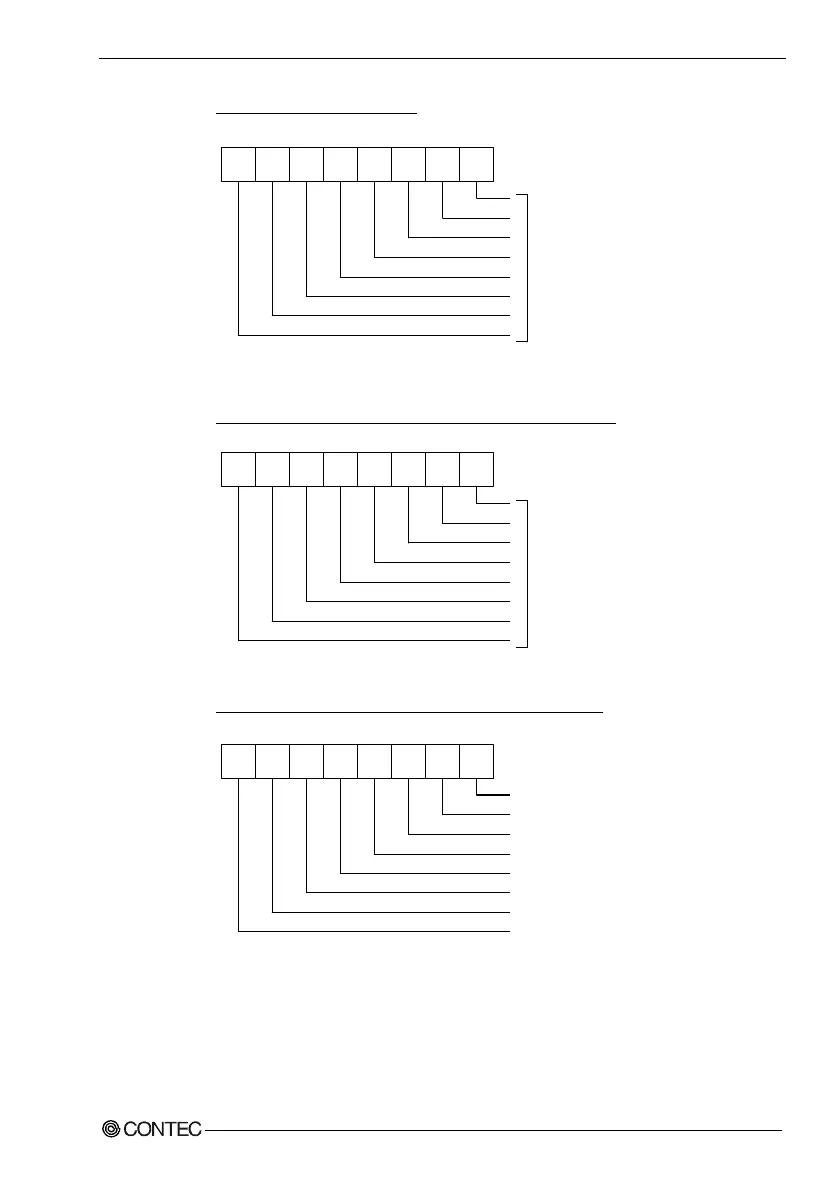

Chip ID register (Bank0:58h)
7 6 5 4 3 2 1 0
Chip ID
Bit 7-0: Winbond chip ID number
Value returned on reading this register is "11h".
Temperature sensor 2 temperature register 1 (Bank 1:50h)
7
6
5
4
3
2
1
0
TEMP2 <8:1>
Refer to the temperature format table for temperature sensor 2.
Temperature sensor 2 temperature register (Bank 1:51h)
7 6 5 4 3 2 1 0
Not used
Not used
Not used
Not used
Not used
Not used
Not used
TEMP<0>
Refer to the temperature format table for temperature sensor 2.
