Convaid Rodeo - PREFERRED ANGLES OF FRONT AND REAR TIEDOWN N STRAPS; PREFERRED LOCATIONS OF FLOOR ANCHOR POINTS

46
CONVAID USER’S GUIDE

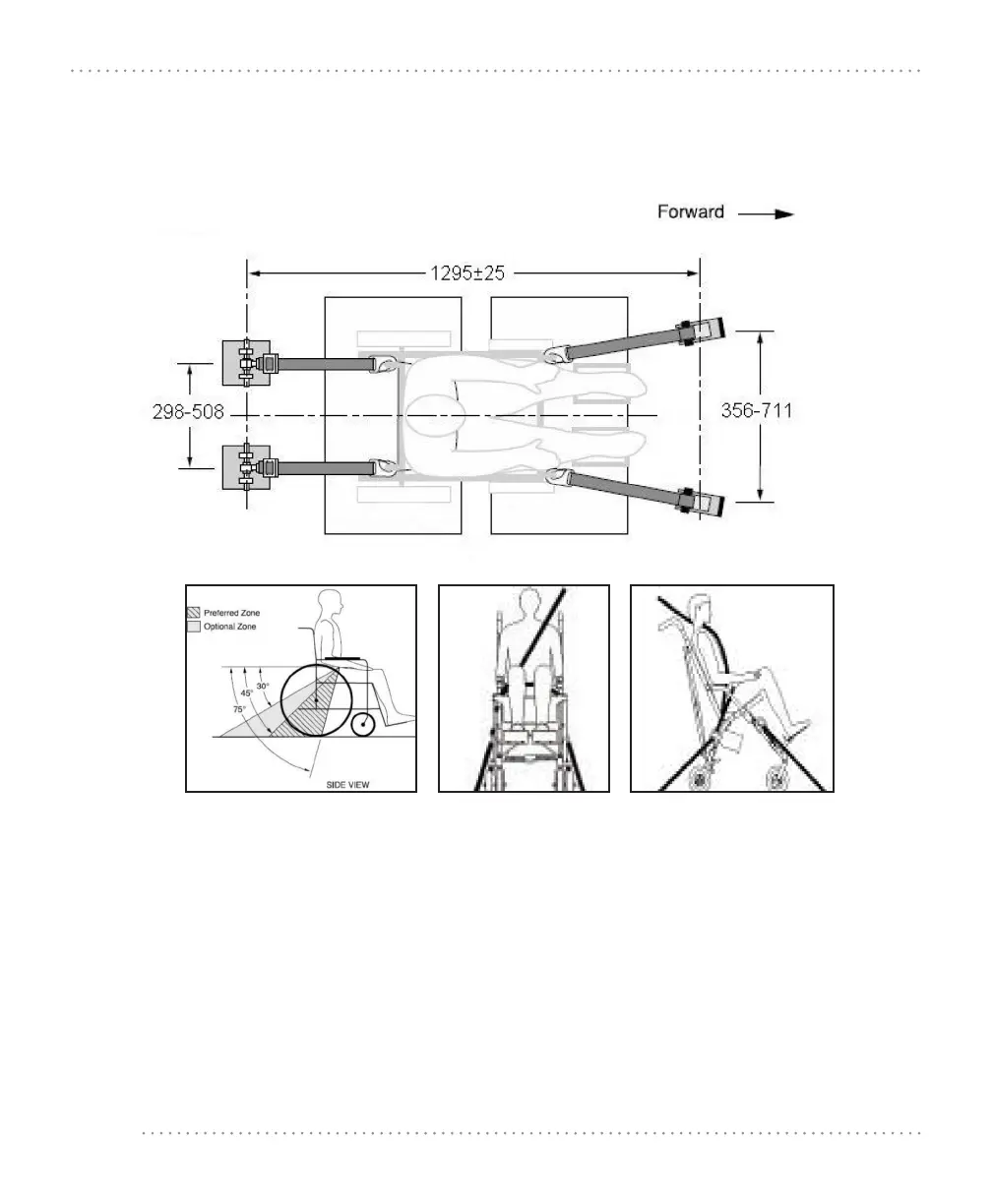

PREFERRED ANGLES OF FRONT AND REAR TIEDOWN N STRAPS Fig. 157 AND PREFERRED
LOCATIONS OF FLOOR ANCHOR POINTS Fig. 156.
Fig. 156
Fig. 157 Fig. 158 Fig. 159
FIG. 158: FRONT TIEDOWN STRAPS ANGLED AWAY FROM SIDES OF WHEELCHAIR.
FIG. 159: CORRECT POSITIONS OF SHOULDER AND LAP BELT RESTRAINTS AND
WHEELCHAIR TIEDOWNS.
