47
CONVAID USER’S GUIDE

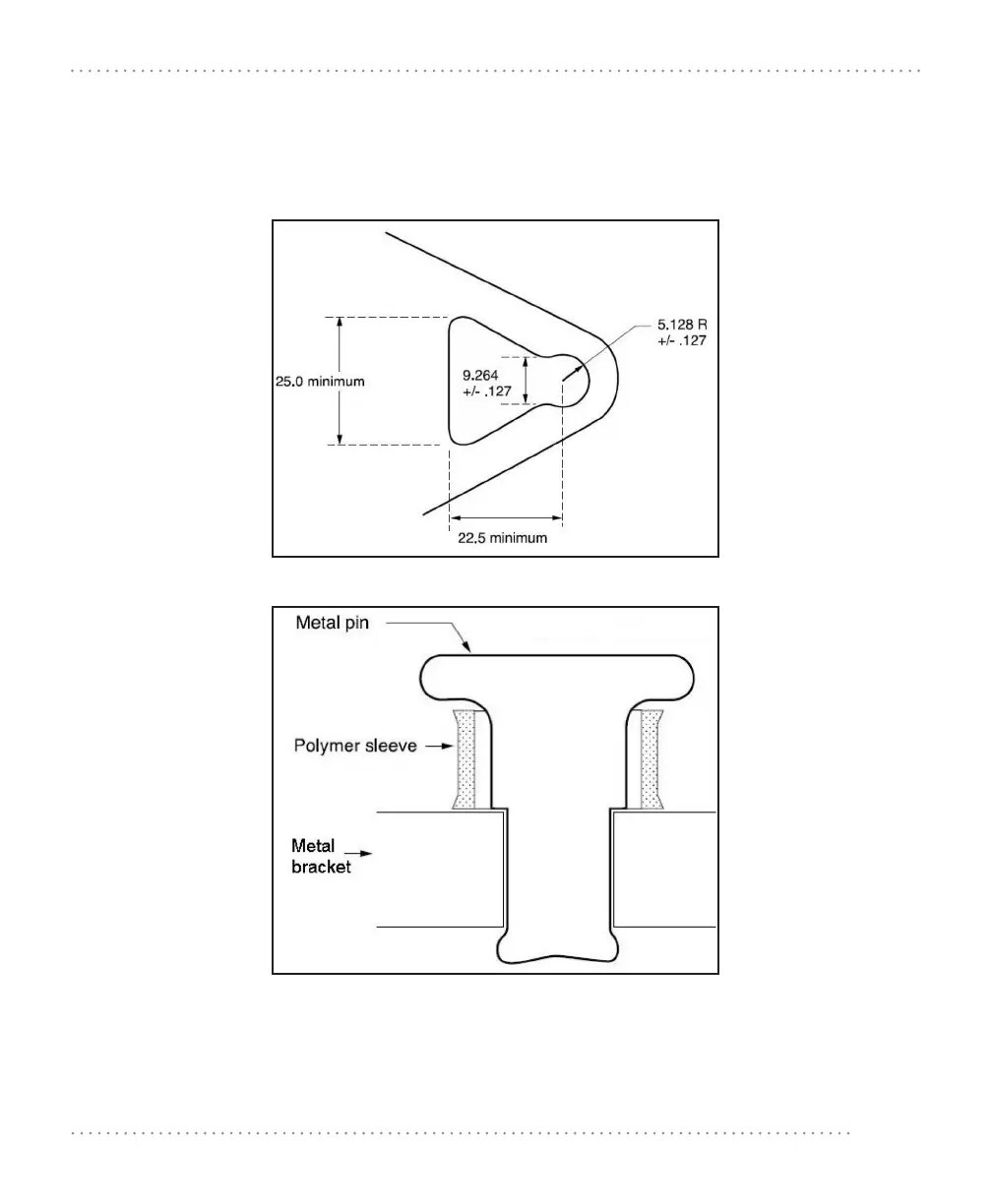

STANDARD METAL CLIP FIG. 160 AT LOWER END OF SHOULDER BELT AND AT
END OF OPTIONAL WHEELCHAIR-ANCHORED LAP BELT USED TO CONNECT TO
PIN/BUSHING FIG. 161 ON LAP BELT OR ON WHEELCHAIR SECUREMENT POINT
BRACKETS.
Fig. 160
Fig. 161
