ALSPA PROFIBUS Field Bus Coupler 3. Installation
(09/06) Technical Manual Page 3-11
CAUTION
This equipment contains solid state devices which may be
affected by electrostatic discharge. Observe static handling
precautions.
5. Fit the PROFIBUS board into the 96-way socket (B) at the back of
the control board, as shown in
Figure 3-8. Secure it to the steel
front plate with the two screws provided, locating the ring crimp of
the free yellow/green earth lead (A) under one of the screws.
6.
Attach the label (C) if supplied, and fit dust covers (D) to any
PROFIBUS connector that will be exposed for a lengthy period,
see
Figure 3-8.

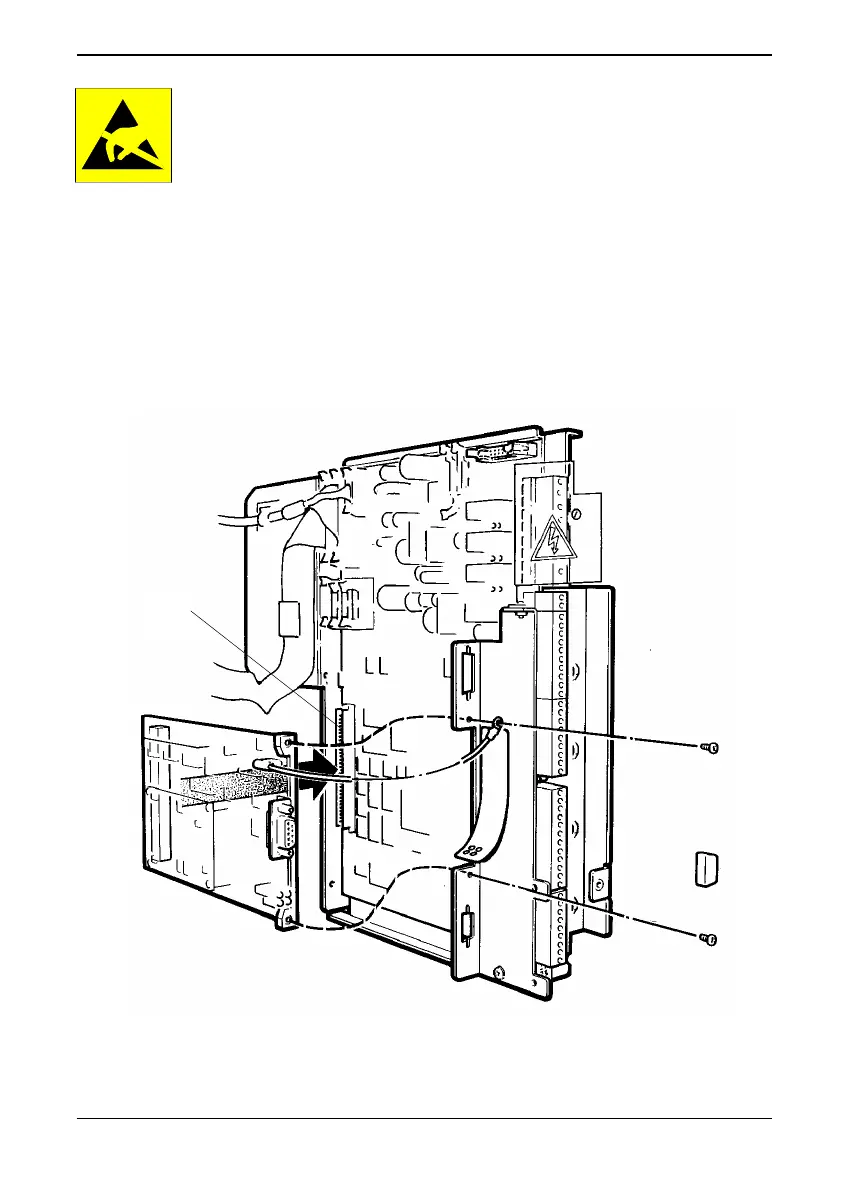

Figure 3-8 Drive module – fitting the PROFIBUS board
B
