3. Installation ALSPA PROFIBUS Field Bus Coupler
Page 3-10 Technical Manual (09/06)
4. Slide the control board completely forward out of the drive, disconnecting
any ribbon connectors located at the top of the board, (see Figure 3-7),
and noting their positions for ease of re-connecting.

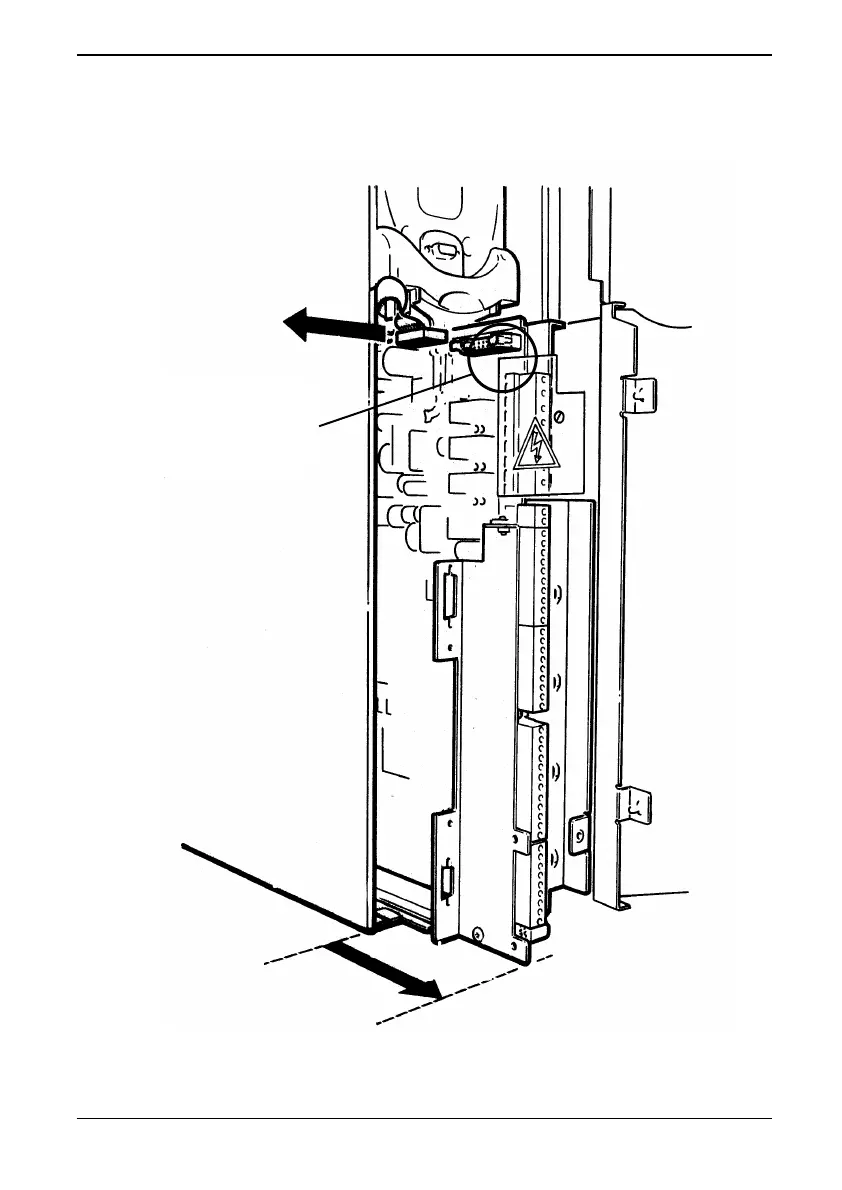

Figure 3-7 Drive module – removing the control board
Disconnect any
ribbon connector
in this area.
