Control panel (SELV) connections
Before making any connection to the SD3 isolate ALL power from the control
panel (mains and battery). Do not continue if there is power still present
on the control panel.
+12V & 0V
Connect these terminals to the 12V auxiliary power supply of the alarm control
panel or to a stand-alone power supply, if necessary.
Trigger inputs (A to H)
Connect these terminals to the relevant outputs on the alarm control panel. When
an alarm panel triggers an input, the SD3 initiates the calling sequence and plays
the relevant speech and/or text message. The diagrams below show the various
wiring options for the trigger inputs.
Note: All inputs must use the same trigger input polarity. The chosen polarity is be
selected within System Options > Trigger Polarity.

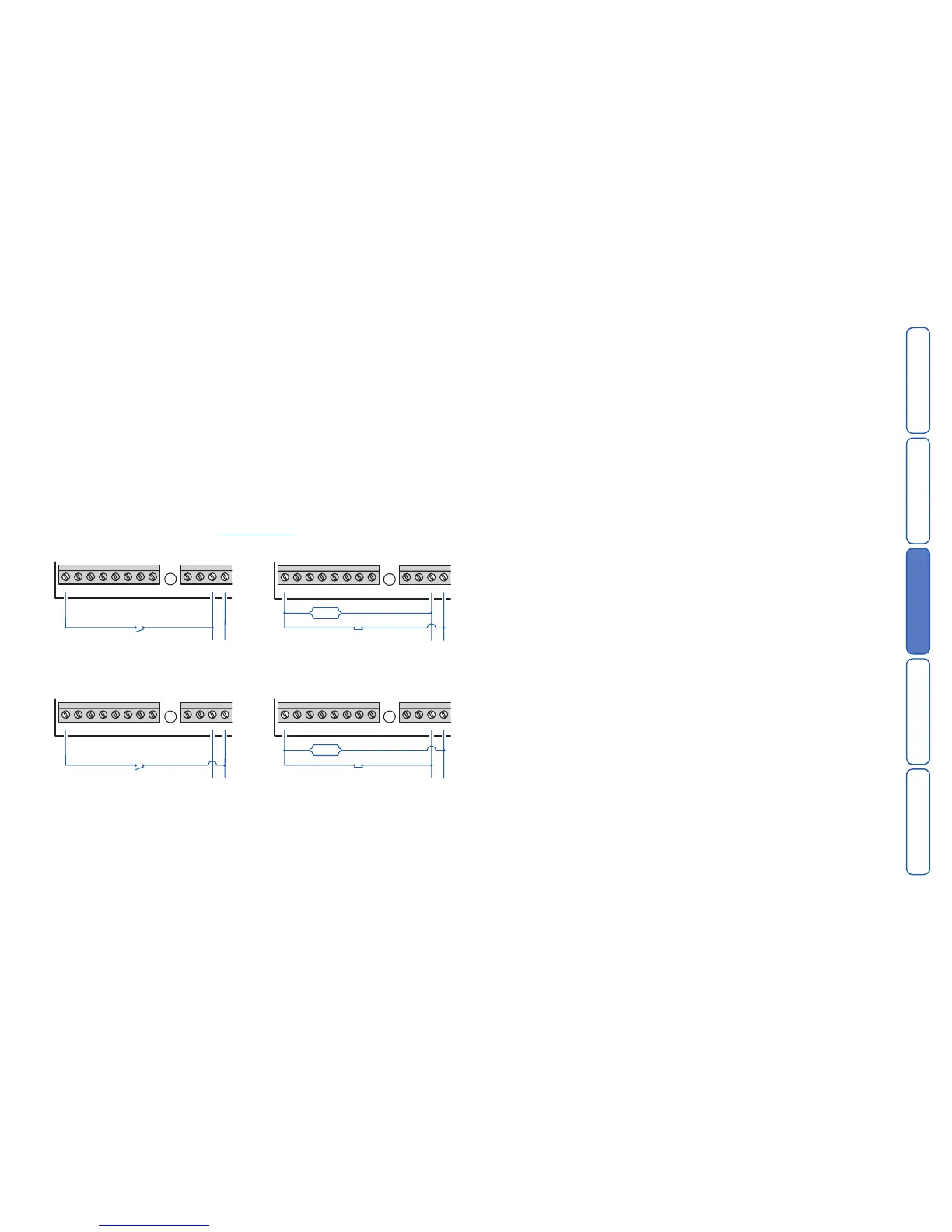

Trigger input connections for positive operation
Trigger input connections for negative operation
Tamper
These terminals provide tamper protection for the SD3 and should be connected
to the auxiliary tamper circuit on the alarm control panel.
OP1 to OP4
Four programmable switched negative @100mA outputs.
Control Panel Connection Table
The table below shows connection details for various alarm control panels:
Control panel Trigger inputs 12V 0V
A B C Trigger
Fire PA Intruder polarities
ADE Accenta 6 N/A N/A B -ve 13V+ 13V-
ADE Concept 6 N/A N/A B -ve 13V+ 13V-
ADE Optima 6 N/A N/A B -ve 13V+ 13V-
ADE Optima XM N/A N/A B -ve 13V+ 13V-
C&K 800L N/A N/A S- -ve Aux + Aux -
CQR Premier 9 FA* PA IA +ve Aux 12V Aux 0V
DA Abacus 6 N/A N/A Bell -ve +12V -0V
DA Abacus 8 N/A N/A Bell -ve +12V -0V
Gardtec 500 Series N/A N/A Bell- -ve 12V 0V
Gardtec 800 Series D1* PA 12Hr -ve 12V 0V
Menvier TS400/410 Cct 4 Cct5 ALM -ve Aux + Aux -
Menvier TS Range Comm. 1 Comm. 2 Comm. 3 -ve Aux + Aux -
Pyronix Octagon N/A PA ALM -ve Aux + Aux -
Pyronix Conqueror N/A N/A BA -ve Aux + Aux -
Scantronic 9448 N/A COM 2 COM 3 -ve 12V 0V
Scantronic 9X5X Series Pin 1 Pin 2 Pin 3 -ve Pin 9 Pin 10
Texecom Veritas 8/R8/ N/A N/A B -ve Aux + Aux -
Texecom Veritas R8 Plus Com1 Com2 Com3 -ve Aux + Aux -
Texecom Veritas Excel Com1 Com2 Com3 -ve Aux + Aux -
Texecom Premier 48/88/168 Digi1* Digi2* Digi3* -ve Aux + Aux -
*Control panel output may require programming to the correct function.
