Cornelius IDC 255 - E - BOARD OFF CYCLE AGITATION ADJUSTMENTS; Recommended Agitation Settings

IDC 255 Progate Drive Thru Service Manual
Publication Number: 621057419SER - 14 - © 2006-2013, IMI Cornelius Inc.
E – BOARD OFF CYCLE AGITATION ADJUSTMENTS
When Ice is not being dispensed from the machine such as during off hours it is essential to move or agitate the ice
to keep it from clumping and to replenish the ice in the cold plate. The amount of time the agitator runs and the time
between the agitation cycles can be adjusted depending on ice type or application. The settings for this function are
located on the E-Board found in the E-BOX. To access the board to be adjusted refer to sections 5.1 and 5.3. Using
a screwdriver follow the diagram below and set the agitator for the desired settings.

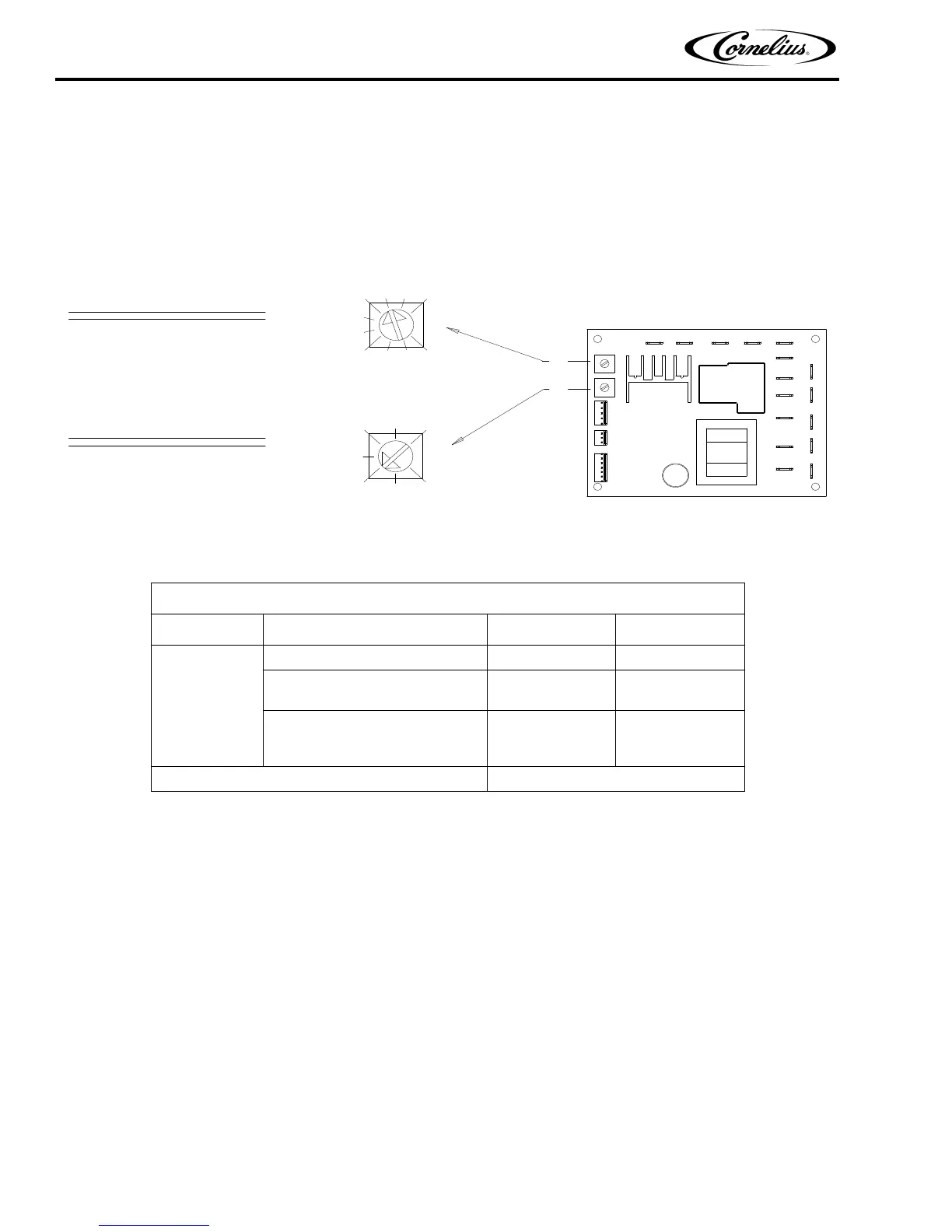

Figure 9.
Manufacturer Recommended Agitation Settings
Model Ice Fill/Ice Type Motor ON Time Motor OFF time
175, 215,
&255, 300, B,
BC
Manual/Hard Ice (Cube) 4 Seconds 1 Hour
Automatic (Top-Mount Ice
Maker/Hard Ice (Cube)
0.5 Seconds 20 Minutes
Manual & Automatic/Cornelius
Chunklet, Scotsman &
Hoshizaki Compressed Ice
0.5 Seconds 3 Hours
B - Beverage C-Coldplate *NO FLAKED ICE*
E-BOARD AGITATION TIMER
2
HRS
1.5
HRS
1
HR
30
MIN
10
MIN
3
HRS
MOTOR ON TIME
OFF TIME
4.5
4
3.5
3
2.5
2
1.5
1
.5
5
2.5
HRS
FULL CCW - 0.5 SECONDS
FULL CW - 5 SECONDS
FULL CCW - 10 MINUTES
FULL CW - 3 HOURS
ON
TIME
OFF
TIME
ON
TIME
OFF
TIME
