IDC 255 Progate Drive Thru Service Manual
Publication Number: 621057419SER - 24 - © 2006-2013, IMI Cornelius Inc.

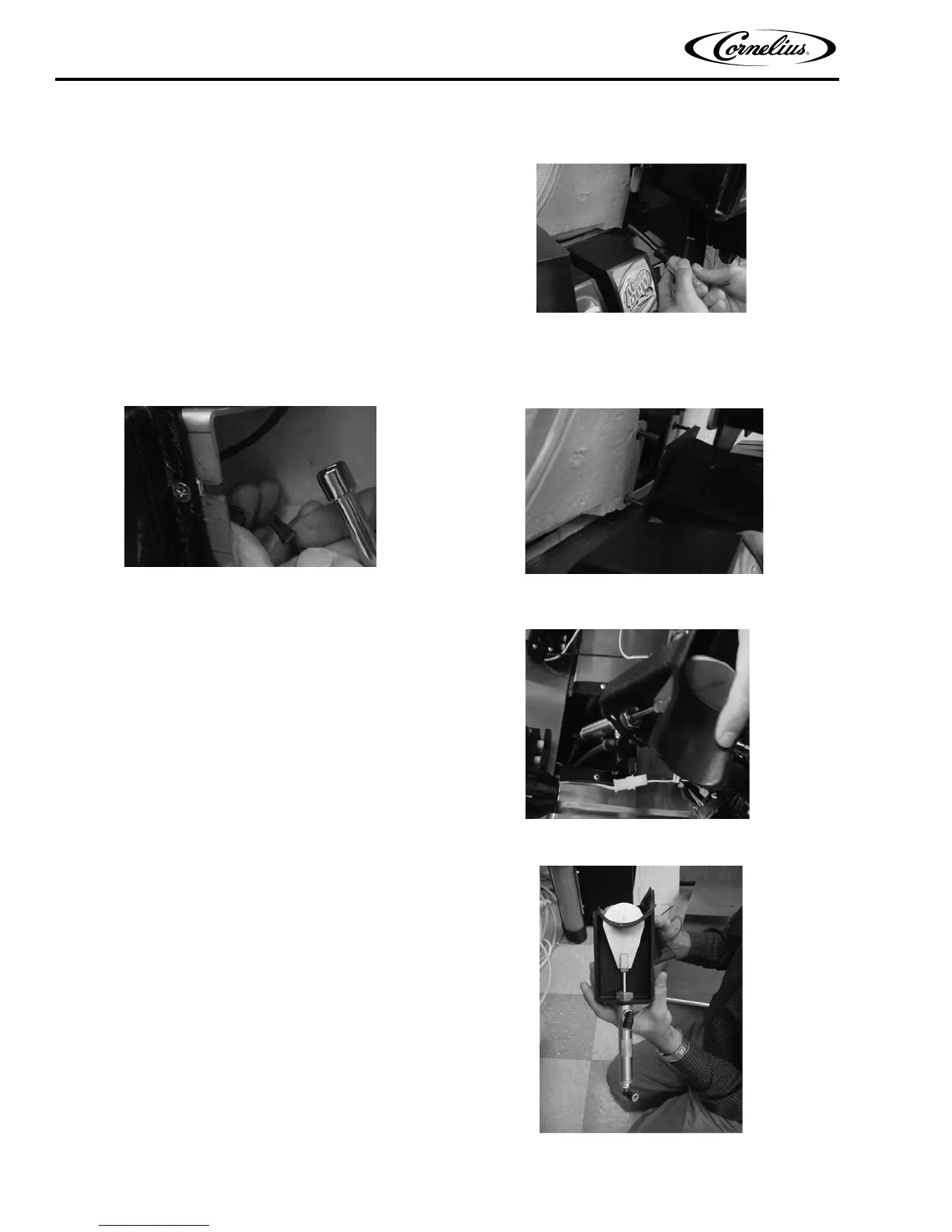

ICE CHUTE REMOVAL
1. Remove 4 nuts attaching ice chute to hopper.
Figure 23.
2. Disconnect ice chute switch harness located behind the control box.
Figure 24.
Figure 25.
3. Pull assembly away form hopper. Do not loose
or damage gasket. If damaged or missing
replace.
4. Pull ice chute assembly out of splash panel
and disconnect the CO2 lines.
NOTE: Mark the CO2 lines to avoid improper
assembly.
Figure 26.
5. View of underside of ice chute assembly show-
ing gate and pneumatic cylinder.
Figure 27.
