Cornelius IDC 255 - CONTROL BOX REMOVAL; MAIN ELECTRICAL BOX ACCESS

IDC 255 Progate Drive Thru Service Manual
© 2006-2013, IMI Cornelius Inc. - 23 - Publication Number: 621057419SER

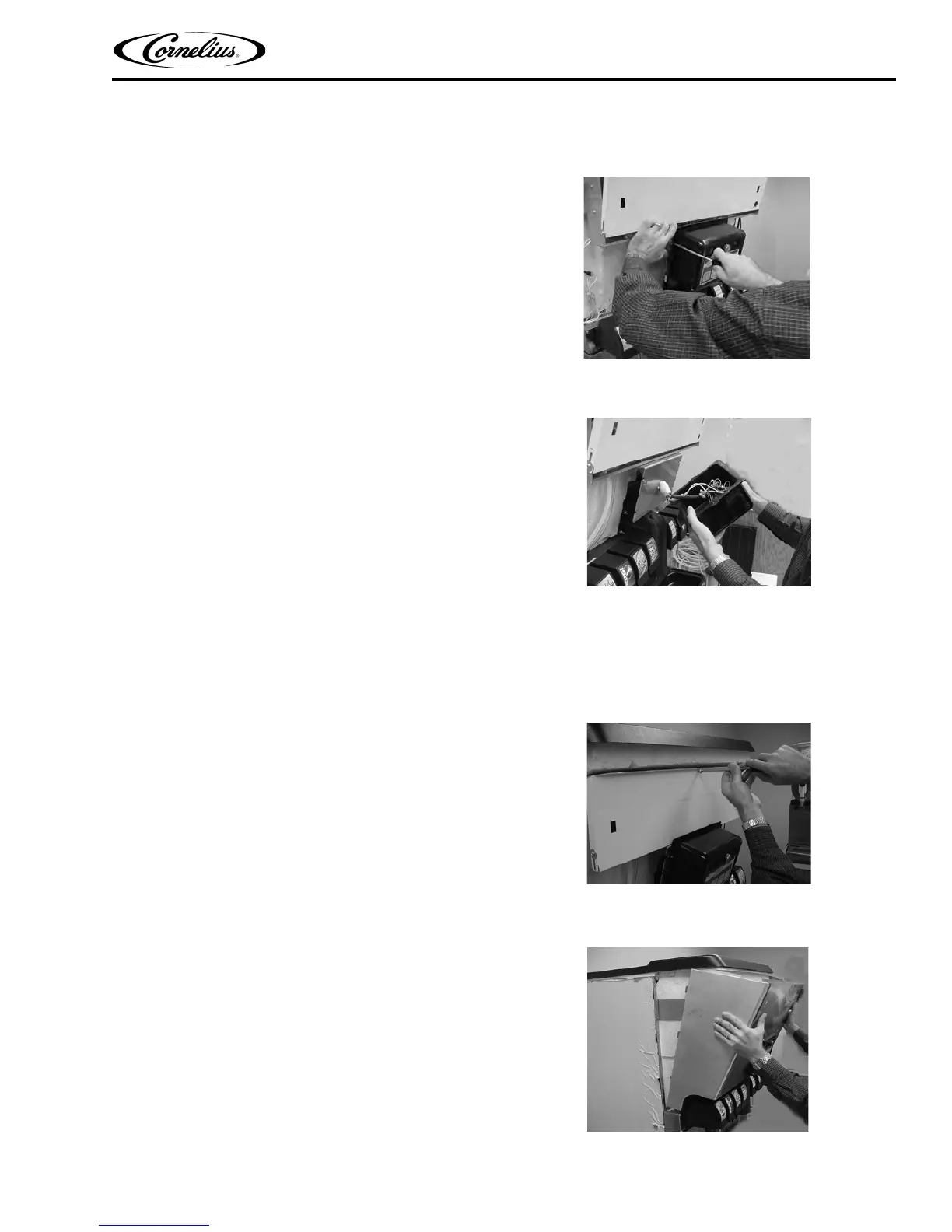

CONTROL BOX REMOVAL
MAIN ELECTRICAL BOX ACCESS
1. With cover removed locate and remove 4
screws from Control box flange.
Figure 19.
2. Pull box forward exposing control board, wiring
and switches.
Figure 20.
1. Remove screw-locking cover to electrical box.
Figure 21.
2. Lift cover up and then rotate forward.
Figure 22.
