Cornelius PRISM - Installation Kit

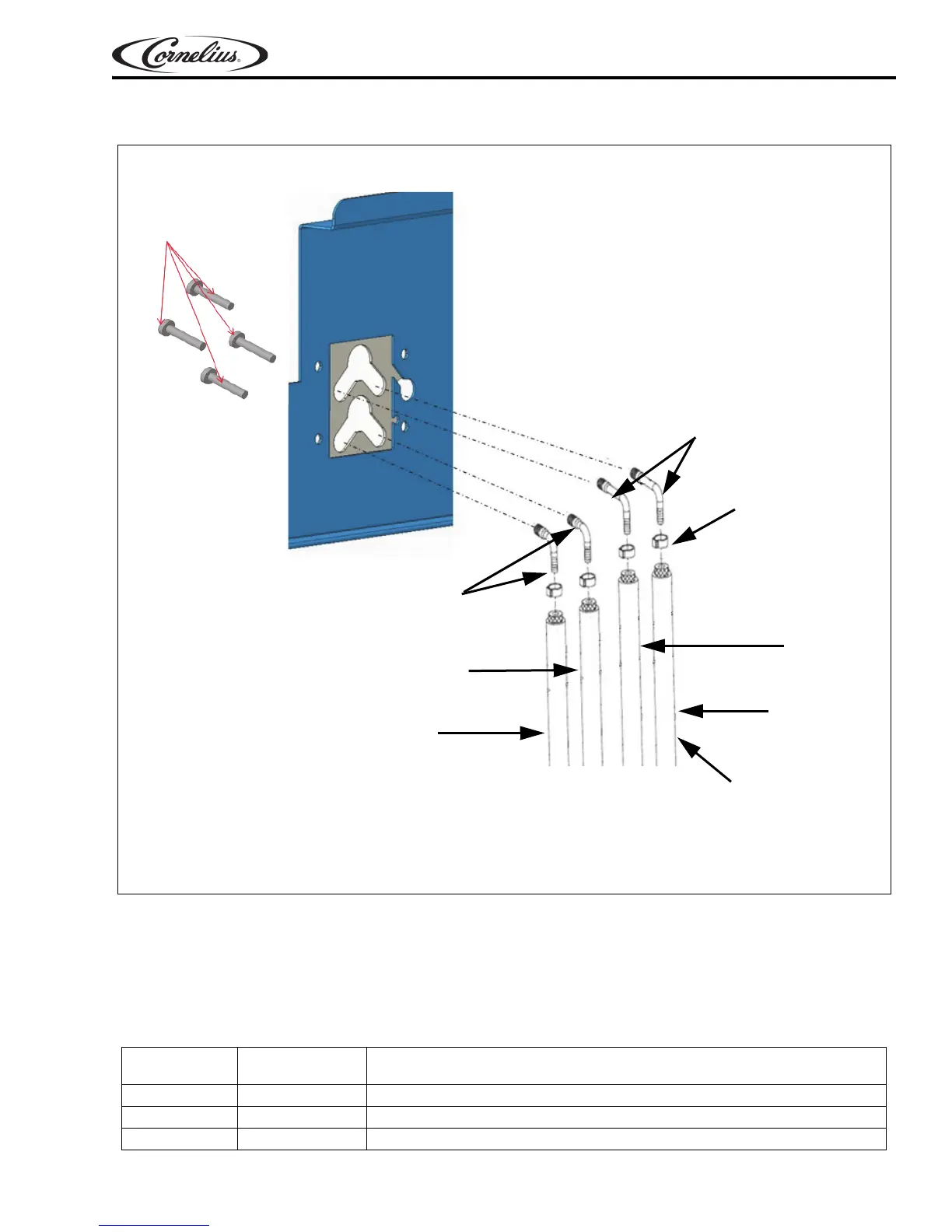

2. Prepare the tubing assemblies.
90° Short
Fittings
90° Long
Fittings
Oetiker Clamp
(A)
(C)
(D)
(B)
Flex Tube (Qty-2: 8ft Length)
P/N 620709073
P/N 311908000
P/N
620717791
Mounting screw
P/N 620700602
P/N 620709068
Figure 21.
Prism Owner’s Manual
© 2018, Cornelius Inc. - 13 - Publication Number: 548000096
INSTALLATION KIT P/N 629097802
NOTE: Check the O-rings on the 90° fittings for damage and replace if necessary.
NOTE: Apply Dow 111 or equal lube on the O-rings prior to install.
NOTE: Use P/N
620717792 to order additional Flex tubing
NOTE: Use P/N 629097822 for an advance kit(100' Flex tubing, Barb Fittings & Co2 tubing, O-rings &
Oe
tikers).
Table 5.
A.
Plain/Carb Water
Use 90° short fitting, 1/4” tubing & insul
ation from existing plain / carbonated
Water line
B.
Syrup 1 Existing syrup line from the cold plate
C.
Syrup 2 New syrup line using 90° short fitting & 1/4” insulated tubing
D.
Syrup 3 New syrup line using 90° long fitting & 1/4” insulated tubing
