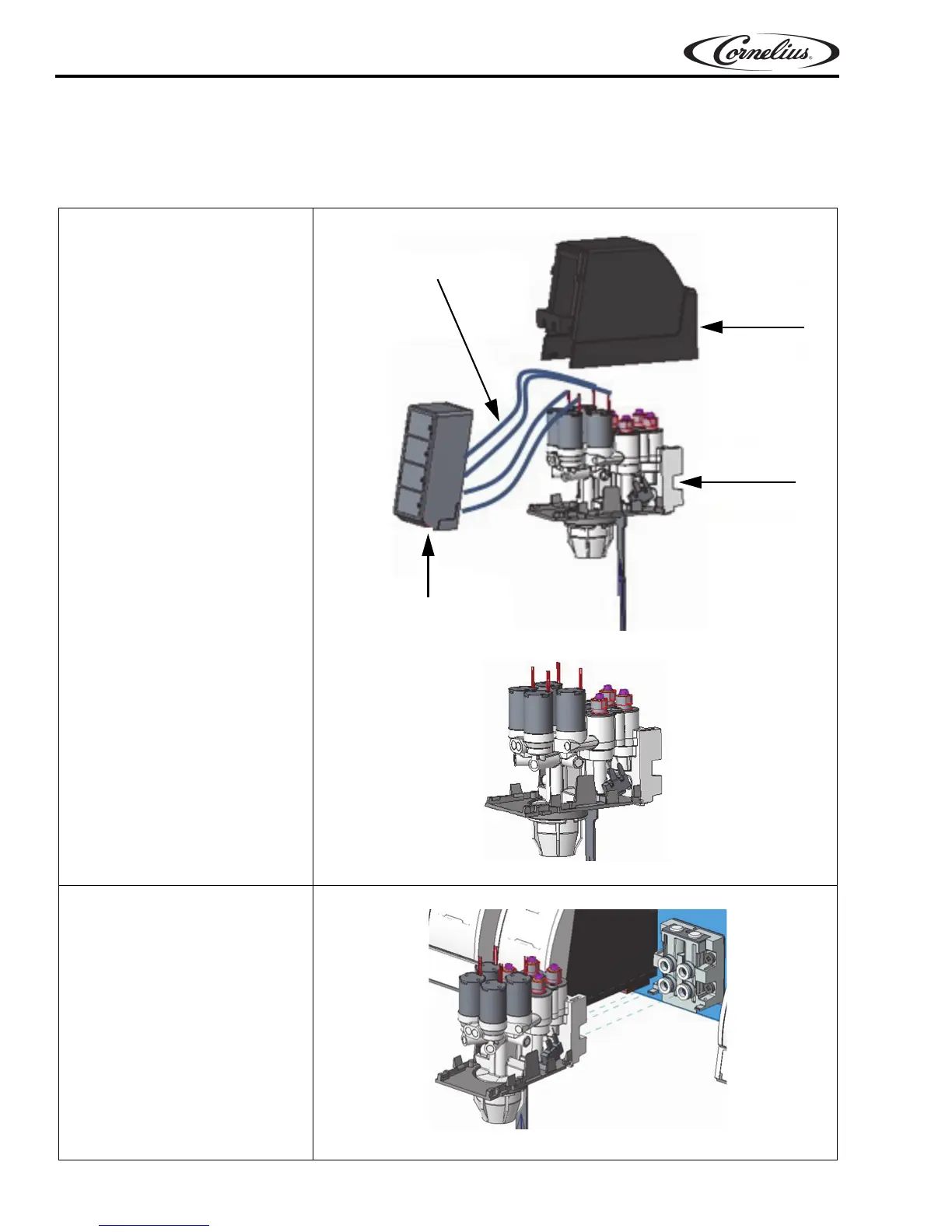

VALVE INSTALLATION
Table 7
1. Slide, open the capacitive
to
uch module.
2. Disconnect the wires from
th
e capacitive touch mod-
ule.
3. Remove the rear cover
Wires from valve body
to Capacitive touch modules
Rear Cover
Valve Body
Capacitive Touch module
Figure 27.
4. Apply Dow 111 or equal
lube on O - rings before
assembling the valve body.
Align the inlet holes of
“valve body” with outlet
holes of back block.
Figure 28.
.
