Prism Owner’s Manual
Publication Number: 548000096 - 10 - © 2018, Cornelius Inc.

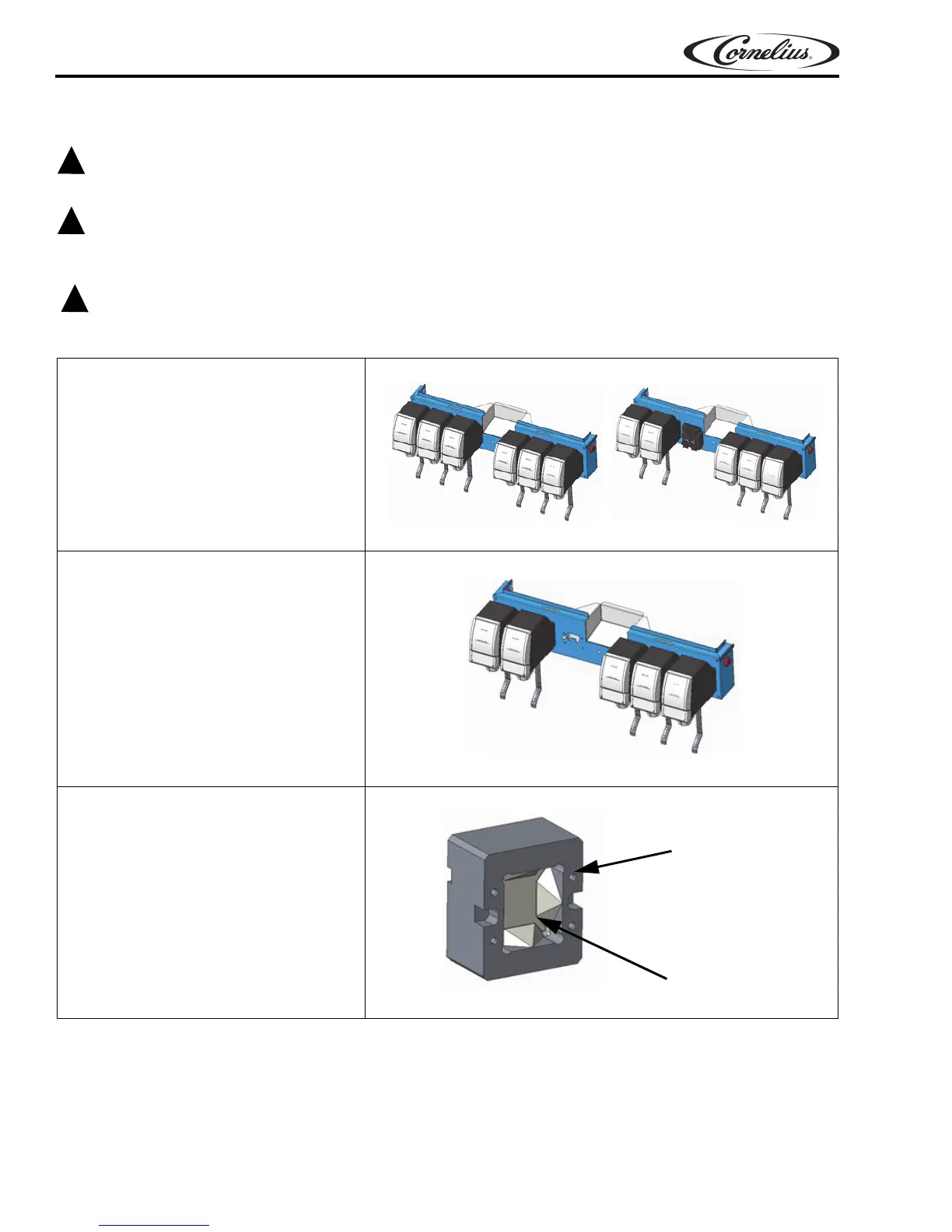

KNOCK OUT PUNCH INSTRUCTIONS
Must wear required PPE and right tools before using the punch out tool.
Disconnect power to the unit before servicing following all lock out/tag out procedures established by the user.
Verify all of the power is off to the unit before any work is performed.
Disconnect all fluid supply to the unit and release all pressures in the system.
Table 3 .
1. Remove the valve from the back
bl
ock.
Figure 12.
2. Remove the existing back-block
from the valve panel.
NOTE: Keep the screws safe for
la
ter.
NOTE: used with installation of new
“Prism”.
Figure 13.
3. Load the “Front Die” with “Punch
Tool”.
Figure 14.
