STANDARD RECOMMENDED PROCEDURE 003-876 | ISSUE 1 | JANUARY 2012 | PAGE 11 OF 21
5.3.
It is only necessary to use one of the following methods for sheath retention.
• External Strain-relief - Section 5.3.1
• Internal Strain-relief - Section 5.3.2
• On Rear Door - Section 5.3.3
• Through Rear Door - Section 5.3.4
5.3.1
a. The external strain-relief assembly is factory-congured for the following cable entry locations:
• Install
the external strain-relief mount so that the
arm extends away from and to the LEFT
of the “window” located on the mount.
•
Install the external strain-relief mount so
that the arm extends away from and to
the RIGHT of the “window” located on the
mount.

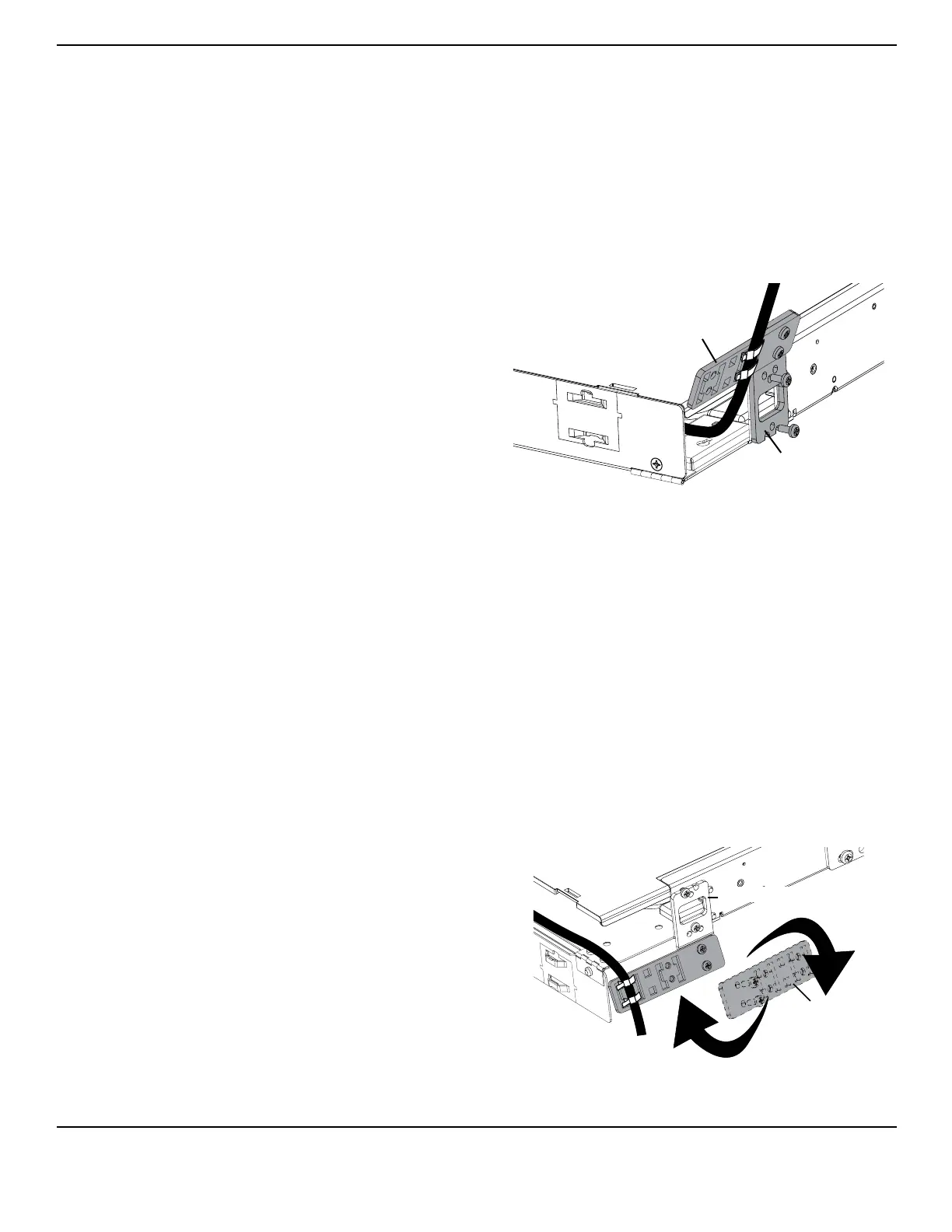

Figure 11
Align the window of the external strain-relief assembly with the window on the
housing (Figure 11). Insert the two provided screws and tighten completely.
Strain-relieve to the external strain-relief assembly by using two cable ties to secure
the cable to the assembly. Ensure that the cable ties are seated correctly in the
provided slots.
b. It is necessary to recongure the strain-relief assembly for the following cable entry locations:
• Screw the external strain-relief arm onto the external
strain-relief mount so that the arm extends away from and to the RIGHT of the “window”
located on the mount.
• Screw the external strain-relief arm onto the external strain-
relief mount so that the arm extends away from and to the LEFT of the “window” located on the
mount.
Unscrew the screws holding the
arm to the mount (Figure 12).
Flip the bracket and reattach the
strain-relief arm on the other side
of the strain-relief mount.
Attach the arm to the mount with
the same screws just removed.
Align the window of the external
strain-relief assembly with the
window on the housing. Insert the
two provided screws and tighten
completely.
Figure 12
Strain-relief Arm
Rear
Strain-relief Mount
TPA-3973
Strain-relief Arm
Rear
TPA-3981
Strain-relief Mount
To Next Page
