STANDARD RECOMMENDED PROCEDURE 003-876 | ISSUE 1 | JANUARY 2012 | PAGE 5 OF 21
• Splice Cassette (CCH-CS)
• Storage Cassette (CCH-CF)
• Pigtailed Panels (CCH-CPXX-YY-P03ZZ)
• Pigtailed Modules (CCH-RMXX-YY-P03ZZ)
• Pigtailed Cassettes (CCH-CSXX-YY-P00ZZ)
• Plug & Play™ System Modules
4.

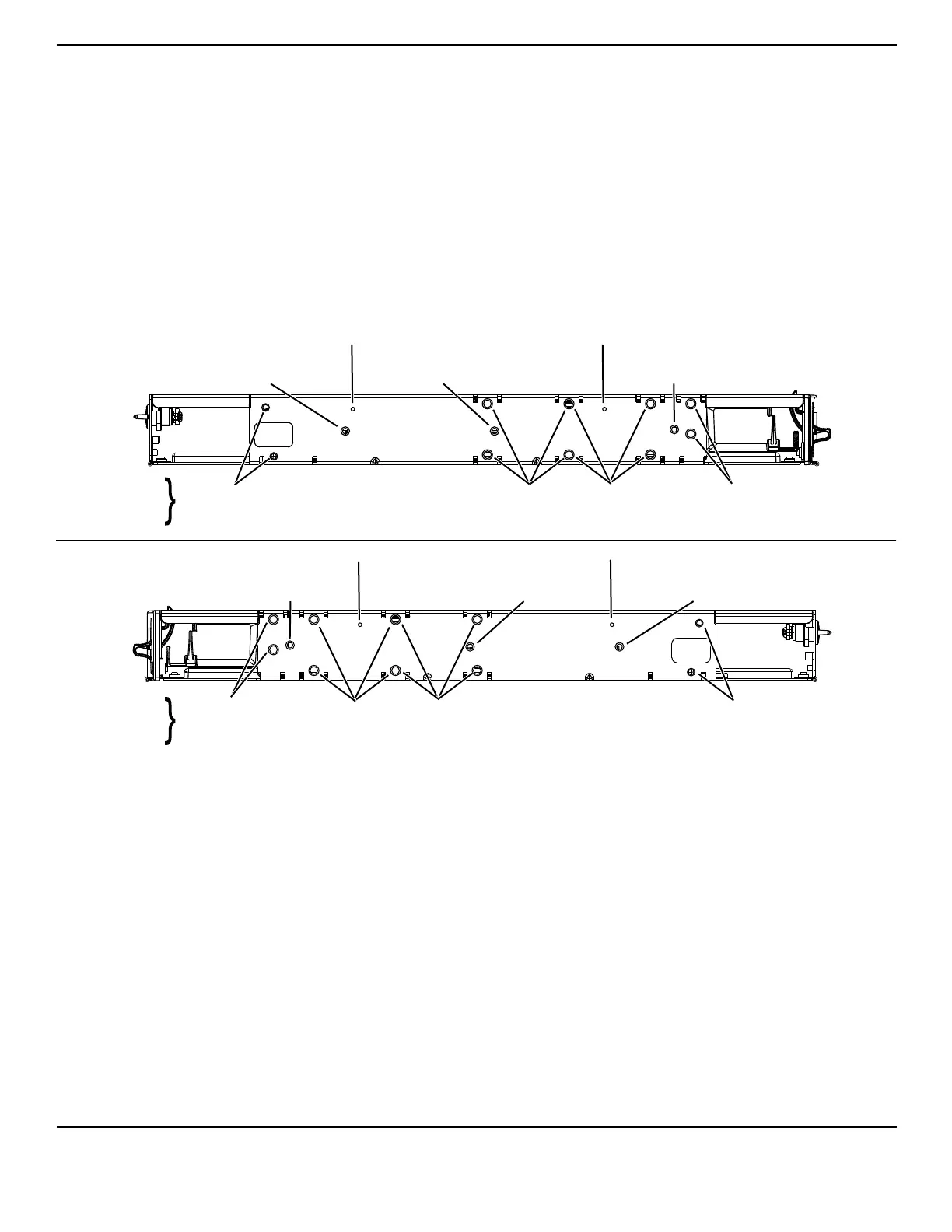

Familiarize yourself with the hole locations for mounting and strain-relief bracket screws illustrated in
Figure 2, as well as the locations for inserting locking screws for the sliding shelf and the covers.
Figure 2
OPTIONAL: If mounting the housing into a 23-inch rack, install the 23-inch rack mounting brackets
onto the housing, then follow one of the methods listed below to install the housing into the rack.
RIGHT SIDE
LEFT SIDE
FRONT
REAR
Front Cover Lock
Front Cover Lock
Rear Cover Lock
Shelf Lock
Closed Position
Shelf Lock
Closed Position
Shelf Lock
Flush Position
Shelf Lock
Flush Position
Flush Mounting
Support Standoff
Flush Mounting
Support Standoff
Rear Cover Lock
TPA-4026
External
Strain-relief
Mounting Hole
Locations for
Brackets
Mounting Hole
Locations for
Brackets
External
Strain-relief
5-inch Mounting
Projection
3.5-inch Mounting
Projection
Flush Mounting
Projection
3.5-inch Mounting
Projection
5-inch Mounting
Projection
Flush Mounting
Projection
To Next Page
