5.3.3 On the Rear Door

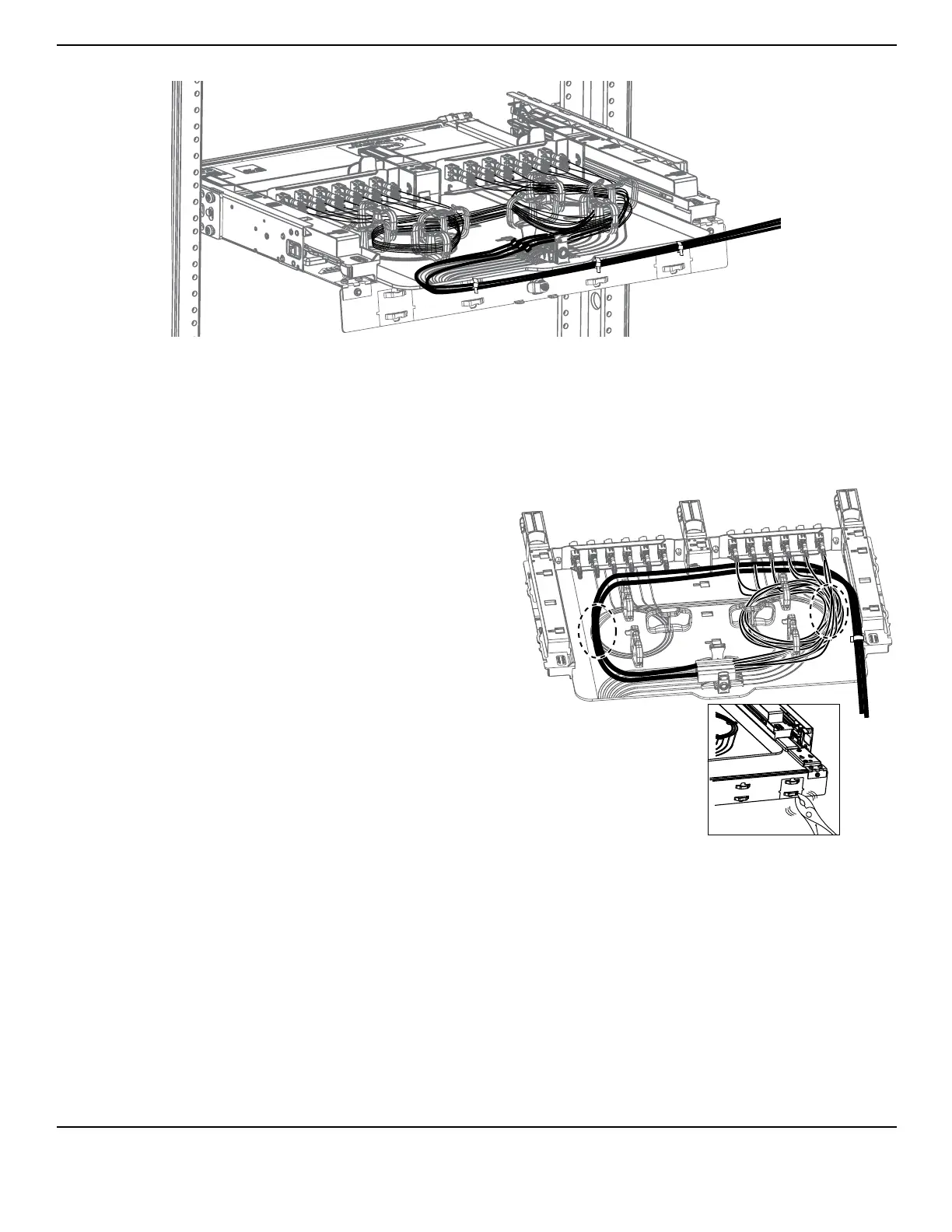

Figure 15
Cable may be strain-relieved to the lances on the inside of the rear door after reinstalling the shelf
(Figure 15). Secure the cables at several locations on rear door with cable ties.
5.3.4
If cable enters from directly behind the housing, it
is possible to strain-relieve through the rear door.
Open the rear door. Firmly grasp door
to prevent bending it and, with a pair of
pliers, remove the knockout where the
cable will enter the housing (Figure 16).
Remove the two routing clips in the
area indicated by the dashed circles in
the illustration.
Strain-relieve the cable with cable ties
through the openings in the side wall of
sliding shelf as shown.
Figure 16
TPA-4027
TPA-3974
