CORNING CCH-01U - Installing Cassettes; Installing Two Cassettes

STANDARD RECOMMENDED PROCEDURE 003-876 | ISSUE 1 | JANUARY 2012 | PAGE 17 OF 21
6. 
6.1. 
Refer to the Corning Cable Systems Standard Recommended Procedure 003-895 for complete
instructions on preparing a splice cassette using ribbon ber or loose tube cable.
It is not necessary to remove the sliding tray to install cassettes into the housing.

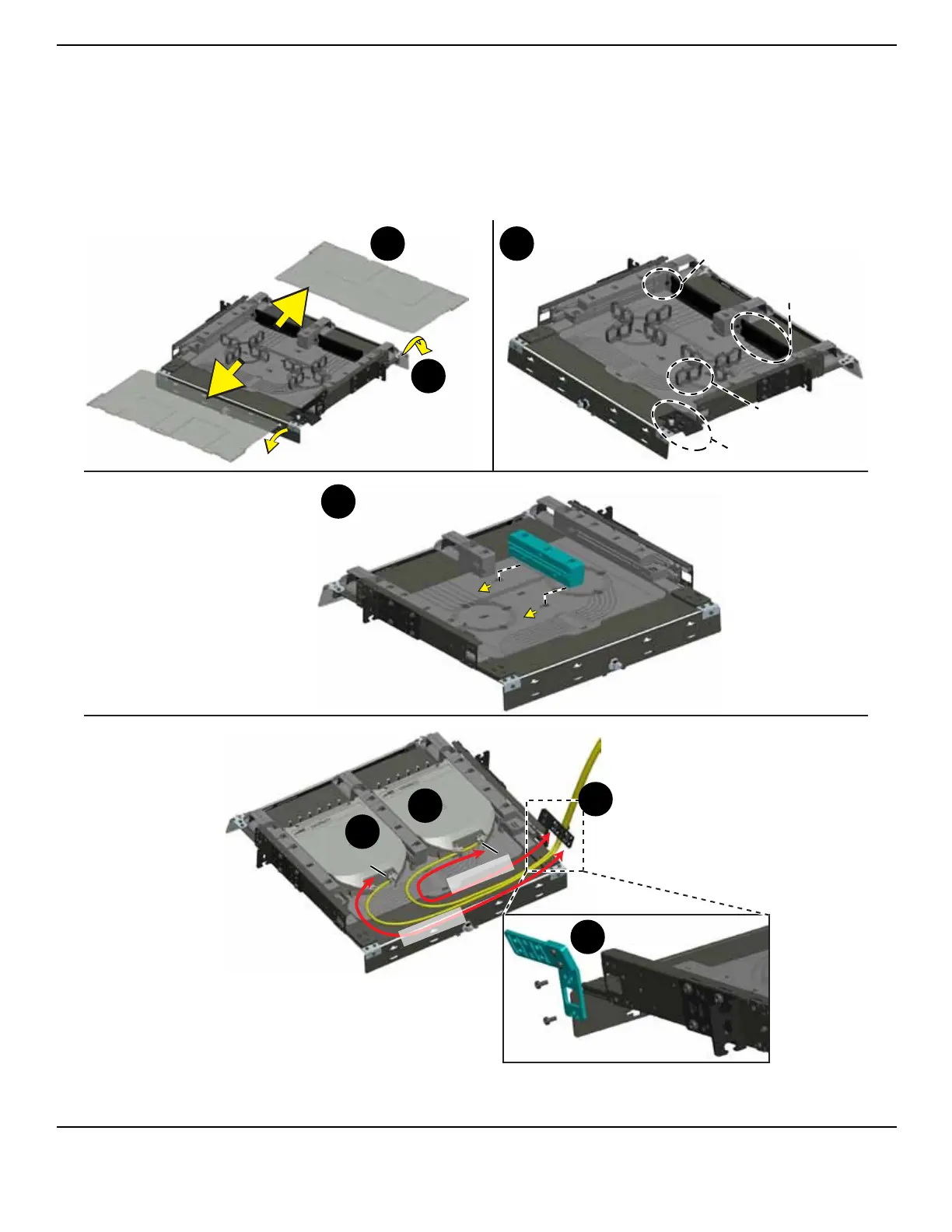

Figure 21
TPA-3943
Slide covers
apart to
remove.
Remove:
Open front and
back doors.
8 Routing Guides
1 Strain-relief Bracket
2 Blank Panels
4 Panel Clips
Install rear
stacker. Slide
into keyhole.
TPA-3943
2 3
1
4
8
7
5
6
24 inches
24 inches
