STANDARD RECOMMENDED PROCEDURE 003-876 | ISSUE 1 | JANUARY 2012 | PAGE 3 OF 21
CAUTION: Recommend the use of safety glasses (spectacles) conforming to ANSI Z87, for
eye protection from accidental injury when handling chemicals, cables, or working with ber.
Pieces of glass ber are very sharp and have the potential to damage the eye.
CAUTION: Cleaved or broken glass bers are very sharp and can pierce the skin easily.
Do not let these pieces of ber stick to your clothing or drop in the work area where they can
cause injury later. Use tweezers to pick up cleaved or broken pieces of glass bers and place
them on a loop of tape kept for that purpose alone.
CAUTION: The wearing of cut-resistant safety gloves to protect your hands from accidental
injury when using sharp-bladed tools and armored cable is strongly recommended. Use
extreme care when working with severed armor. There will be a sharp edge where armor is
cut. To minimize the chance of injury from the cut armor, cover the exposed edge with a wrap
of electrical tape. To minimize the chance of injury from sharp-bladed tools, always cut away
from yourself and others. Dispose of used blades and armor scrap properly.
2. CARTON CONTENTS

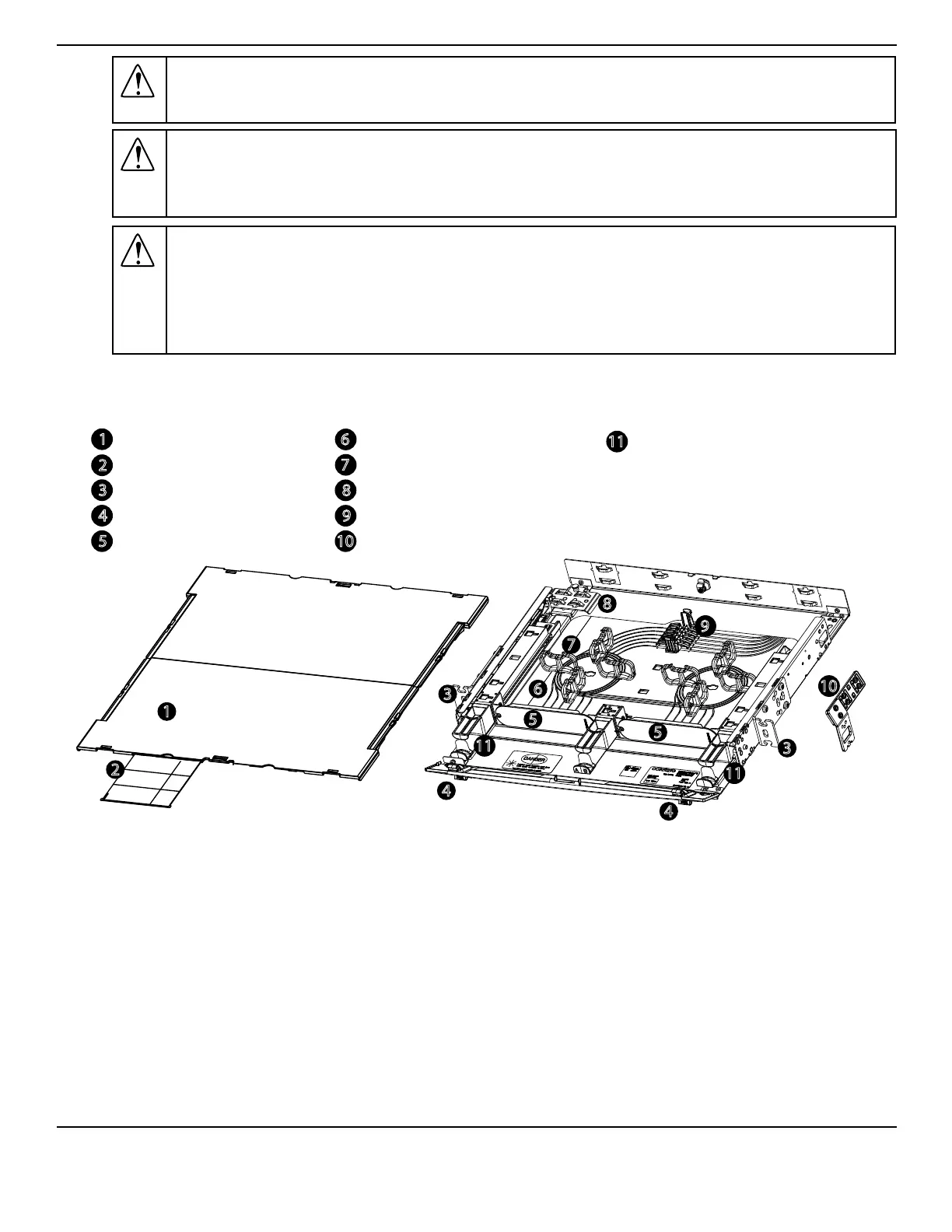

Figure 1
2.1. CCH-01U
• (1) Closet Connector Housing with blank adapter panels as seen in Figure 1
• (1) Hardware Kit containing:
(2) Screws, #6 - 32 x .312-inch (for locking the shelf)
(4) Screws, 12-24 x .50-inch (for rack-mounting)
(4) Screws, 4-24 x .312-inch (for locking the covers)
(8) Cable ties, 1/8 x 4 inches, white
(4) Cable ties, 8-inch, black
(2) CCH Labels, 1.35 x 4-inches
(1) External strain-relief bracket with (2) #6 - 32 x .25-inch screws
1
Sliding cover
2
Sliding tray
3
Mounting bracket
4
Door latch
5
Blank adapter panel
8
Internal strain-relief assembly
9
Slack management clip
10
External strain-relief assembly
11
Jumper guide
7
6
Label card
Transitional strain-relief holder
TPA-3873
1
3
3
4
4
6
8
7
10
11
11
9
5
5
2
