Strain-relieve cable to the strain-relief arm by using two cable ties to secure
the cable to the assembly. Ensure that the cable ties are seated correctly in the
provided slots.
NOTE: Alternatively, a Universal Cable Clamp (UCC) may be attached to the strain-relief arm to hold the
cable as shown in Figure 13. Follow the instructions provided with the UCC.

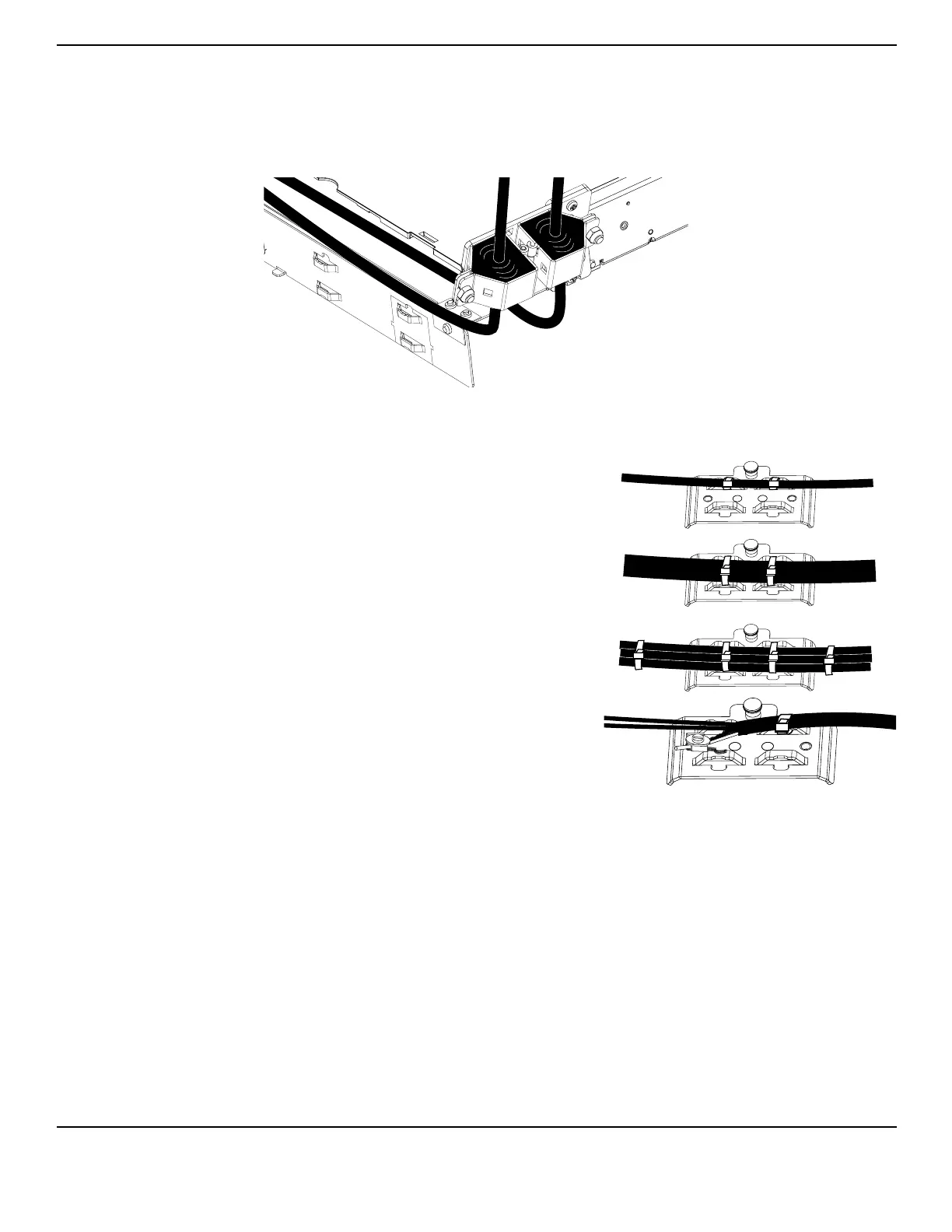

Figure 13
5.3.2
• Use two cable ties to secure
the cable to the bridges on the internal strain-relief
bracket.
• Use cables ties to secure the
cable to all four bridges on internal strain-relief bracket.
• : Bundle cables together with cable
ties. Then cable tie the bundle to the bridges on the
strain-relief bracket.
• Use one cable tie to
secure the cable to one of the bridges on the internal
strain-relief bracket. To strain-relieve the central
member, place the at washer and U-shaped washer
onto the screw. Loosely insert the screw through the
strain-relief bracket. Wrap aramid yarn around the
screw between the U-shaped washer and bracket.
Place central member between the U-shaped washer
and the at washer. Tighten the screw into the bracket.
Figure 14
TPA-3997
Rear
TPA-3877
