LEMCOM CANopen® – User manual Wiring instructions
COVAL – LMCOP-EN-A-1155UM0068 11/49
3.2 COVAL bus port

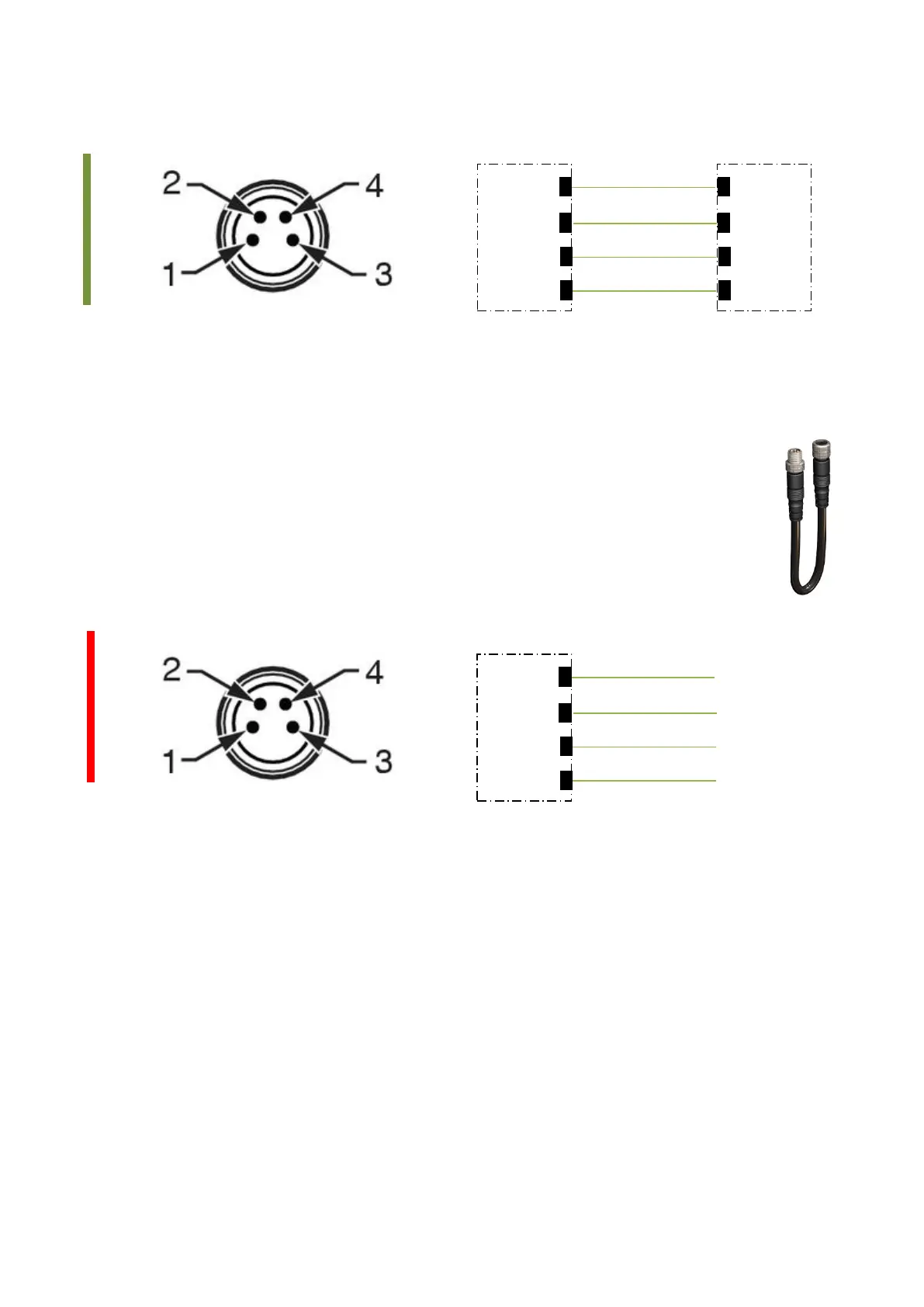

Figure 4 – Wiring instructions (M8 – COVAL bus port)
3.3 Power port
To “close” the local COVAL bus, the M8 terminator supplied with all LEMCOM islands
is used. This specific cord must be inserted between the rear connector of the island’s
last secondary module and the 24 V power cable.
It guarantees reliable exchanges on the local CAN bus (integrated 120-ohm terminal
resistor) and separates local bus lines from the power supply.
The terminator is not required if a stand-alone CANopen master module is used.
Figure 5 – Wiring instructions (M8 – Power port)
