EVOLUTION COVER page-21
DELIVERY
The following steps indicate how to handle the crate
to avoid any damage to all components. It also
shows how to unpack components.
NOTE
If you find any damage, refer to the Covana
Damaged claim form attached to the crate, take
pictures and simply refuse the delivery from the
carrier.
HANDLING
l
The forklift must have a minimal capacity of 5,000
lb. (2,268 kg) at 24" (610 mm) from the fork arm
and 96" (2.44 m) length fork see Figure 15.

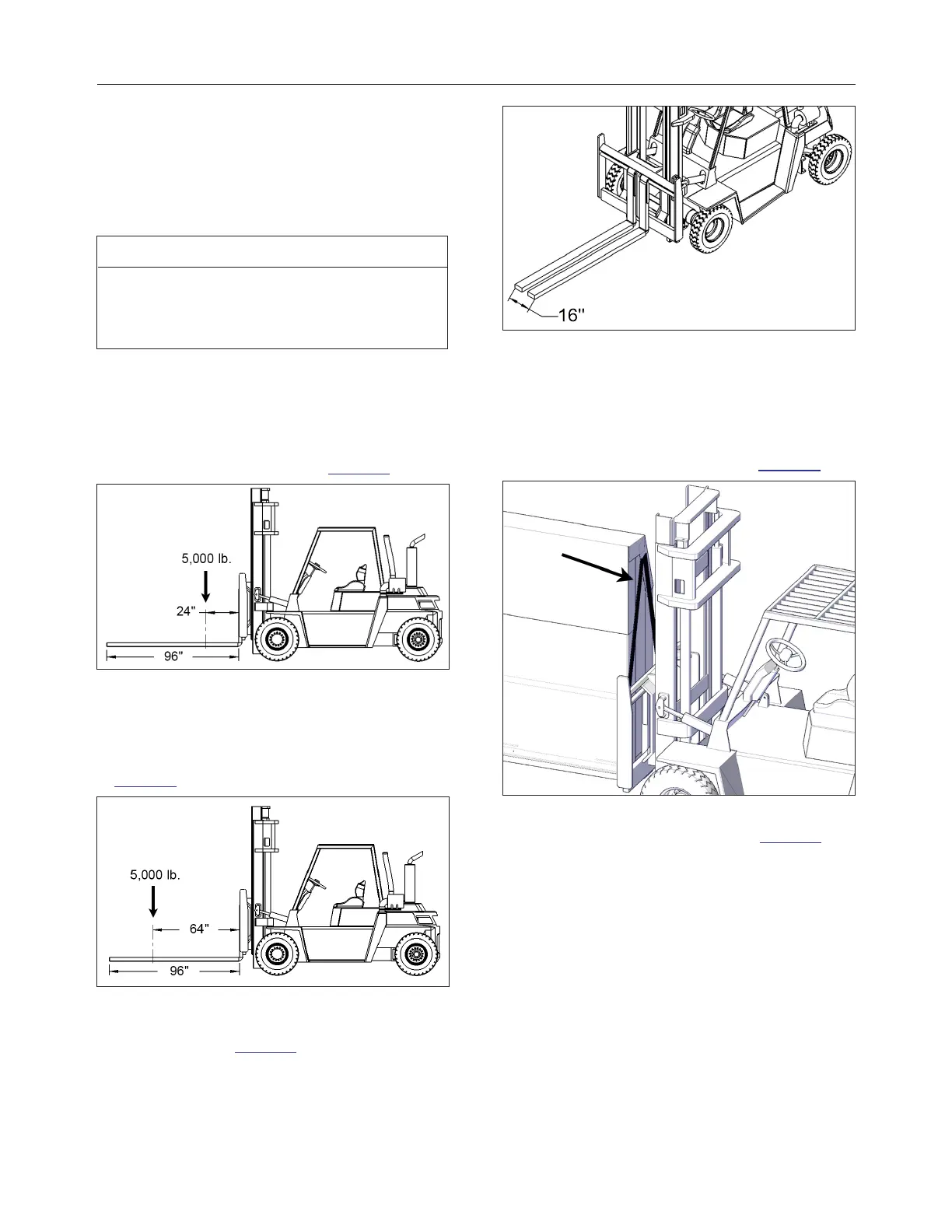

FIGURE 15: FORKLIFT MINIMAL LOAD AT 24''
OR
l
A minimal capacity of 5,000 lb. (2,268 kg) at 64"
(1.6 m) with 96" (2.44 m) extension forks see
Figure 16.
FIGURE 16: FORKLIFT MINIMAL LOAD AT 64''
The overall total grip must be 16" (432 mm) in both
previous setups see Figure 17.
FIGURE 17: FORK OVERALL GRIP
SECURE THE CRATE
Before unloading the components, for security and
safety, the crate must be secured to the forklift with
ratchet tie down straps or similar tools Figure 18.
FIGURE 18: STRAPPING GOOD PRACTICE
Do not tie from the top of the crate see Figure 19.
240799 OWNER'S MANUAL REVISION 4
