EVOLUTION COVER page-27

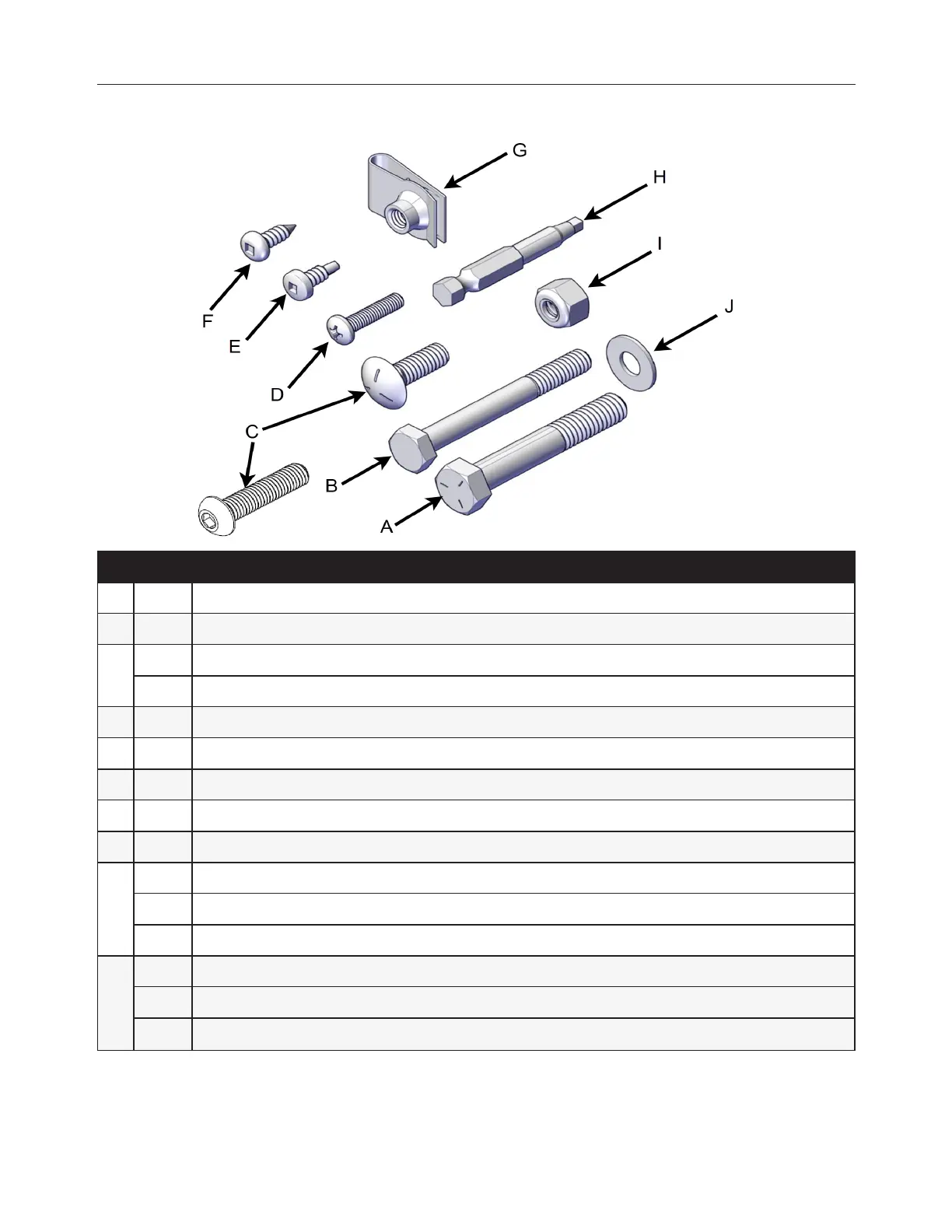

HARDWARE IDENTIFICATION TABLE
ID QTY DESCRIPTION
A 16 5/16″-18 x 2″ HEX BOLT USED TO ASSEMBLE THE LOWER FRAME
B 4 1/4″-20 x 2 1/4″ HEX BOLT USED TO ASSEMBLE THE FEET OF THE POSTS
C
4 1/4″-20 x 3/4″ CARRIAGE BOLT USED TO ASSEMBLE THE FRONT FRAME CUT-OUT
8 #10-32 x 5/8” SOCKET HD. SCREW USED TO FASTEN THE I-BEAM ASSEMBLIES
D 18 M6 x 20 mm SCREW USED TO FASTEN THE COVER AND SLEEVE
E 16 #8 x 1/2″ SELF-DRILLING SCREW TO FASTEN THE INNER SLEEVE TO THE COVER
F 24 #8 x 3/4″ SELF-DRILLING SCREW TO FASTEN THE CORNER BRACKETS
G 2 M6 CLIP-ON NUT TO SECURE THE SLEEVES ON EACH POST
H 1 #2 x 6” ROBERTSON BIT
I
8 1/4’’-20 NYLON-INSERT LOCKNUT TO FASTEN POST FEET WITH FRONT CUT-OUT
8 #10-32 HEX NUT USED FOR I-BEAM ASSEMBLIES
16 5/16″-18 NYLON-INSERT LOCKNUT USED TO CONNECT THE U-FRAMES
J
32 5/16″ NYLON WASHER USED TO CONNECT THE U-FRAMES
16 1/4″ PAINTED WASHER
4 1/4″ NYLON WASHER TO FASTEN SLEEVE BOTTOM WITH M6 X 20 mm SCREW
240799 OWNER'S MANUAL REVISION 4
