CHAIN LUBRICATION
This procedure shows how to lubricate the
transmission power chain attached to the operator.
The “Mobil Epic EP MOLY Grease” is recommended
for cold and hot climates. Ideally, a sprayable grease
or an equivalent low temperature synthetic grease.
NOTE
Two separate chains are attached to the operator
(left and right). Do not remove the U- Frame
protecting the chains.

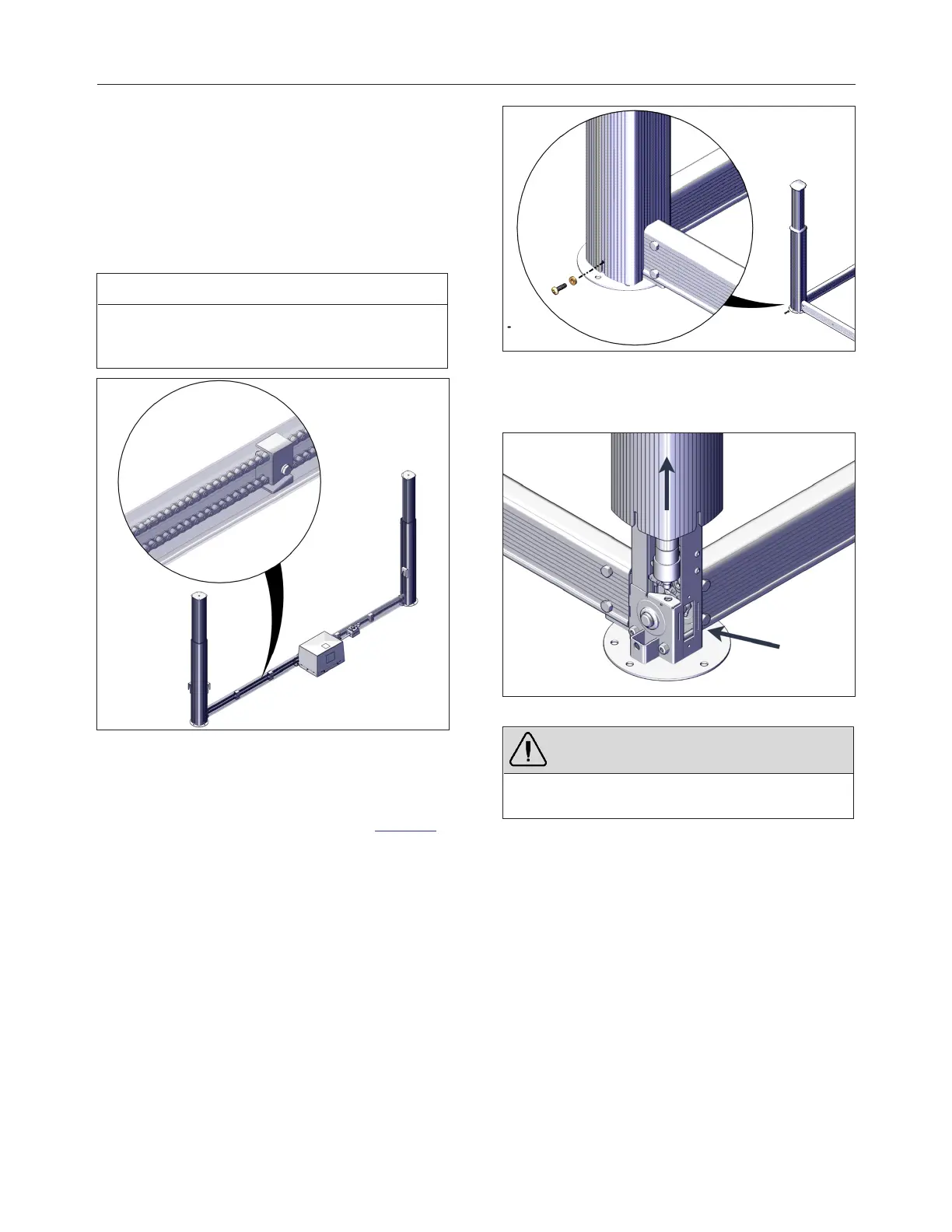

FIGURE 92: POWER TRANSMISSION CHAIN
PROCEDURE
1.
Remove the lower sleeve screw. The screw
is visible when facing the post see Figure 93.
FIGURE 93: SLEEVE BOTTOM SCREW
2.
Lift up by hand the sleeve and keep it safely in
position with a wooden block.
FIGURE 94: ACCESS TO THE CHAINS
CAUTION
If sleeve drops down, it might cause some
damage.
3.
Locate the chain inside the post. The opening
at the bottom of the post allows access to the
chain.
4.
Spray the chain lightly with grease while
another operator cycles the cover up and
down with the key switch.
5.
Lower the sleeve. Make sure the nylon
washer is outside of the sleeve. Reinstall the
screw at the bottom of the sleeve.
6.
Repeat previous steps with the opposite post.
