page-64 EVOLUTION COVER

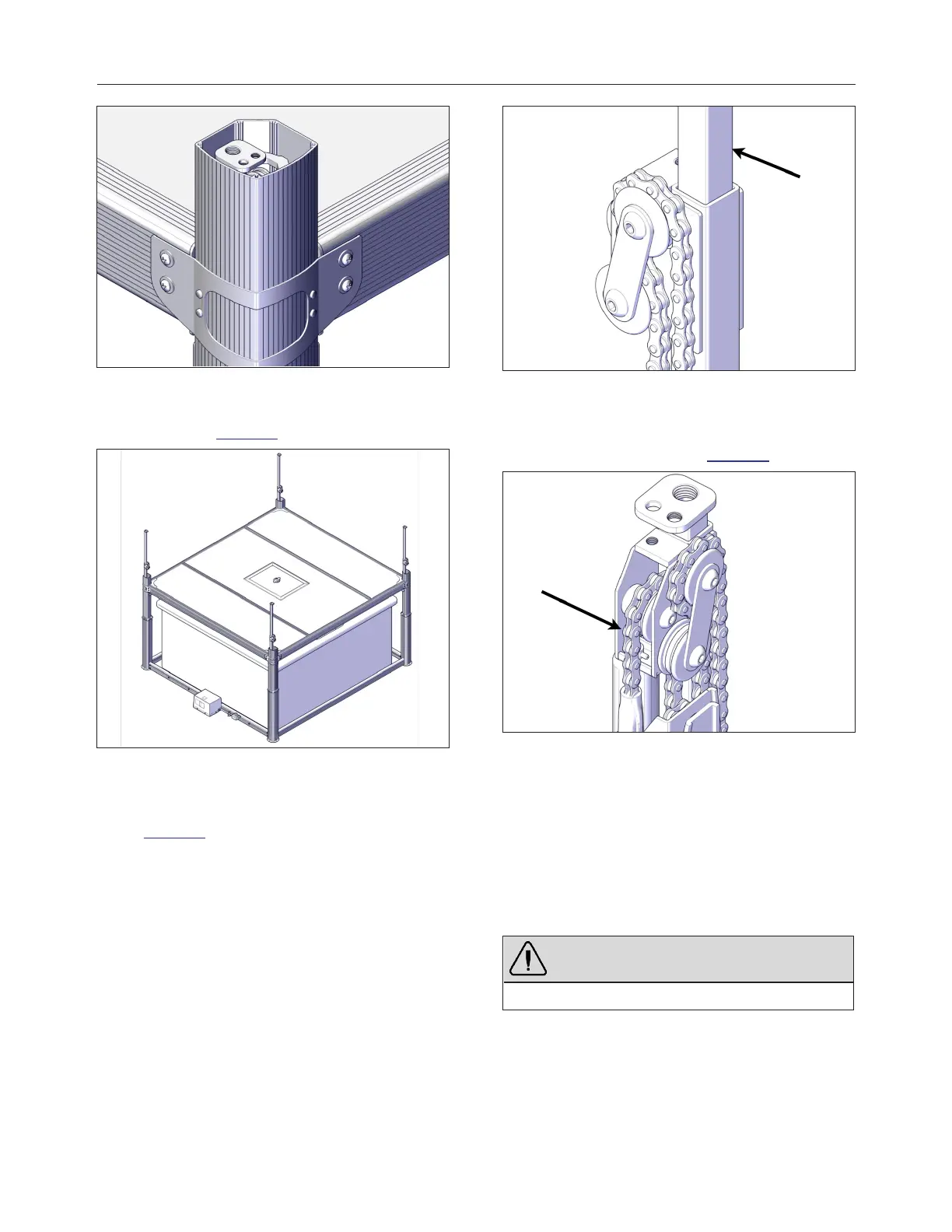

FIGURE 88: INTERNAL JACK
7.
Raise the jacks until they reach the maximum
height see Figure 89.
FIGURE 89: JACKS RAISING
8.
Spray grease on all the sliding parts and
mechanical components for all four jacks see
Figure 90.
FIGURE 90: SLIDING PARTS GREASING
9.
Inspect the chains for signs of deterioration. If
this is the case, please call your local Covana
dealer immediately see Figure 91.
FIGURE 91: JACK CHAINS
10.
Cycle the system up and down and inspect if
any further grease should be added.
11.
Lower the system completely until it stops
automatically.
12.
Reinstall the top plates with all five screws
and the hexagonal head screw on the top
plate of the post.
WARNING
Never use a power tool. It may break the screws.
13.
Reinstall the rubber cap on top of the post.
14.
Repeat previous steps for all posts.
240799 OWNER'S MANUAL REVISION 4
