page-48 EVOLUTION COVER
GROUNDING AND POWER SUPPLY CONNECTIONS
1.
Remove the screws (4) on the bottom side of the operator cover and remove the cover see Figure 79.
2.
For the complete wiring diagrams refer to section Electrical diagrams (North American models and
European models).

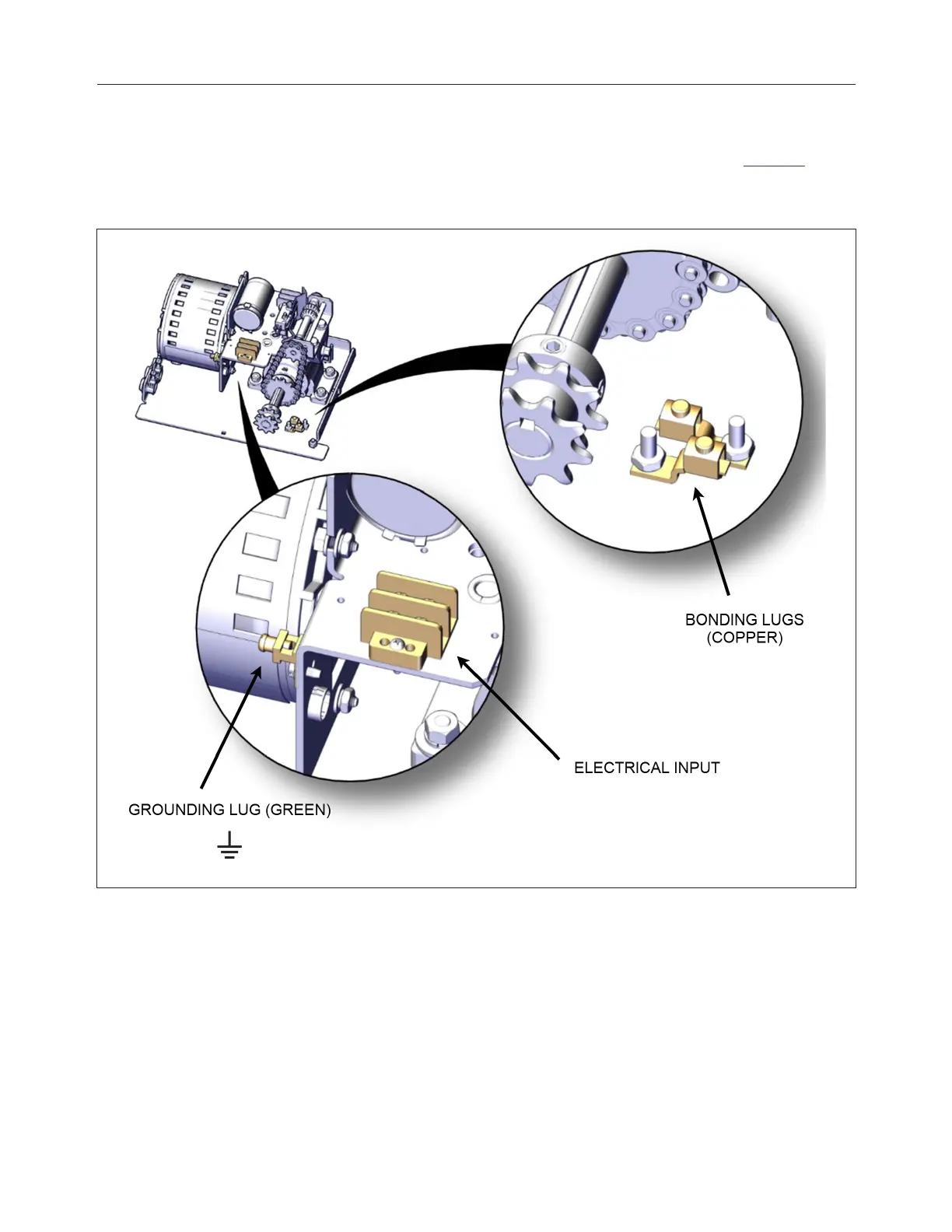

FIGURE 78: POWER SUPPLY CONNECTIONS
240799 OWNER'S MANUAL REVISION 4
