Covidien Force FX - Monopolar Cut Graphs

Output Power vs. Resistance Graphs
3-34 Force FX Electrosurgical Generator C Service Manual
Monopolar Cut Graphs
These measurements were taken using short (< 0.5 meter) leads.
Low Cut Mode

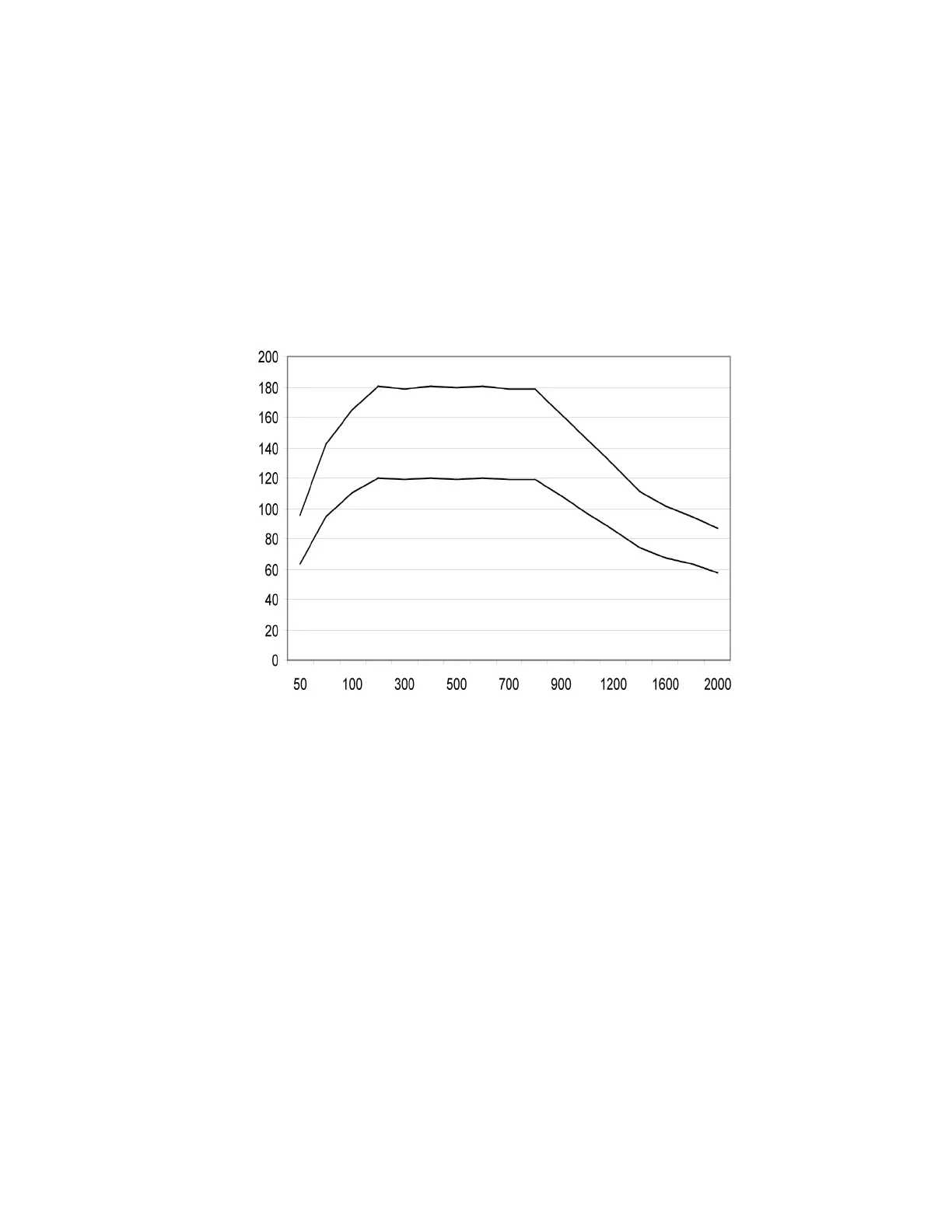

Output power vs. impedance for Low cut 150W mode
Load Resistance (ohms)
Output Power (watts)
