Output Power vs. Resistance Graphs
Technical Specifications
Force FX Electrosurgical Generator C Service Manual 3-43

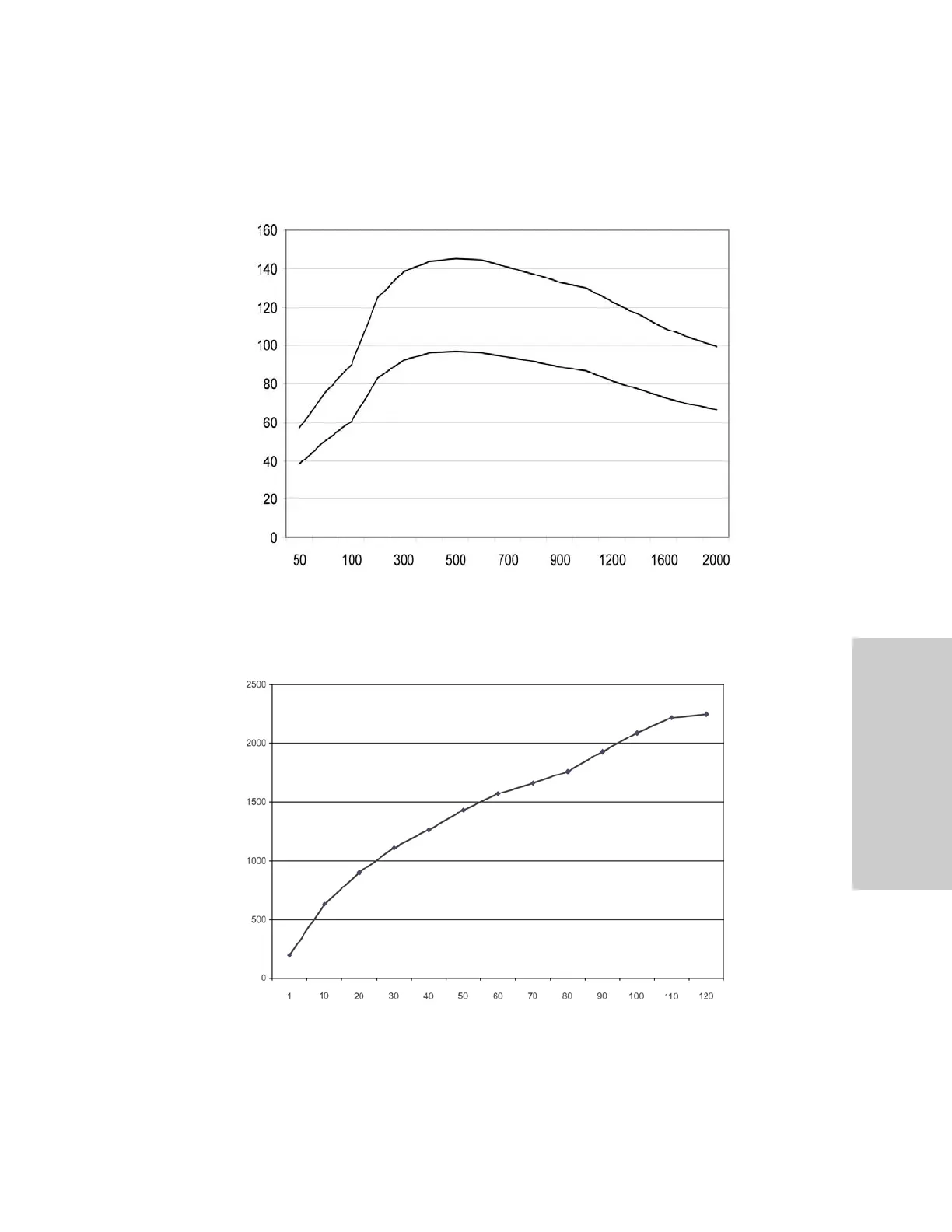

Output power vs. impedance for Desiccate coag 120W mode
Open circuit peak voltage vs. output power for Desiccate coag mode
Load Resistance (ohms)
Output Power (watts)
Output Power (watts)
