REFRIGERANT RECOVERY
DO NOT CONNECT SERVICE HOSES TO REFRIGERANT SOURCE UNTIL INSTRUCTED TO DO SO.
The RECOVERY process pulls refrigerant into a distillation chamber which has a coil that is heated by compressor outlet gas.
This distills the refrigerant (turns it to gas) and separates liquids and debris from the refrigerant. Refrigerant then passes
through the distillation chamber and compressor and is condensed into a liquid before coming to rest in the internal (included
30 Lb) storage tank.
Refrigerant recovery automatically ends when the machine detects that the vehicle’s system is void of refrigerant.
The color display will show the amount (weight) of refrigerant that has been recovered. This information may be printed by
touching on the Home Screen.
REFRIGERANT RECOVERY
(Not All Screens Are Shown)

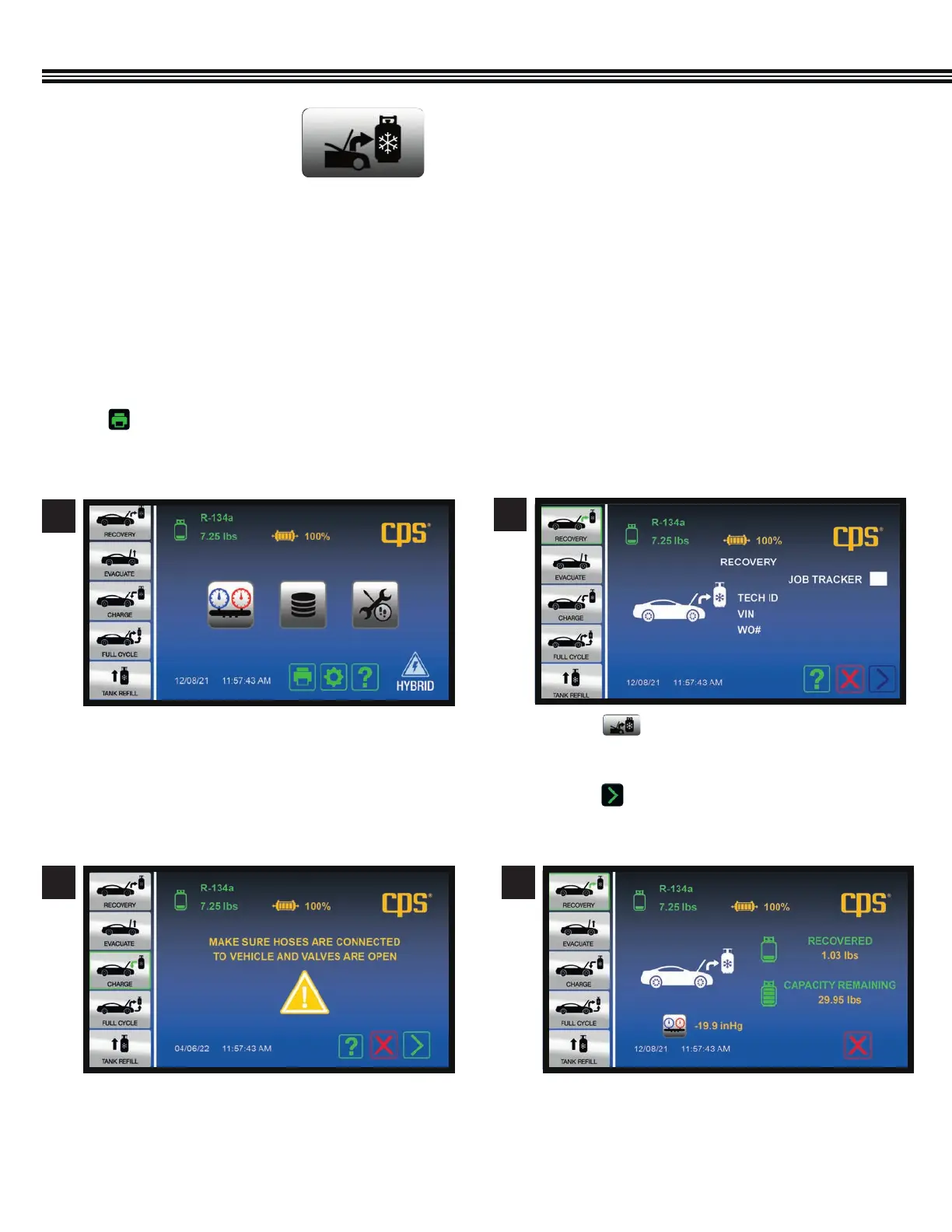

a. Before opening the vehicles’ AC system for repair,
first Recover & Recycle refrigerant from the AC
system.
a. Touch .
b. Touch Job Tracker white box for Job Info to appear
on reports.
c. Touch to move to next screen.
1
2
a. Following Refrigerant Identification process,
CONNECT service hoses, make sure VALVES are open.
3
a. Screen displays weight of refrigerant RECOVERED
and REMAINING TANK WEIGHT CAPACITY.
4
