FOLLOW DIRECTIONS ON SCREEN AND DO NOT OPEN COUPLE OR TANK VALVE UNTIL SCREEN SHOWS TO OPEN BOTH
It is suggested that at least 4.5 lbs (2 kg) of refrigerant be available in the storage tank to begin any operation. If less is
observed, choose this operation to add refrigerant to the internal tank. This operation transfers refrigerant in the liquid state to
the internal storage tank. The Refrigerant amount transferred in this mode is not counted toward the filter life.
CAUTION: If hoses were connected before instructed, the machine will post a warning and instruct that the couplers be
closed and the hoses removed. Not doing so will result in refrigerant loss (at the user’s expense).
FOLLOW DIRECTIONS ON SCREEN AND DO NOT OPEN COUPLER OR TANK VALVE UNTIL SCREEN SHOWS TO OPEN BOTH.
IF YOU FAIL TO OPEN TANK, START OVER.
REFRIGERANT TANK REFILL
a. Touch to add refrigerant to the MX134 Tank.
FAILURE TO OPEN TANK VALVES WHEN INSTRUCTED
WILL RESULT IN HAVING TO START OVER FROM
BEGINNING
a. Connect High Side Service Hose to Supply Tank.
b. Touch and follow the on screen instructions.
a. Start with hoses disconnected and couplers
closed.
b. Touch and follow the on screen instructions.
a. Invert the Supply Tank (source of refrigerant for
the MX134 tank) so that a liquid transfer can
occur.
1
3
2
4

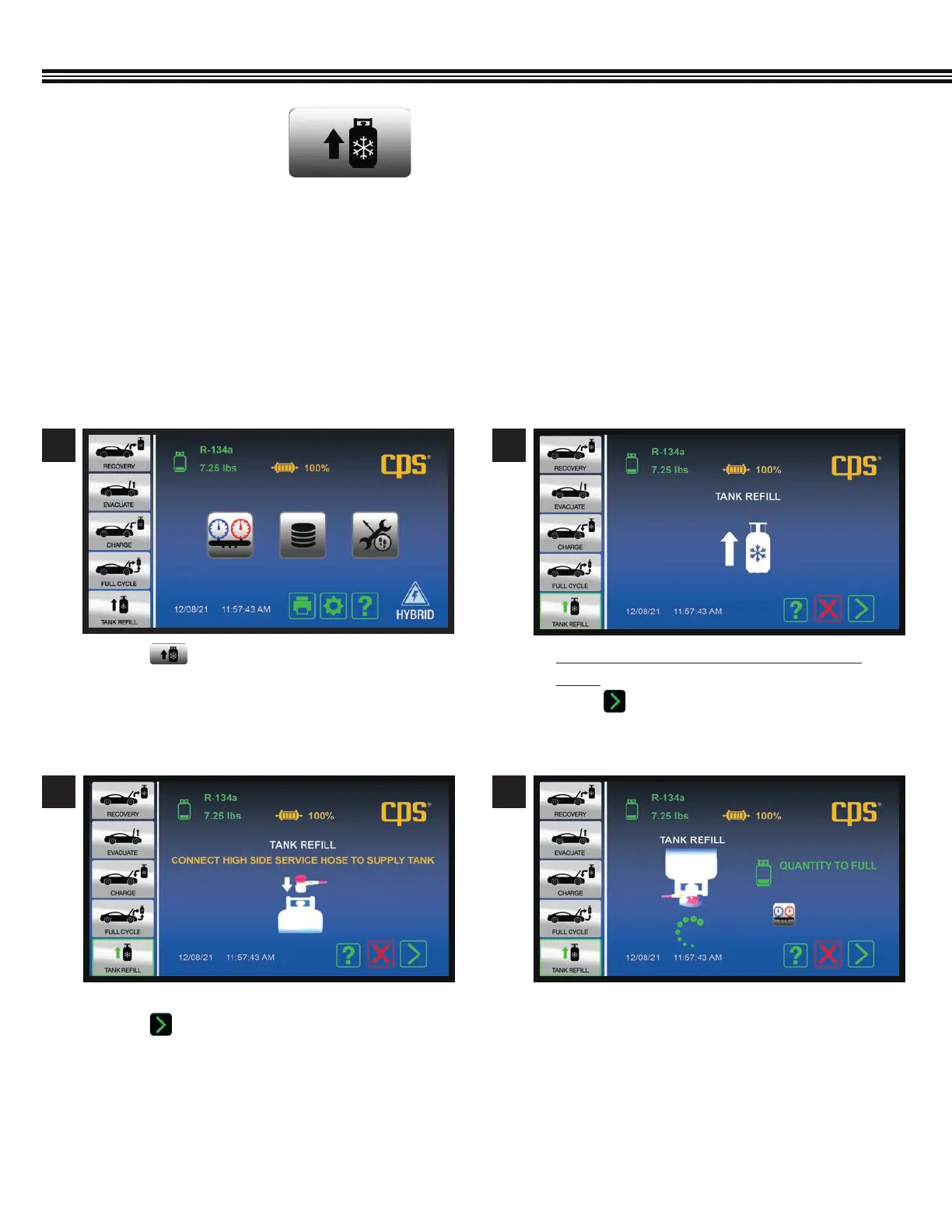

REFRIGERANT TANK REFILL
(Not All Screens Are Shown)
Tank Refill
Tank Refill
Home Screen
Tank Refill
To Next Page
