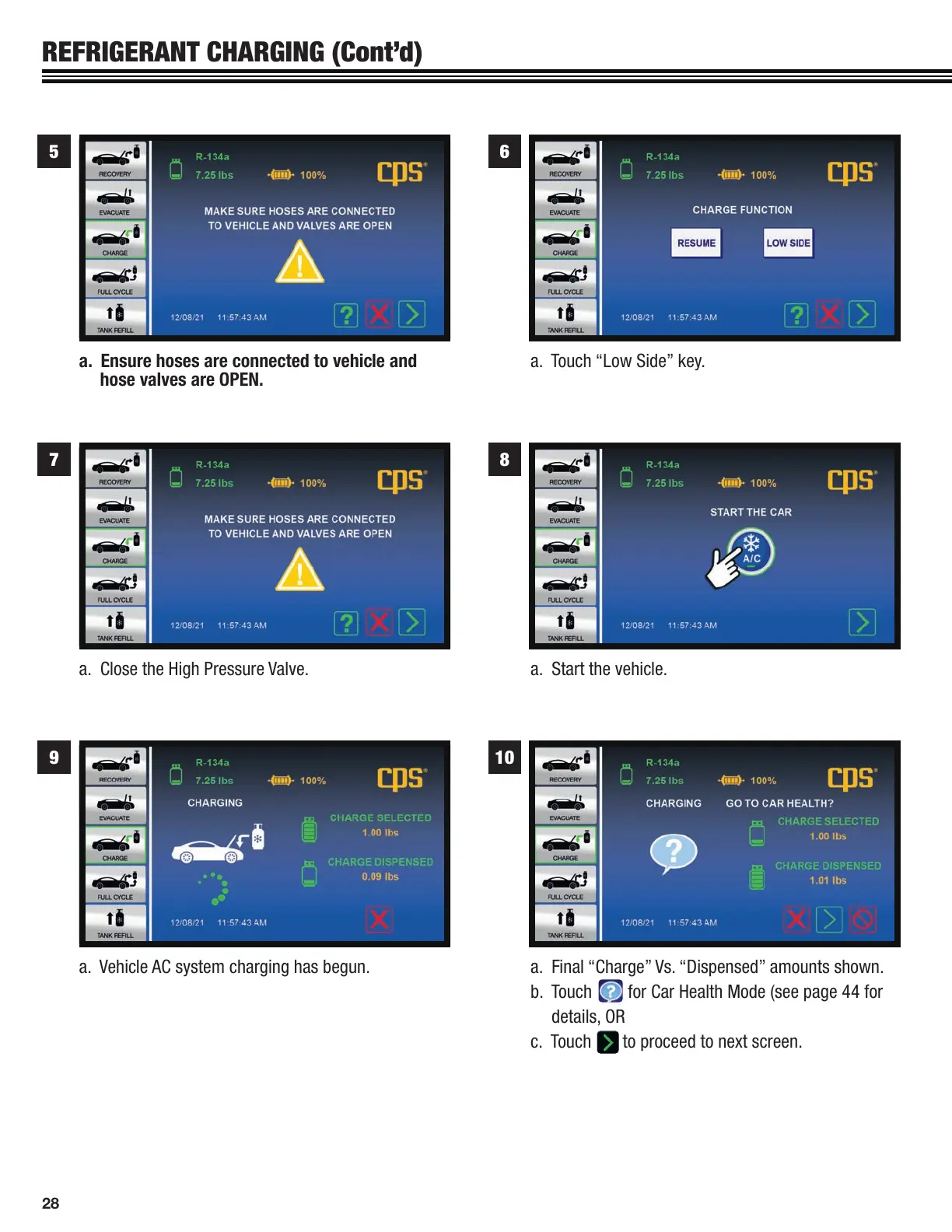

REFRIGERANT CHARGING (Cont’d)
a. Ensure hoses are connected to vehicle and
hose valves are OPEN.
a. Touch “Low Side” key.
5 6
a. Close the High Pressure Valve. a. Start the vehicle.
7 8
a. Vehicle AC system charging has begun. a. Final “Charge” Vs. “Dispensed” amounts shown.
b. Touch for Car Health Mode (see page 44 for
details, OR
c. Touch to proceed to next screen.
9 10
To Next Page
