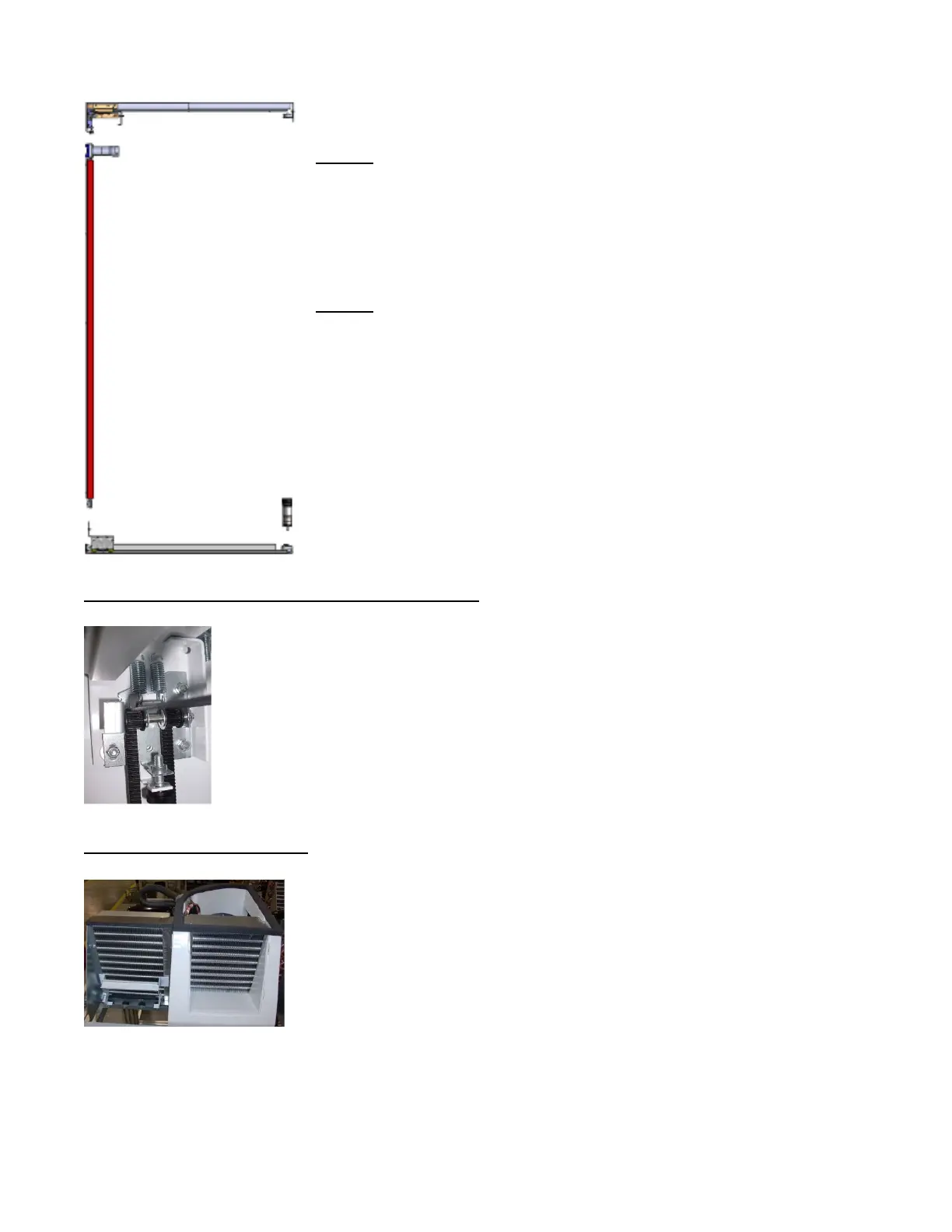

X AXIS
The X Axis runs horizontally or left to right. The X Axis assembly is Cabinet
mounted to prevent any Cabinet torque and has one belt to synchronize the top
and bottom when the XY Assembly moves left or right. A top channel is used to
contain and hide the e-chain and wiring. The X Brushless 3 Phase DC Motor has
an encoder for positioning and is driven by an independent X Motor Board.
Y AXIS
The Y Axis runs vertically or up and down and has the Delivery (Picker) Cup
assembly attached. A Y Belt Cover is used to contain and hide the e-chain and
wiring. The Y Brushless 3 Phase DC Motor has an encoder for positioning and is
driven by independent Y Motor Board.
BELT TENSION ADJUSTMENT COMPONENTS
The Belt Tensioning Adjustment components have been revised to ease adjusting belts
when needed. The X Belt Idler Tensioning Assembly in the upper left hand corner of cabinet
now includes a thumb screw. Adjustments should only be needed if a belt is replaced.
The Bottom X Drive Tensioner Assembly in the lower right hand corner of cabinet has a
plastic spring loaded tensioning wheel to keep the belt against the pulley when moving and
does not require any adjustments.
REFRIGERATION SYSTEM
The Refrigeration System is a single piece unit and is hermetically sealed. The
Model BevMax 4 5800-4/3800-4 Refrigeration Units consist of a Super 1/3
horsepower Compressor, with a single fin and tube style condensing unit with one
Condenser Fan, Condensation overflow Pan with Soakers, Evaporator, and
Evaporator Fan. The Refrigeration Unit is located behind the Refrigeration Unit
cover panels, mounted in the bottom of the Machine. This unit is designed for
easy removal and replacement from the front of the Vender as a complete
assembly. An electronic Encapsulated Temperature Sensor regulates the Machine
temperature. The probe of the Temperature Sensor is attached to the Evaporator
Coils and reads the temperature of air being pulled in to the Evaporator Coil.
