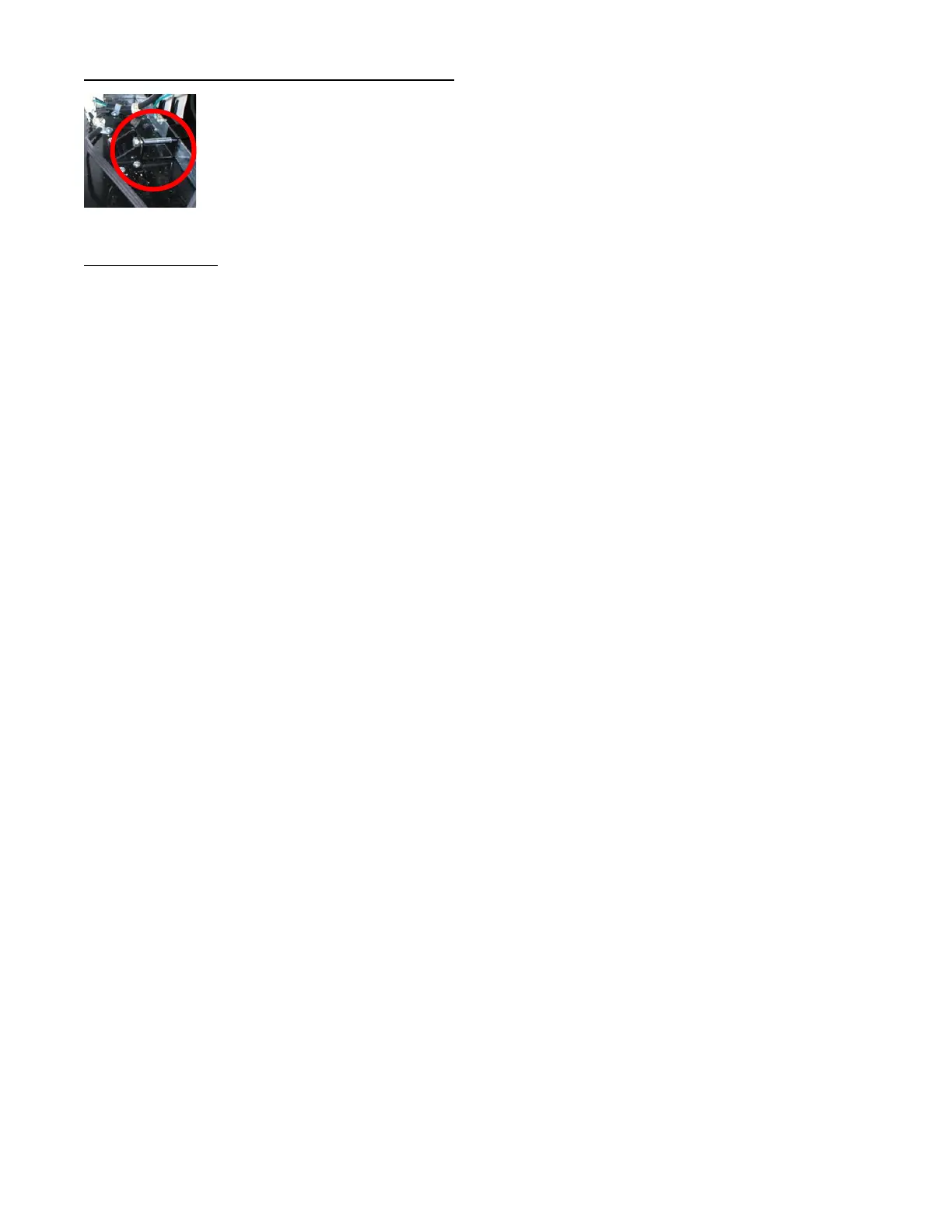

REFRIGERATION DECK CLAMP ASSEMBLY
The Refrigeration Deck Clamp assembly is located on the left side of the Cabinet base plate. Its
purpose is to secure the Refrigeration assembly tight against the vertical base plate for
refrigerated air flow in to the Cabinet. A 7/16” wrench or socket is needed to adjust the bolt.
The Refrigeration Unit also has a locating pin on the bottom of the Refrigeration Unit base plate
to ensure alignment for Refrigeration gasket seal to the vertical base plate.
WIRING notes:
The Vender wire harnessing has been reduced and is less complex. This improves wire routing
on the Service Door and the Service and Refrigerated Compartments of the Machine.
Simplified Harnessing to all 5 Cabinet Peripheral Control Boards with easily identified color coding.
• RS 485 Communication Harness A common signal line – white wire
• RS 485 Communication Harness B common signal line – blue wire
• 24VDC Harness – red/green wire
• 24VDC Harness – Red, Red/Blue, & Red/Black wires
• 24VDC Switched to Vertical Lights = Red/White wire
• 5VDC Harness – yellow wire
• 3.3VDC Encapsulated Temp. Sensor = Violet wire
• Ground Harness – black wire
• X Home Switch = Orange wire
• Dongle Harness will be used to set programming methods.
