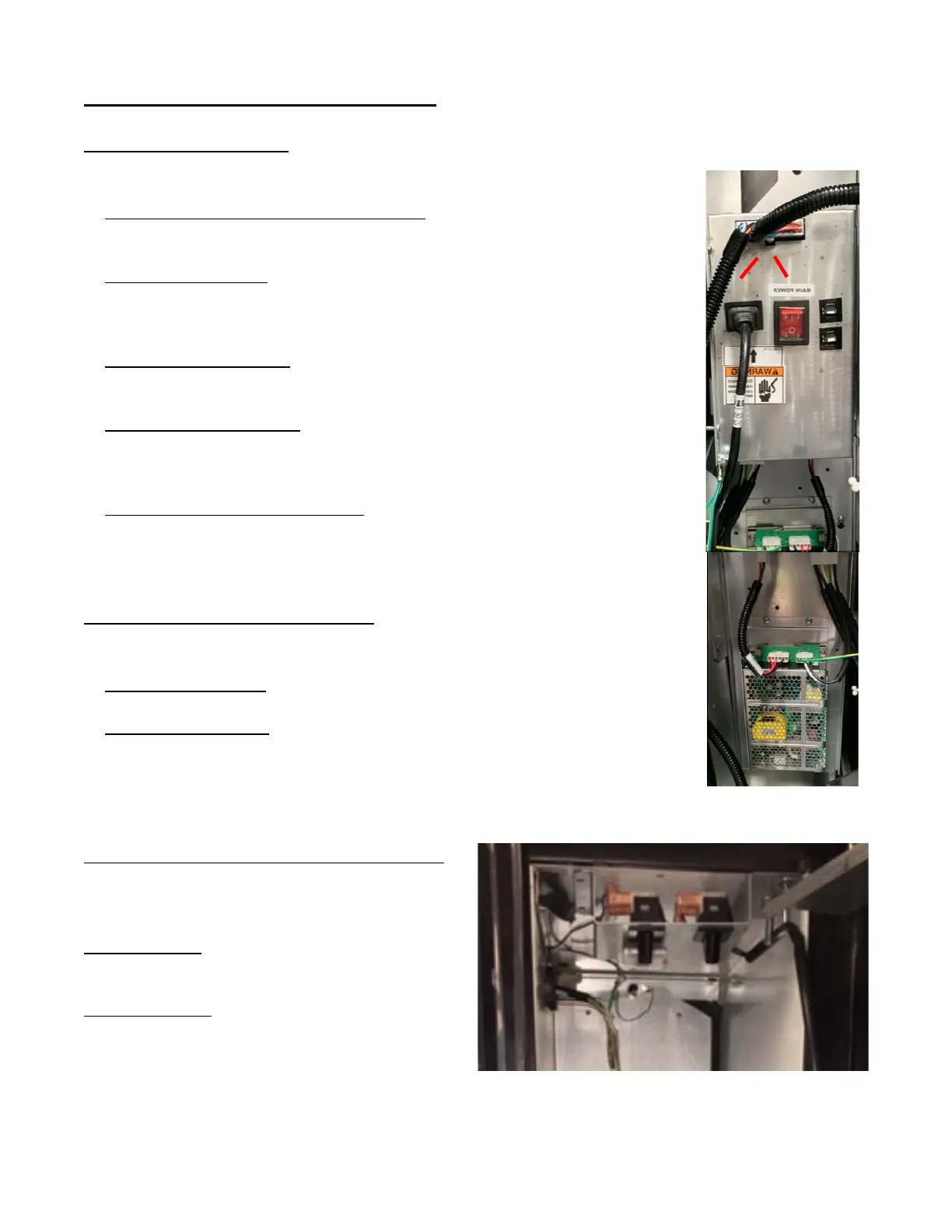

Major Component Description
AC DISTRIBUTION BOX
BevMax Refresh 4 5800-4/3800-4
120 VAC and 230VAC Machines
Main Power Switch or Power Supply Cord (A)
• Interrupts hot and neutral side of incoming AC Power to all components in
Machine from the electrical outlet.
8 Pin JST Connector (B)
• Provides AC power in to the Omron Power Supply, Evaporator Fan, and
Refrigeration Unit (includes Condenser Fan and Defrost Control) from the AC
Distribution Box.
4 Pin Molex Connector (C)
• Provides 24VDC in to AC Distribution Box Environmental Board from the Omron
Power Supply.
24 Pin Molex Connector (D)
• Provides 24VDC out to the VMC, it distributes 24VDC to the Port Board, 24VDC
and 5VDC to the Cup Motor Board, X Motor Board, Y Motor Board, and 3.3VDC
to the Encapsulated Temp Sensor.
3 Amp 24VDC Circuit Breakers (2) (E)
• Protect the 24VDC from the Power Supply. The Top Breaker is for Cabinet Power
(Port/Cup/Motor Control Boards) and the Bottom Breaker is for the Door Power
(VMC/MDB/Coin Mech/Top Cabinet Light).
Omron Power Supply 24V 150W
BevMax Refresh 4 5800-4/3800-4
120 VAC and 230VAC Machines
5 Pin JST Connector (F)
• Provides AC power in to the Power Supply from the AC Distribution Box.
6 Pin JST Connector (G)
• Provides 24VDC out to AC Distribution Box Cabinet Environmental Board from
the Power Supply.
Door Switch Bracket Assembly Switches
BevMax Refresh 4 5800-4/3800-4
120 VAC and 230VAC Machines
Left Door Switch (Motor Power Interrupt Switch)
3 Amp/24VDC – in XY Motor Circuits, Port Door Motor
Circuit, and Picker Motor Circuit.
Right Door Switch (Door Service Switch)
3 Amp/24VDC – in the VMC Service Switch input
Circuit.
