2020 BevMax Refresh 4 VMC
BevMax Refresh 4 Classic 5800-4/3800-4
BevMax Refresh 4 Classic 5800-E4/3800-E4
Part # 400069

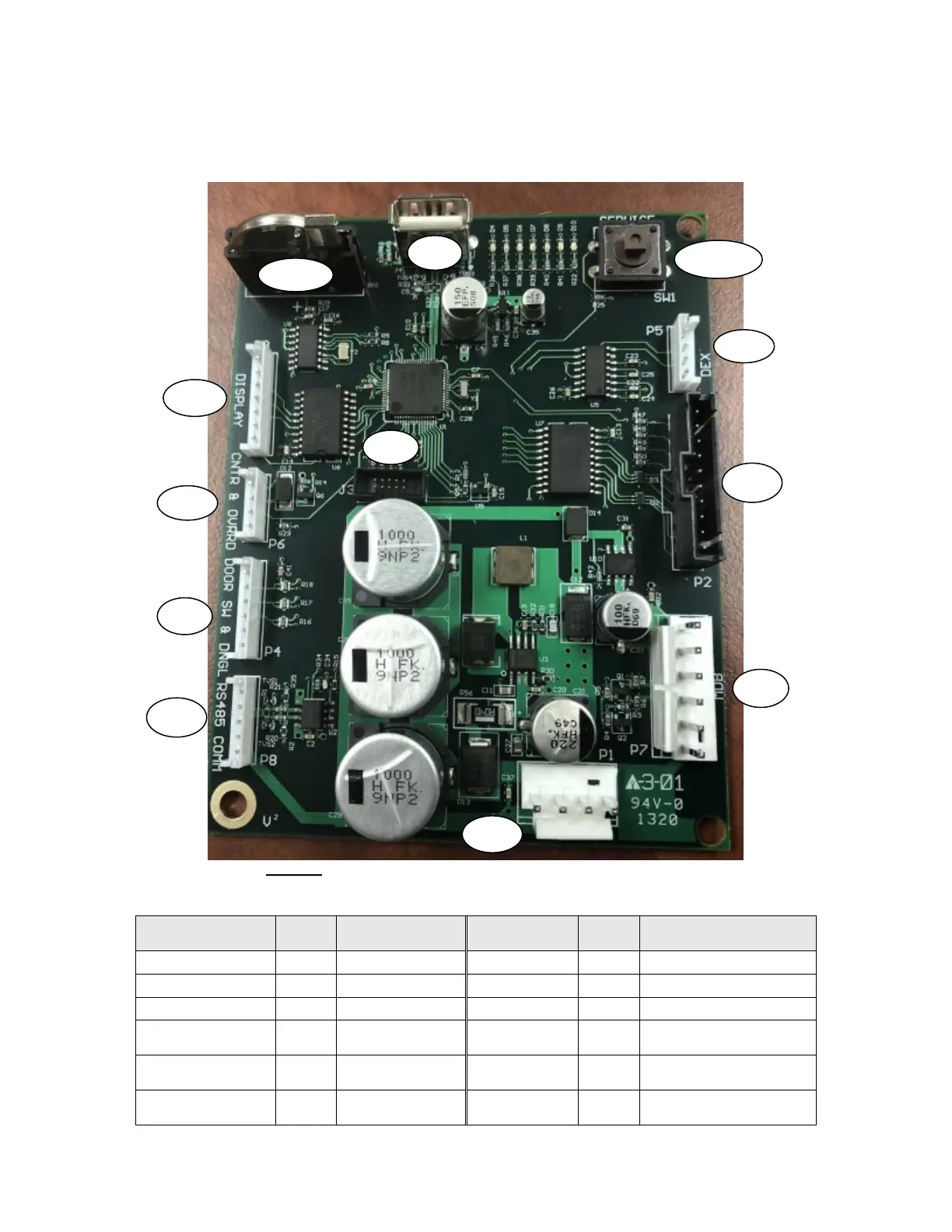

2020 BevMax Refresh 4 Classic VMC (400069) Connections
CONNECTION
BevMax 4
# of
Pins
DESCRIPTION
CONNECTION
BevMax 4
# of
Pins
DESCRIPTION
J4 - USB Port SW1 - Service Switch
BH1 - Battery P5 4 DEX
P3 7 Display P2 10 Keypad
P6 4
Electronic Counter
& Override Switch
P7 6 MDB
P4 6
Door Switch &
Dongle Harness
P1 4
Power from AC Distribution
Box
P8 5 RS 485 Comm J3 10
Supplier Programming
Connector
P1
J3
P4
J4
BH1
P3
P8
P2
P5
P6
P7
SW1
