MANUAL T-HANDLE LOCK
Open the Service Door on the right side using the Key provided in the coin return cup, or if shipped with a locking
clip, remove the clip and install the lock. Ensure there is no power to the AC Distribution Box. On Venders with a
main power switch on the AC Distribution Box the switch needs to be in the OFF position. On Venders with a main
power quick disconnect plug on the AC Distribution Box the quick disconnect plug needs to be unplugged. Check
that all connectors are firmly seated on the Vending Machine Control Board (VMC) and at the various Cabinet
Peripheral Control Boards:
• Environmental Board
o Refrigeration control
o Lighting control
• Port Board
o Port Motor
o Port Product Sensor
• Cup Motor Board
o Cup Motor
o Cup Product Sensor
• X Motor Board
o X Motor
• Y Motor Board
o Y Motor
R
etrieve the main power plug from the hole in the rear of the Vender and plug the cord in a properly grounded
120VAC, 15 Amp receptacle (U.S. and Canada). Open the Service Door and apply power to the AC Distribution
Box (if equipped with a Bill Acceptor, the Acceptor should cycle twice). The Display on the door will briefly show
the software version in use as “Software ###.## (i.e. 006r00) followed by the model number followed by the
default idle message “ENJOY A REFRESHING DRINK”, the LED Light Assemblies should be lit and the cooling unit
should start. If the Display shows “OUT OF SERVICE”, or the cooling unit fails to start, refer to the
TROUBLESHOOTING SECTION of this guide.
SERVICE NOTE

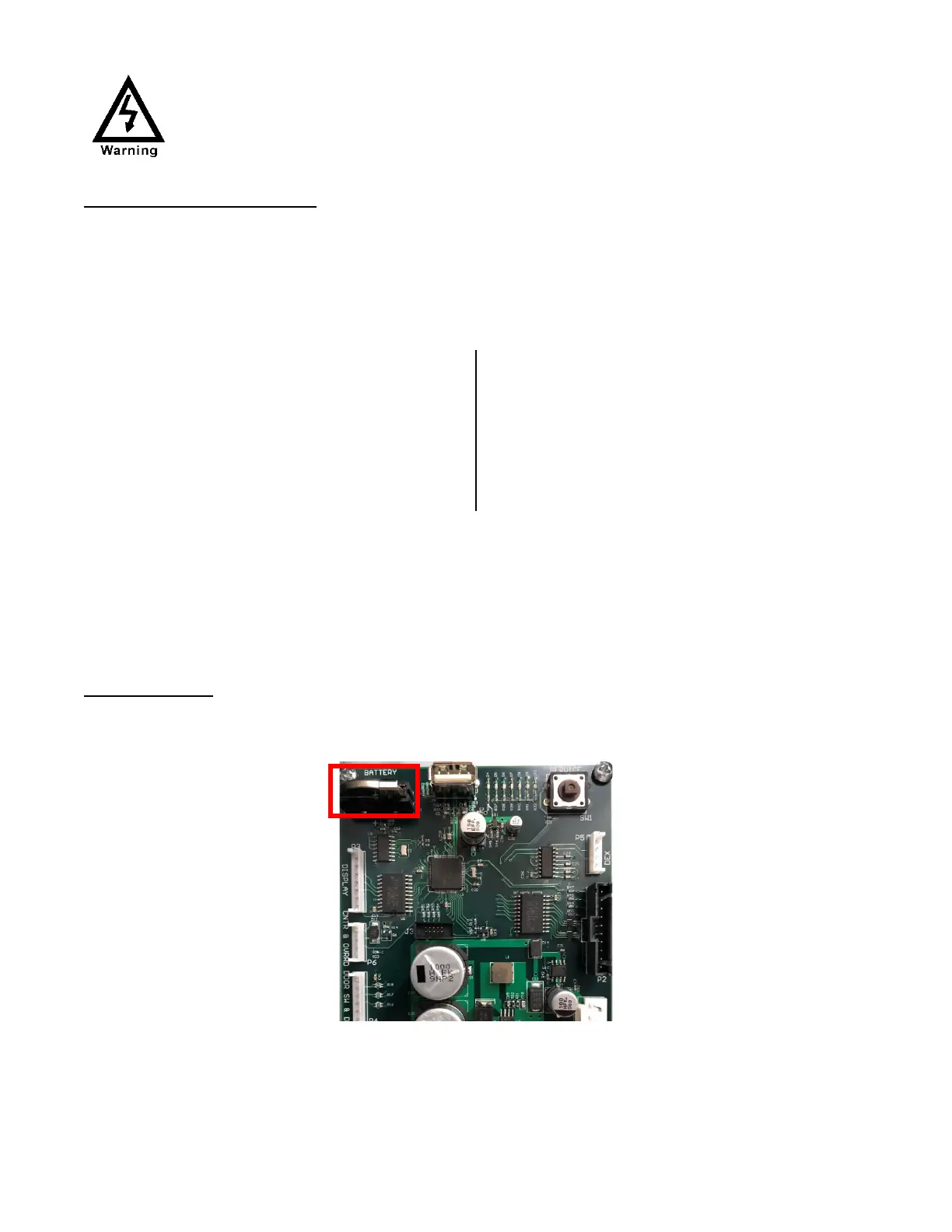

Battery Backup
The battery backup located on the VMC is used to maintain the date and time in case of power interruptions or
any time the main power is off.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY SUBJECT THE USER TO THE RISK OF
INJURY OR ELECTRICAL SHOCK WHICH CAN BE SERIOUS OR FATAL. PERIODICALLY INSPECT THE
POWER SUPPLY CORD FOR DAMAGE. IF THE CORD BECOMES DAMAGED IT MUST BE REPLACED
WITH THE SAME SIZE AND TYPE CORD. CONTACT CRANE MERCHANDISING SYSTEMS FOR
